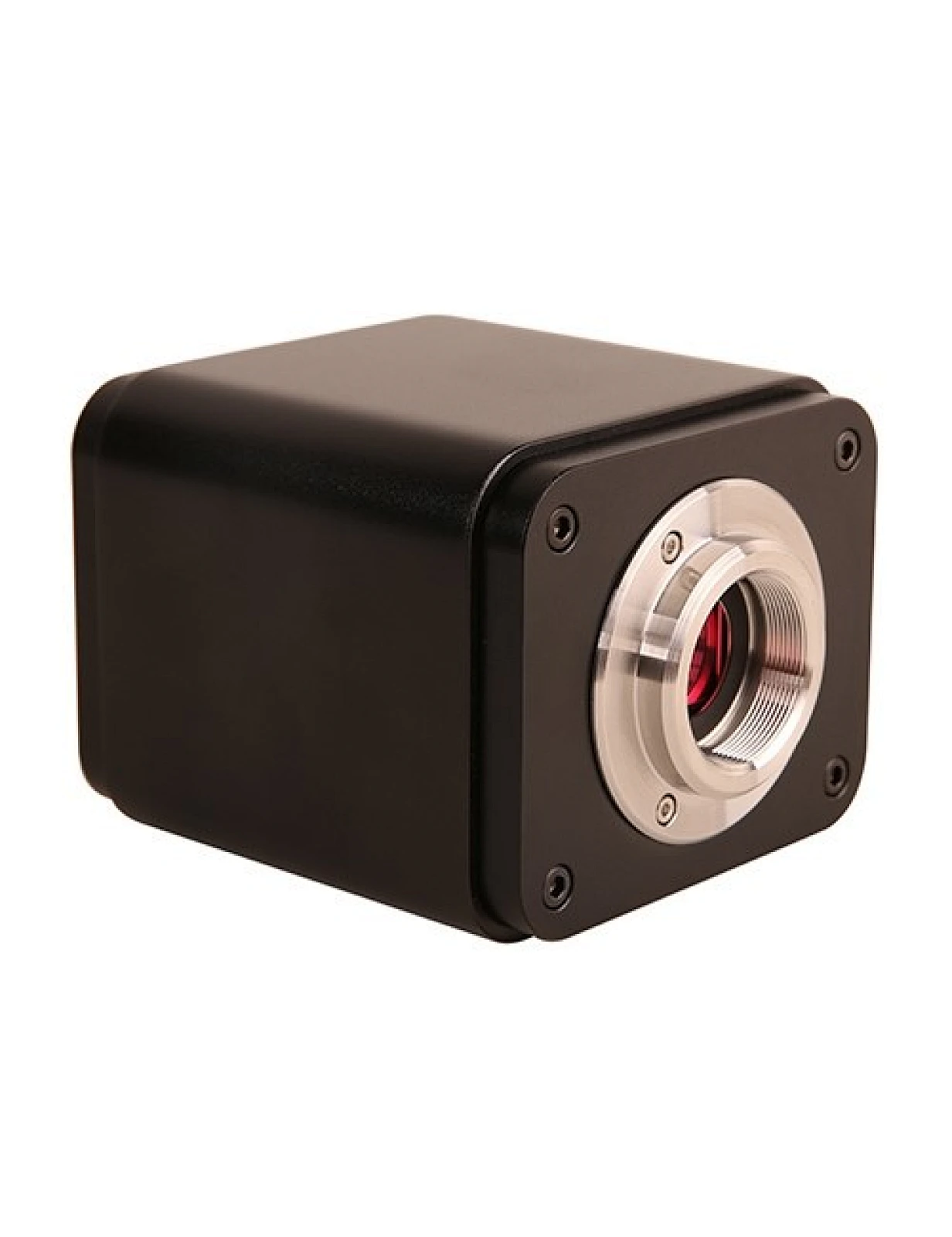

C-mount HDMI+USB Output CMOS Camera
BHC4-1080P Series
This camera provides high-quality image capture with both HDMI and USB outputs. It's perfect for industrial, medical, and scientific applications.
Quantity
C-mount HDMI+USB Output CMOS Camera
BHC4-1080P Series Camera’s Basic Characteristic
BHC4-1080P series camera is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony IMX385 or 415 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI dsiplayer, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView.
The included Windows software ImageView offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection.
For Mac and Linux, there is a lite version of the software ImageView which can capture video and still images, and includes limited processing features.
TheBHC4-1080P series camera’s basic characteristic is as follows:
*All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
*Simultaneous HDMI & USB output;
*Built-in mouse control;
*Built-in image capture & video record to SD card;
*Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color
adjustment, sharpness and denoising control;
*Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
*Built-in image & video browsing, display & play;
*Ultra-Fine color engine with perfect color reproduction capability(USB2.0);
*Support standard UVC for Windows/Linux/Mac(USB);
*With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
*With Lite version software to control the camera and capture video or still images, which includes limited processing features;
*CNC precision machining shell.
Application
The possible applications of BHC4-1080P series camera are as follows:
*Scientific research, education (teaching, demonstration and academic exchanges);
*Digital laboratory, medical research;
*Industrial visual (PCB examination, IC quality control);
*Medical treatment (pathological observation);
*Food (microbial colony observation and counting);
*Aerospace, military (high sophisticated weapons).
BHC4-1080P series camera Datasheet
Dimension of BHC4-1080P Series Camera
Company Pictures
Certificates
Why Choose Us
Payment & Delivery
BHC4-1080P Series Camera’s Basic Characteristic
BHC4-1080P series camera is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony IMX385 or 415 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI dsiplayer, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView.
The included Windows software ImageView offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection.
For Mac and Linux, there is a lite version of the software ImageView which can capture video and still images, and includes limited processing features.
TheBHC4-1080P series camera’s basic characteristic is as follows:
*All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
*Simultaneous HDMI & USB output;
*Built-in mouse control;
*Built-in image capture & video record to SD card;
*Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color
adjustment, sharpness and denoising control;
*Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
*Built-in image & video browsing, display & play;
*Ultra-Fine color engine with perfect color reproduction capability(USB2.0);
*Support standard UVC for Windows/Linux/Mac(USB);
*With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
*With Lite version software to control the camera and capture video or still images, which includes limited processing features;
*CNC precision machining shell.
Application
The possible applications of BHC4-1080P series camera are as follows:
*Scientific research, education (teaching, demonstration and academic exchanges);
*Digital laboratory, medical research;
*Industrial visual (PCB examination, IC quality control);
*Medical treatment (pathological observation);
*Food (microbial colony observation and counting);
*Aerospace, military (high sophisticated weapons).
BHC4-1080P series camera Datasheet
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
RM2540 BHC4-1080P2MPA | Sony IMX385(C) 1/2"(7.2x4.05) | 3.75x3.75 | 1175mv with 1/30s 0.15mv with 1/30s | 60@1920*1080(HDMI) 50@1920*1080(USB) | 1x1 | 0.04~1000 |
RM2541 BHC4-1080P8MPB | Sony IMX415(C) 1/2.8"(5.57x3.13) | 1.45x1.45 | 300mv with 1/30s 0.13mv with 1/30s | 30@1920*1080(HDMI) 30@3840*2160(USB) | 1x1 | 0.04~1000 |
| Interface | Function Description |
| USB Mouse | Connect USB mouse for easy operation with embedded XCamView software; |
| USB Video | Connect PC or other host device to realize video image transmission; |
| HDMI | Comply with HDMI1.4 standard. 1080P format video output for standard displayer; |
| DC12V | Power adapter connection (12V/1A); |
| SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images storage; |
| LED | LED status indicator; |
| ON/OFF | Power switch; |
| Video Output Interface | Function Description |
| HDMI Interface | Comply with HDMI1.4 standard; 60fps@1080P; |
| USB Video Interface | Connecting USB port of PC for video transfer ; MJPEG format video; |
| Function Name | Function Description |
| Video Saving | Video format: 1920*1080 H264/H265 encoded MP4 file; Video saving frame rate: 60fps(BHC4-1080P2MPA); 30fps(BHC4-1080P8MPB) |
| Image Capture | 2M (1920*2160, BHC4-1080P2MPA) JPEG/TIFF image in SD card ; 8M (3840*2160, BHC4-1080P8MPB) JPEG/TIFF image in SD card ; |
| Measurement Saving | Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode. |
| ISP Function | Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
| Image Operations | Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function |
| Embedded RTC(Optional) | To support accurate time on board |
| Restore Factory Settings | Restore camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian |
| Software Environment under USB Video Output | |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Ethernet Port: RJ45 Ethernet Port Display:19” or Larger CD-ROM |
| Operating Environment | |
| Operating Temperature (in Centidegree) | -10°~ 50° |
| Storage Temperature (in Centidegree) | -20°~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/1A Adapter |
Dimension of BHC4-1080P Series Camera
