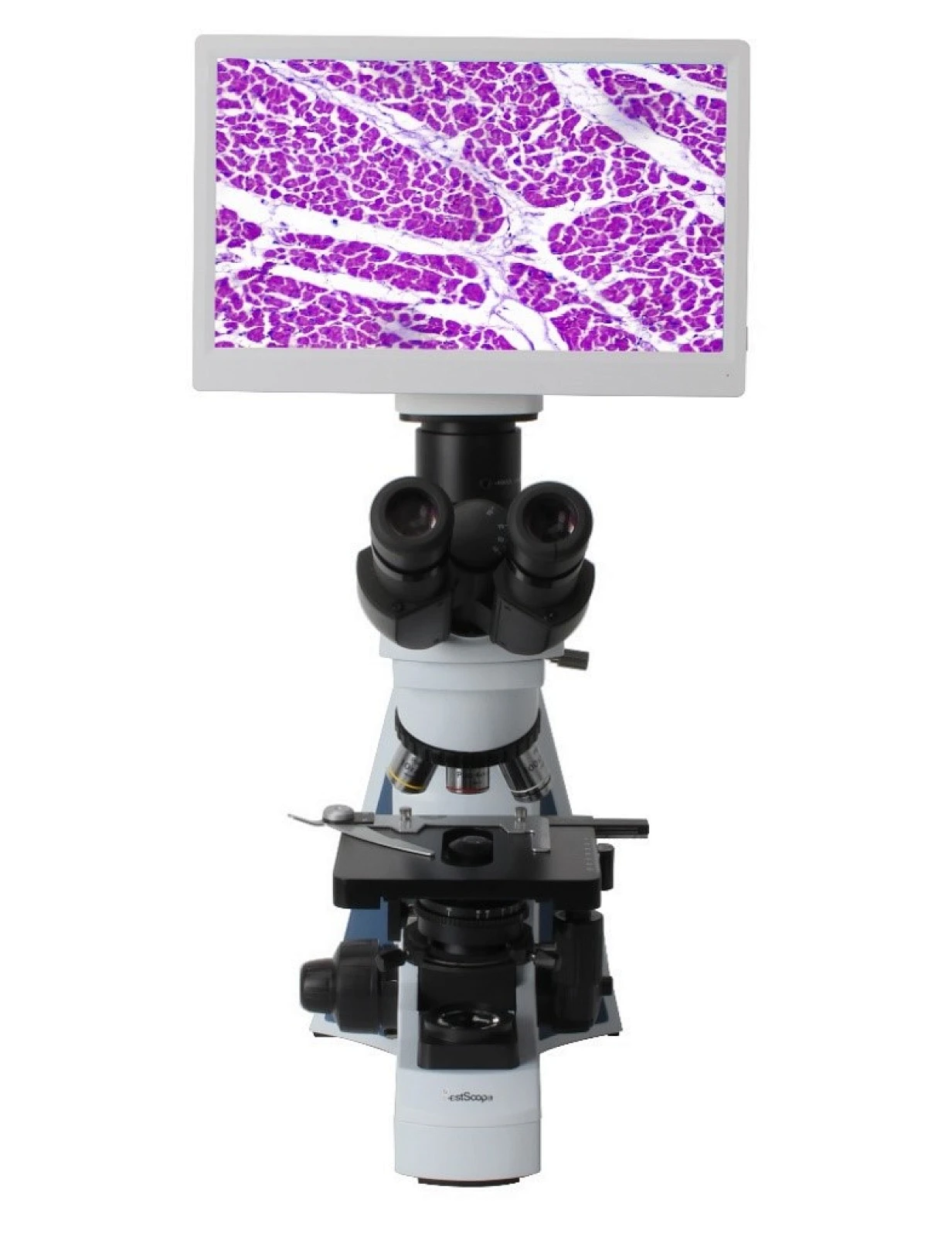

BLM2-241 not only feature HD LCD display to reverting genuine photo and video, but also feature quick and easy snapshots, short videos and measurement. It has integrated magnification, digital enlarge, imaging display, photo and video capture&storage on the SD card, it also can be connected to PC via USB2.0 cable and control by software.
Feature1. Infinite optical system and high quality 10×/22mm eyepiece and infinite plan achromatic objectives.
2. 6.0 megapixel HDMI digital camera, images and videos can be easily stored on the SD card without computers, can improve the efficiency of research and analysis, the camera has measurement functions.
3. 11.6-inch HD digital LCD screen, high definition and high quality images, easy for people to share.
4. LED lighting system, long working life and save energy.
5. Two types of observation modes: binocular eyepiece and LCD screen, can meet different needs.
ApplicationBLM2-241 LCD digital microscope is an ideal instrument in biological, pathological, histological, hematological, bacterial, immune, pharmacological and genetic fields. It can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
|Digital Parts||Camera Model||BLC-600 Plus||●|
|Sensor||Sony IMX307 CMOS Sensor||●|
|Photo Resolution||6.0 Mega Pixel (3264 × 1840)||●|
|Sensor Size||1/2.8 Inches||●|
|Pixel Size||2.8um × 2.8um||●|
|LCD Screen||11.6 Inches HD LCD Screen, Resolution is 1920 × 1080||●|
|Data Output||USB2.0, HDMI||●|
|Storage||SD Card (8G)||●|
|Exposure time||0.001 sec ~ 10.0 sec||●|
|Exposure Mode||Automatic & Manual||●|
|Packing Dimension||305mm×205mm×120mm, 3kgs||●|
|Optical Parts||Viewing Head||Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, Light distribution: 100: 0 and 50:50(eyepiece: trinocular tube), 30mm tube||●|
|Eyepiece||Wide Field Eyepiece WF10×/22mm||●|
|Wide Field Eyepiece WF15×/16mm, WF20×/12mm||○|
|Eyepiece micrometer 0.1mm (only can be used with 10× eyepiece)||○|
|Objective||Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100×||●|
|Infinite Plan Achromatic Objectives 2×, 20×, 60×||○|
|Nosepiece||Backward Quadruple Nosepiece||●|
|Backward Quintuple Nosepiece||○|
|Stage||Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm||●|
|Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm||○|
|Condenser||Sliding-in Centerable Condenser NA1.25||●|
|Swing-out Condenser NA 0.9/ 0.25||○|
|Dark Field Condenser NA 0.7-0.9 (Dry, used for objectives except 100×)||○|
|Dark Field Condenser NA 1.25-1.36 (Oil, used for 100× objectives)||○|
|Focusing System||Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm||●|
|Illumination||1W S-LED Lamp, Brightness Adjustable||●|
|6V/20W Halogen Lamp, Brightness Adjustable||○|
|Other accessories||Simple Polarizing Set (Polarizer and Analyzer)||○|
|Phase Contrast Kit BPHE-1 (Infinite Plan 10×, 20×, 40×, 100× phase contrast objective)||○|
|Video Adapter||0.5× C-mount||●|
|Packing||1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg||●|
