Basic Student Biological Microscope

Model NO. BS-2010

BS-2010 series biological microscopes are more comfortable and reliable operation with modern design. These microscopes are economical microscope with all basic features for educational use in elementary and middle school.

Quantity

Contact Now add to cart

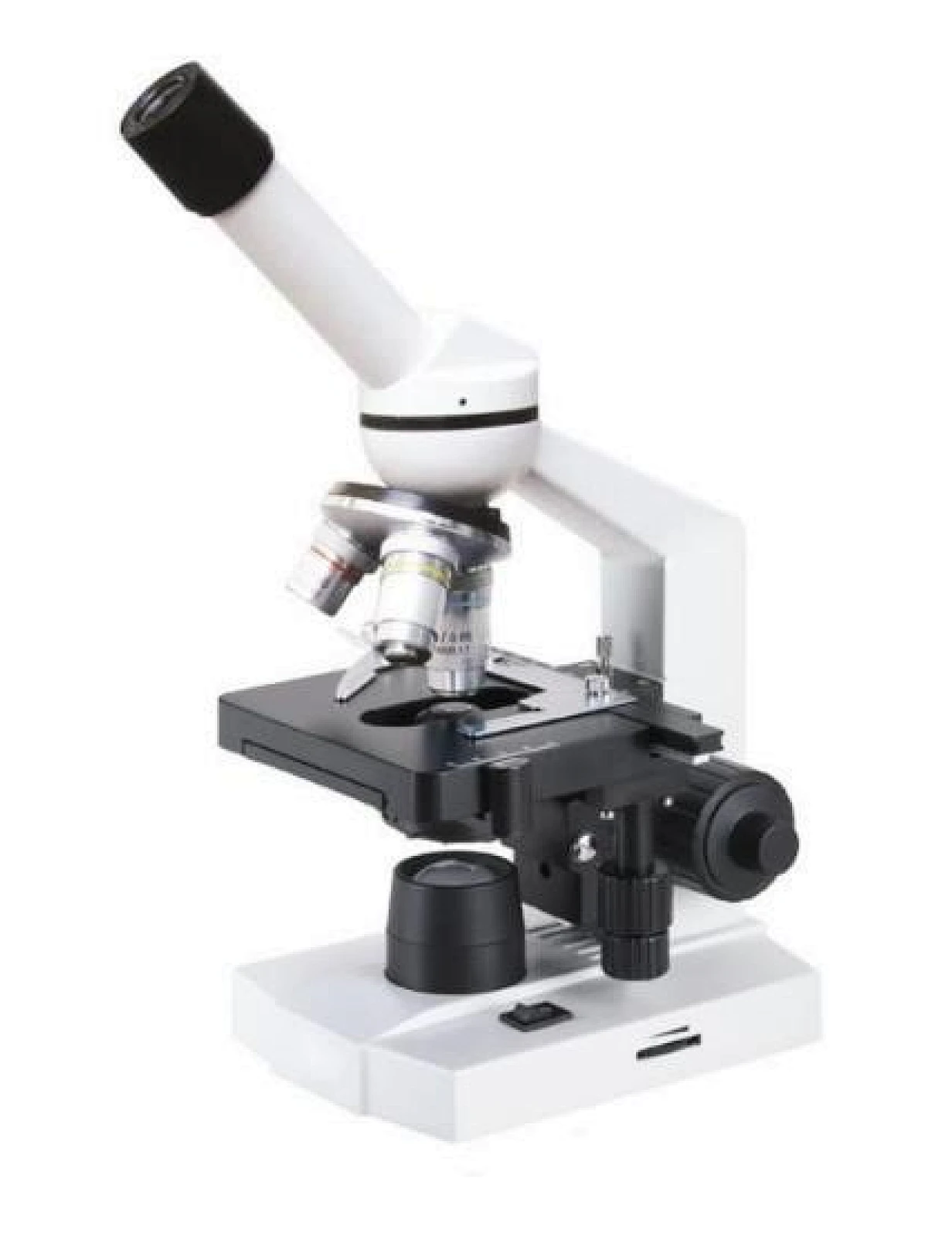

Basic Student Biological Microscope

Introduction

BS-2010 series biological microscopes are more comfortable and reliable operation with modern design. These microscopes are economic microscope with all basic features for educational use in elementary and middle school.

Features

1. More comfortable and reliable operation with modern design.
2. Affordable price with reliable performance, long working life.
3. Smart and occupy small space.

Applications

These microscopes are economical microscope with all basic features for educational use in elementary and middle schools.


Specifications

Item	Specification	RM1210 BS-2010D	RM1211 BS-2010E
Viewing Head	Monocular, Inclined at 45°, 360° Rotatable	●
	Sliding Binocular Head, Inclined at 45°, 360° Rotatable, 55-75mm		●
Eyepiece	WF10×/18mm	●	●
	WF5×/20mm, WF16×/11mm, WF25×/8mm	○	○
	WF10×/18mm with Pointer	○	○
Nosepiece	Triple Nosepiece	●
	Quadruple Nosepiece		●
Objective	Achromatic Objective 4×, 10×, 40×(S)	●	●
	Achromatic Objective 20×, 60×	○	○
	Achromatic Objective 100×	○	●
Stage	Plain Stage with Slide Clips 110×120mm
	Plain Stage with Attachable Mechanical ruler 110×120mm/ 60×30mm
	Double Layers Mechanical Stage 110×120mm/ 70×20mm	●	●
Focusing	Coaxial Coarse and Fine Adjustment, Moving Range 10mm	●	●
Condenser	Single Lens NA 0.65 with Iris Diaphragm
	Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Spiral Adjustment for Condenser
	Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser	●	●
Illumination	1W LED Illumination, Brightness Adjustable	●	●
	Mirror	○	○
Spare Parts	Dust Cover	●	●
Package	Styrofoam & Carton, Dimension 28×20×40 cm, 4kg	●	●
	Wooden Case & Carton, Aluminum Case & Carton	○	○
Power Supply	AC100-220V power adapter, microscope input voltage 5V	●	●

Note: ● Standard Outfit, ○ Optional
