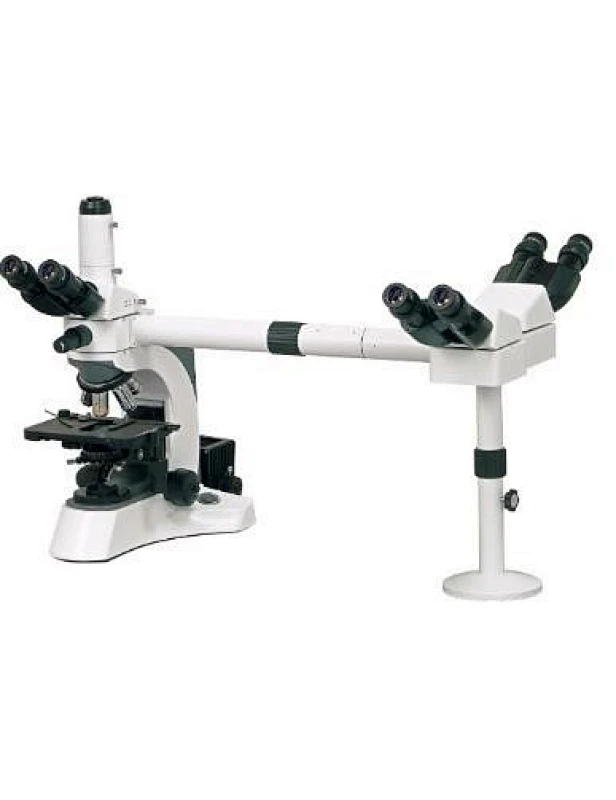

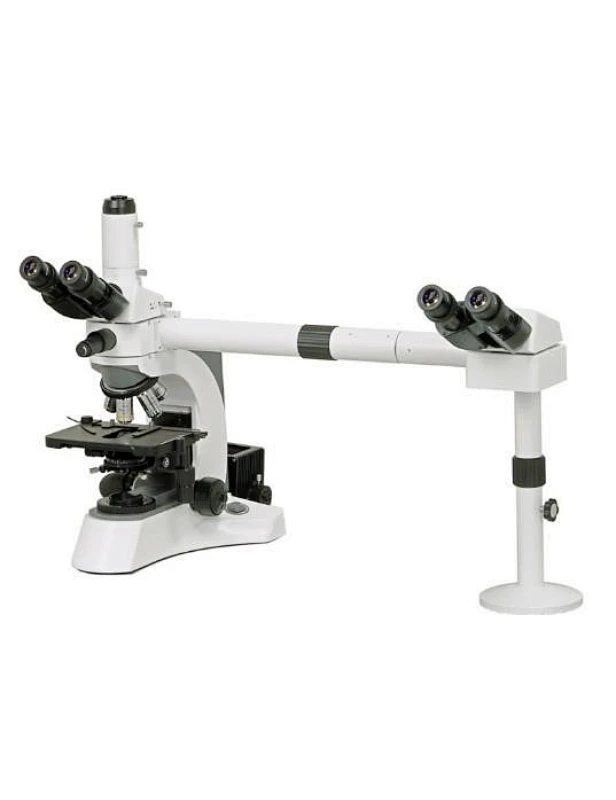

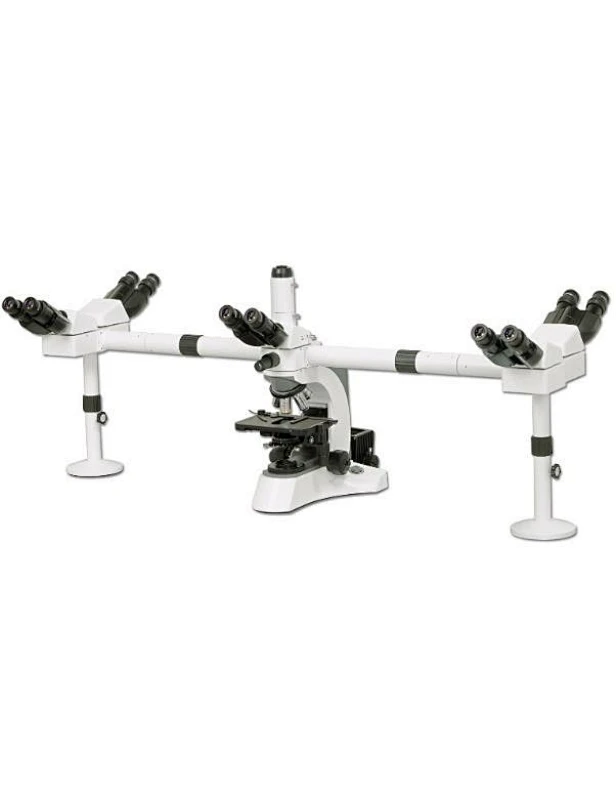

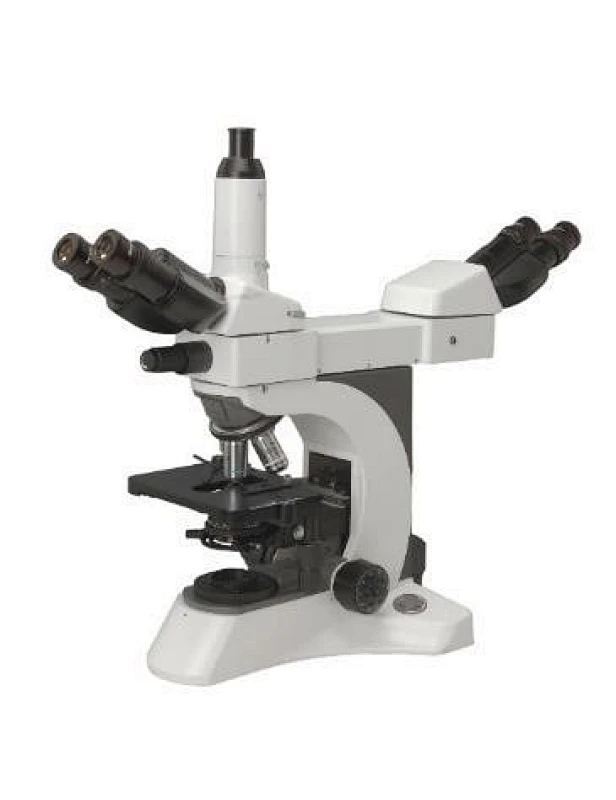

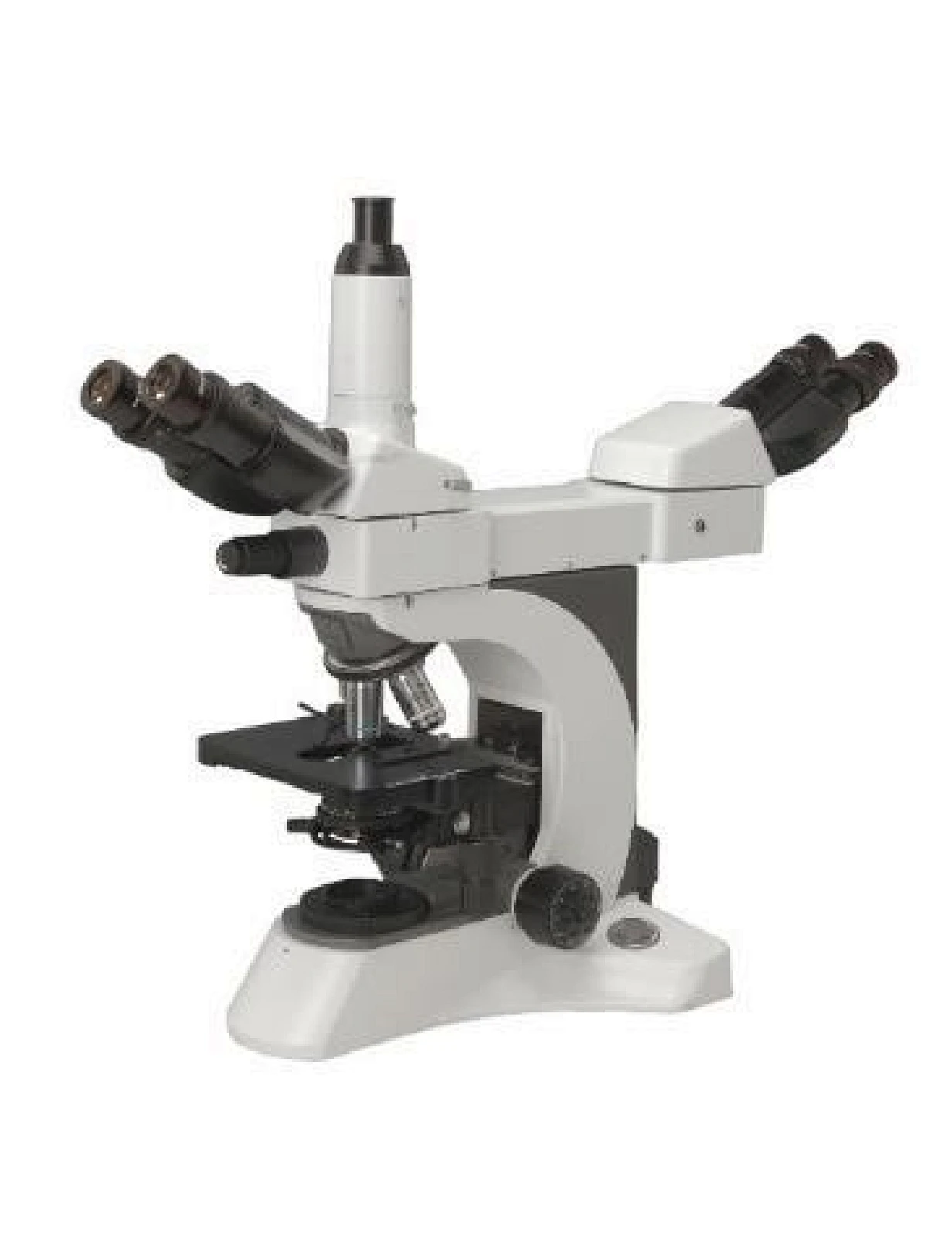

Classic Laboratory Multi-Head Microscope
Introduction
Feature
1. Sharp image display with excellent infinite optical system.2. Small space occupancy with integral stand design, low environment requirement with anti-mould technology.
3. Users friendly and comfortable operation with ergonomic design.
Application
BS-2080MH Series Multi-Head Microscopes are mainly used in medical teaching and biological teaching. They also can be used for biological analysis for more experts at the same time. They can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.Specification
Item | Specification | RM1809 BS-2080MH4 | RM1810 BS-2080MH6 | RM1811 BS-2080MH10 |
Optical System | Infinite Optical System | ● | ● | ● |
Viewing Head | Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | 1PC | 1PC | 1PC |
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | 1PC | 2PCS | 4PCS | |
Eyepiece | Extra Wide Field Eyepiece EW10×/ 20mm | 4PCS | 6PCS | 10PCS |
Nosepiece | Backward Quintuple Nosepiece | ● | ● | ● |
Objective | Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× | ● | ● | ● |
Infinite Plan Achromatic Objective 20×, 60× | ○ | ○ | ○ | |
Condenser | Swing Condenser N.A.0.9/ 0.25 | ● | ● | ● |
Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm | ● | ● | ● |
Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm | ● | ● | ● |
Kohler Illumination | External Illumination, Halogen Lamp 24V/ 100W | ● | ● | ● |
5W LED Illumination | ○ | ○ | ○ | |
Pointer | Green LED Pointer, Brightness Adjustable | ● | ● | ● |
Dual Color LED Pointer, Brightness Adjustable | ○ | ○ | ○ | |
Photo Adapter | Used to connect Nikon or Canon DSLR camera to the microscope | ○ | ○ | ○ |
Video Adapter | C-Mount 1× | ○ | ○ | ○ |
C-Mount 0.5× | ○ | ○ | ○ |
Note: ●Standard Outfit, ○Optional
