Basic Economical Stereo Microscope 20×, 40×

Model NO. BS-3010

High-performance microscope with magnification up to 40× and economical design.

Quantity

Contact Now add to cart

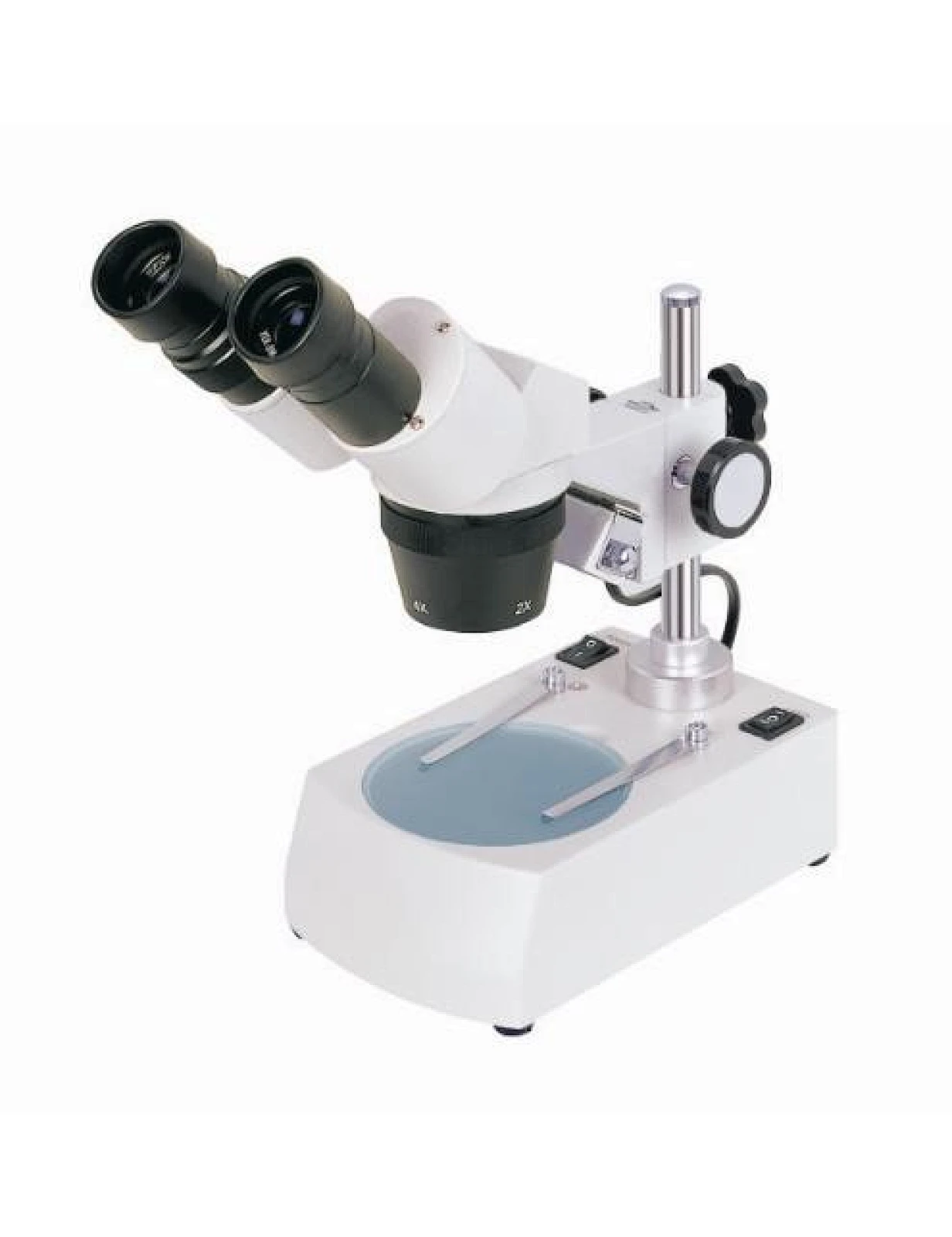

Basic Economical Stereo Microscope 20×, 40×

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3010 series stereo microscope offers upright, un-reversed 3D images with high resolution and high quality. Optional eyepieces and objectives expand magnification range and working distances.

BS-3010 is a smart and cost-effective stereo microscope. Optional cold light and ring light can be chosen for this microscope. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Feature

1. High quality, high function and excellent cost performance.
2. Ergonomic design, sharp image display, wide viewing field and easy to operate.
3. Ideal instrument in academic, medical and industrial field.

Application

BS-3010 series stereo microscopes are widely applied in circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.




Specification

Item	Specification	RM1310 BS-3010B
Viewing Head	Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, Un-rotatable
	Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, 360° Rotatable	●
Eyepiece	WF5×/20mm	○
	WF10×/20mm	●
	WF15×/15mm	○
	WF20×/10mm	○
Objective	2×, 4×	●
	1×, 2×	○
	1×, 3×	○
Working Distance	57mm
	76mm	●
Illumination	Transmitted halogen light 12V/ 10W	●
	Incident halogen light 12V/ 10W	●
	Transmitted & Incident LED illumination	○
Package	4pcs/carton, 68cm*31cm*38cm, 16kg	●

Note: ● Standard Outfit, ○ Optional
