Popular Zoom Stereo Microscope 10×-45×

Model NO. BS-3020

High-quality stereo microscope with 10x to 45x magnification, perfect for scientific and educational use.

Quantity

Contact Now add to cart

Popular Zoom Stereo Microscope 10×-45×

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3020 Stereo Zoom Microscope on a post stand offers upright, un-reversed 3D images that very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.
BS-3020 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BS-3020 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Feature

1. High quality, high function and excellent cost performance.
2. High resolution, Wide viewing field, Long working distance.

3. Ergonomic design, sharp image display, wide viewing field and easy to operate.
4. Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
5. Ideal instrument in academic, medical and industrial field.

Application

The microscope can be used for circuit board repair and inspection, SMT work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

Specification

Item	Specification		RM1320 BS-3020B	RM1321 BS-3020T

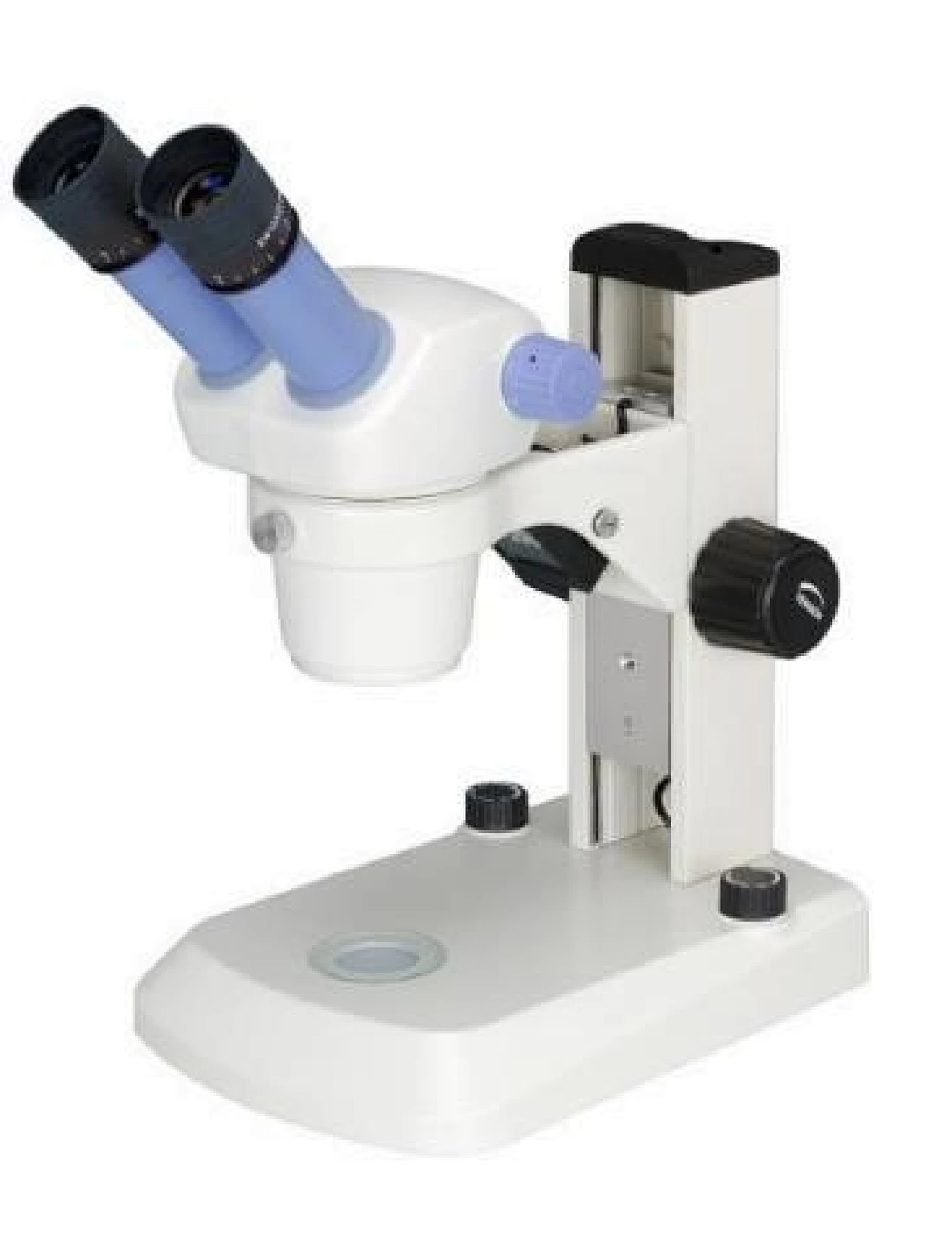

Viewing Head	Binocular head, inclined at 45°, Interpupilary Distance 55-75mm		●
	Binocular head, inclined at 60°, Interpupilary Distance 55-75mm		○	○

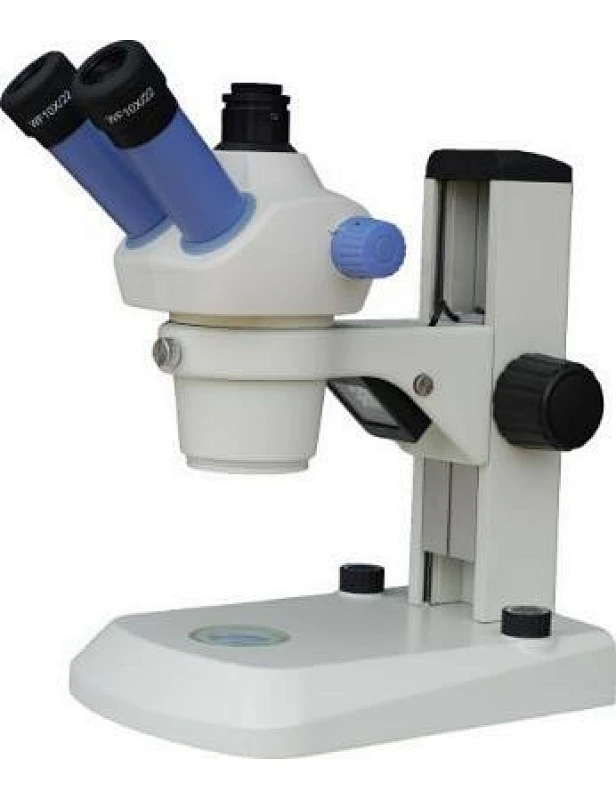

	Trinocular head, inclined at 45°, Interpupilary Distance, 55-75mm			●
	Binocular head with 1.3MP digital camera, inclined at 45°, Interpupilary Distance 55-75mm, ScopeImage 9.0 software
Eyepiece	Wide field eyepiece 10×/ 20mm		●	●
	Wide field eyepiece 15×/ 16mm		○	○
	Wide field eyepiece 20×/ 12mm		○	○
	Wide field eyepiece 30×/8mm		○	○
	WF10× Eyepiece with cross line		○	○
Objective	Zoom objective	0.7×～3×	○	○
		1×～4.5×	●	●
	Auxiliary objective	2×, W.D.: 30mm	○	○
		0.75×, W.D.: 120mm	○	○
		0.63×, W.D.: 137mm	○	○
		0.5×, W.D.: 180mm	○	○
Zoom Ratio	1:4.3		○	○
	1:4.5		●	●
Working Distance	97mm		●	●
Focusing	Coarse Focus, Focusing Range 100mm		●	●
Illumination	Incident Illumination 100V-240V/ LED		●	●
	Transmitted Illumination 100V-240V/ LED		●	●
Attachment	Photo Attachment (Used for connecting Nikon or Canon DSLR camera to the microscope)		○	○
	Video Attachment (0.5× C-mount)		●	●
Package	1pc/carton, 36.5cm*31cm*52cm, 6kg		●	●

Note: ● Standard Outfit, ○ Optional
