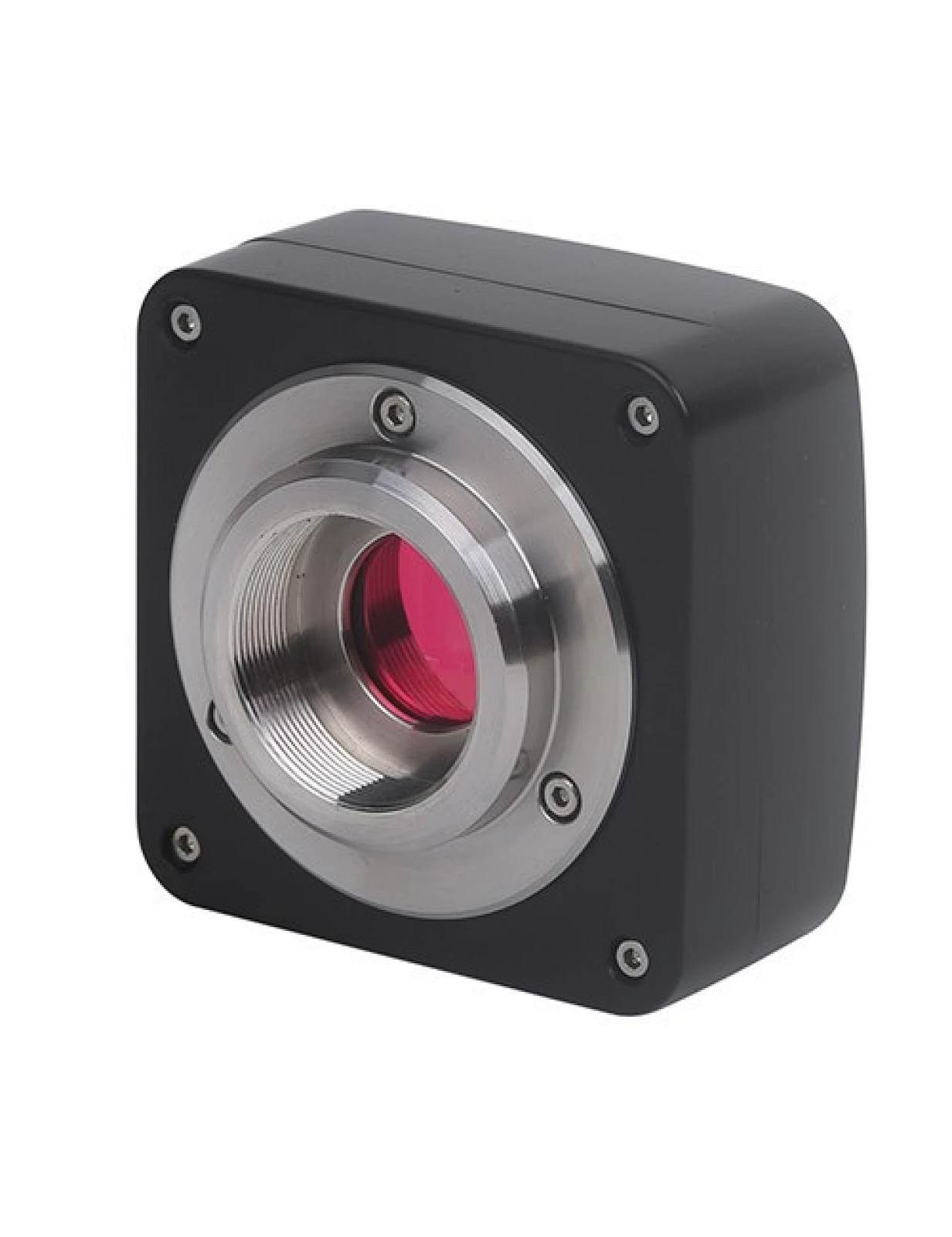

C-mount USB2.0 CMOS Camera

Model NO. BUC1D

This camera delivers high-quality images and videos for scientific and industrial applications,reducing user fatigue.

Quantity

Contact Now add to cart

C-mount USB2.0 CMOS Camera

Introduction
BUC1D series cameras adopt ultra-high performance CMOS sensor as the image-capture device. USB2.0 is used as the data transfer interface.

BUC1D series cameras’ hardware resolutions ranges from 2.1MP to 12MP and come with the zinc aluminum alloy compact housing. BUC1D come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The BUC1D can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
Feature
1. Standard C-Mount camera with Sony or OnSemi CMOS sensor;
2. With hardware resolution among 2.10MP to 12MP;
3. USB2.0 interface ensuring high speed data transmission;
4. Integrated with large capacity memory chip ensures data synchronous transmission, low latency, high frame rate and stability;
5. Compatible with Microsoft USB Video Class protocol and support the third-party software development;
6. Built in Ultra-fine hardware ISP engine ensures high color restoration;
(1) Support automatic/manual exposure switching, accurate exposure time control, and real-time adjustment of exposure target area;
(2) Support automatic/manual/ROI white balance;
(3) Support color adjustment/color mode selection/image flipping;
(4) Support histogram adjust/flat field correction/dark field correction/video ROI;
7. High performance MJPEG compression algorithm, combined with the unique decoding method of image restoration algorithm ensure highest frame rate of USB2.0 camera in the industry. The FPS for 5MP and 8MP can be up to 30FPS; the FPS for 12MP can be up to 15FPS;
8. Comply with CE and FCC agreements;
9. CNC aluminum alloy housing;
10. With advanced video & image processing application ImageView;
11. Providing Windows/Linux/Mac OS multiple platforms SDK;
12. Very competitive pricing.


Specification

Order Code	Sensor & Size(mm)	Pixel(μm)	GResponsivity Dynamic range SNRmax	FPS/Resolution	Binning	Exposure
RM2215 BUC1D-1200C	12M/IMX577(C) 1/2.3“ (5.95x4.71)	1.55x1.55	250LSB 70dB 43dB	20@3840x3040 20@1920x1520 20@960x760	1x1 1x1 1x1	0.1-2000 ms
RM2214 BUC1D-830C	8.3M/IMX274(C) 1/2.5“ (6.22x3.50)	1.62x1.62	236mV 70dB 43dB	30@3840x2160 30@1920x1080 30@1280x720 30@960x540	1x1 1x1 1x1	0.1-2000 ms
RM2213 BUC1D-510AC	5.1M/AR0521(C) 1/2.5“ (5.70x4.28)	2.2x2.2	18.8ke-/lus 73dB 40dB	30@2592x1944 30@1280x960 30@640x480	1x1 1x1 1x1	0.1-1000 ms
RM2212 BUC1D-510BC	5.1M/IMX335(C) 1/2.8“ (5.18x3.89)	2.0x2.0	505mV 70dB 43dB	25@2592x1944 25@1280x960 25@640x480	1x1 1x1 1x1	0.1-2000 ms
RM2211 BUC1D-310C	3.1M/Aptina(C) 1/2.5“ (5.73x4.3)	2.8x2.8	18.8ke-/lus 73dB 40dB	30@2048x1536 30@1024x768	1x1 1x1	0.1-1000 ms
RM2210 BUC1D-210C	2.1M/IMX307(C) 1/2.8“ (5.73x4.3)	2.9x2.9	1300mV 73dB 43dB	38@1920x1080 38@1024x768	1x1 1x1	0.1-2000 ms

C: Color; M: Monochrome;

Other Specification for BUC1D Camera
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	Auto/Manual/ROI White Balance/Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-fine hardware ISP engine /NA for Monochromatic Sensor
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture and Movie
Cooling System*	Natural
Operating Environment
Operating Temperature (in Centidegree)	-10~ 50
Storage Temperature (in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Software Environment
Operating System	Microsoft®Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:2GB or More
	USB Port:USB2.0 High-speed Port
	Display:17” or Larger
	CD-ROM

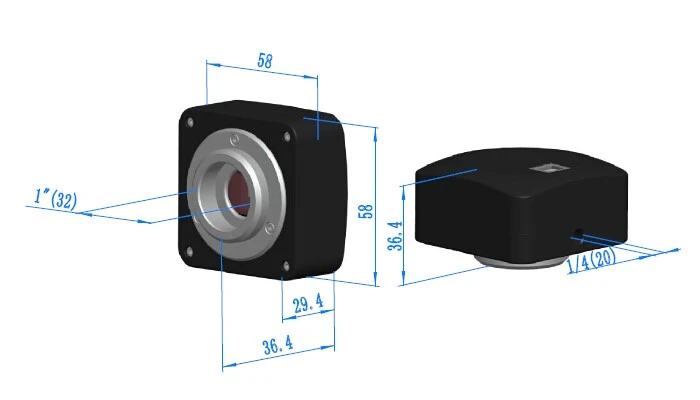

Dimension of BUC1D
The BUC1D body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
