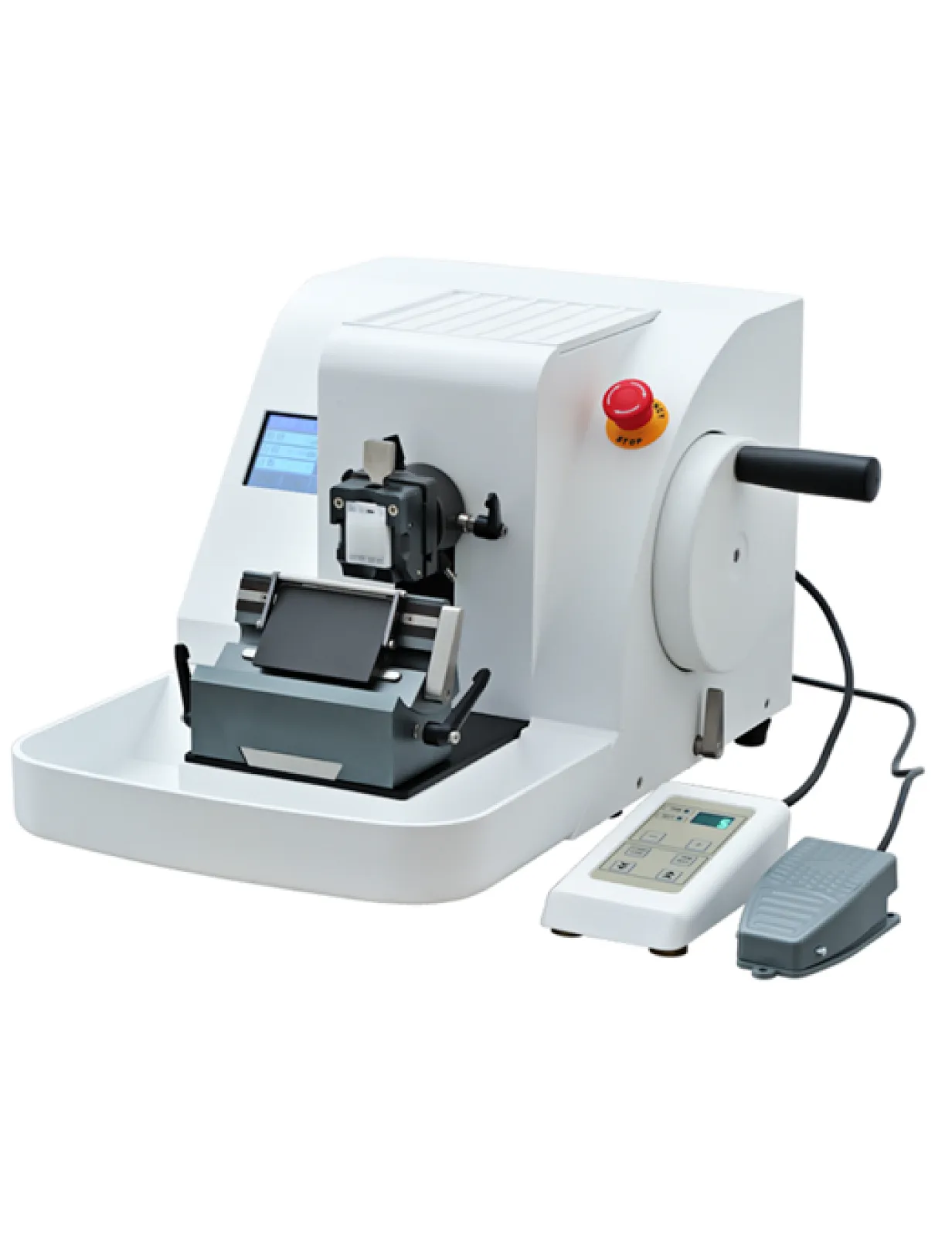

The Fully Automatic Microtome RH4455 provides utmost reliability, user benefit and outstanding operator comfort. Great basic stability and precision, make this microtome a real multi-purpose instrument that meets the requirements both in paraffin and hard sectioning techniques of the biological, medical and industrial lab

Features:

* Fully automatic or manual model. Its two-in-one design concept, which allows motorized and manual sectioning, provides reproducible high-quality sections.

* Adopted Germany stepper Motor and motor drive ensure slice more precisely, more reliable and quiet.

* The touch screen shows slice and trimming thickness, section counter, mode and speed, stroke distance

* Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer.

* Blade Carrier for both of High and Low Profile Disposable Blades

* The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible * The waste tray can be disassembled easily

* Safety alarm system, overload protection function, sleep mode protection

* Universal cassette clamp and standard specimen clamp

* Optional Blade carrier which can use Steel Knife or Blade Holder

* Emergency stop

* Foot Switch to control the Section

* Easy operation with Separated Control Panel

* Protection Guard

* Remote control panel set trimming or section thickness, stroke ,cutting speed

* Precise orientation of specimen clamp

Specifications:

* Item No.RH4455

* Section thickness range: 0.5- 100μm

Setting values:

From 0.5-2μm in 0.5μm –increments

Form 2-10μm in 1μm -increments

Form 10-20μm in 2μm -increments

Form 20-50μm in 5μm -increments

Form 50-100μm in 10μm increments

* Trimming section thickness range:5-500μm

* Cutting speed 0 – 300mm/s

* Horizontal specimen stroke:20 mm (28mm is optional customization)

* Vertical specimen stroke: 60mm (70mm is optional customization)

* Specimen retraction from 0-220um/turn on or off is optional customization

* Specimen feed speed 1250/s (click),2000μm/s (keep pressing)

* Sample orientation:8°along the X-Y-axis, rotate 360°

* Precision error: ± 5%

* Maximum section size: 50 × 45mm

* Voltage and power: 220v / 50Hz or 110 v /60Hz

* Net weight: 32kg

* Dimensions incl. tray (L/T/H)

* 500mm(L)X320mm(W)X500mm(H)
