High Precision Cryostat

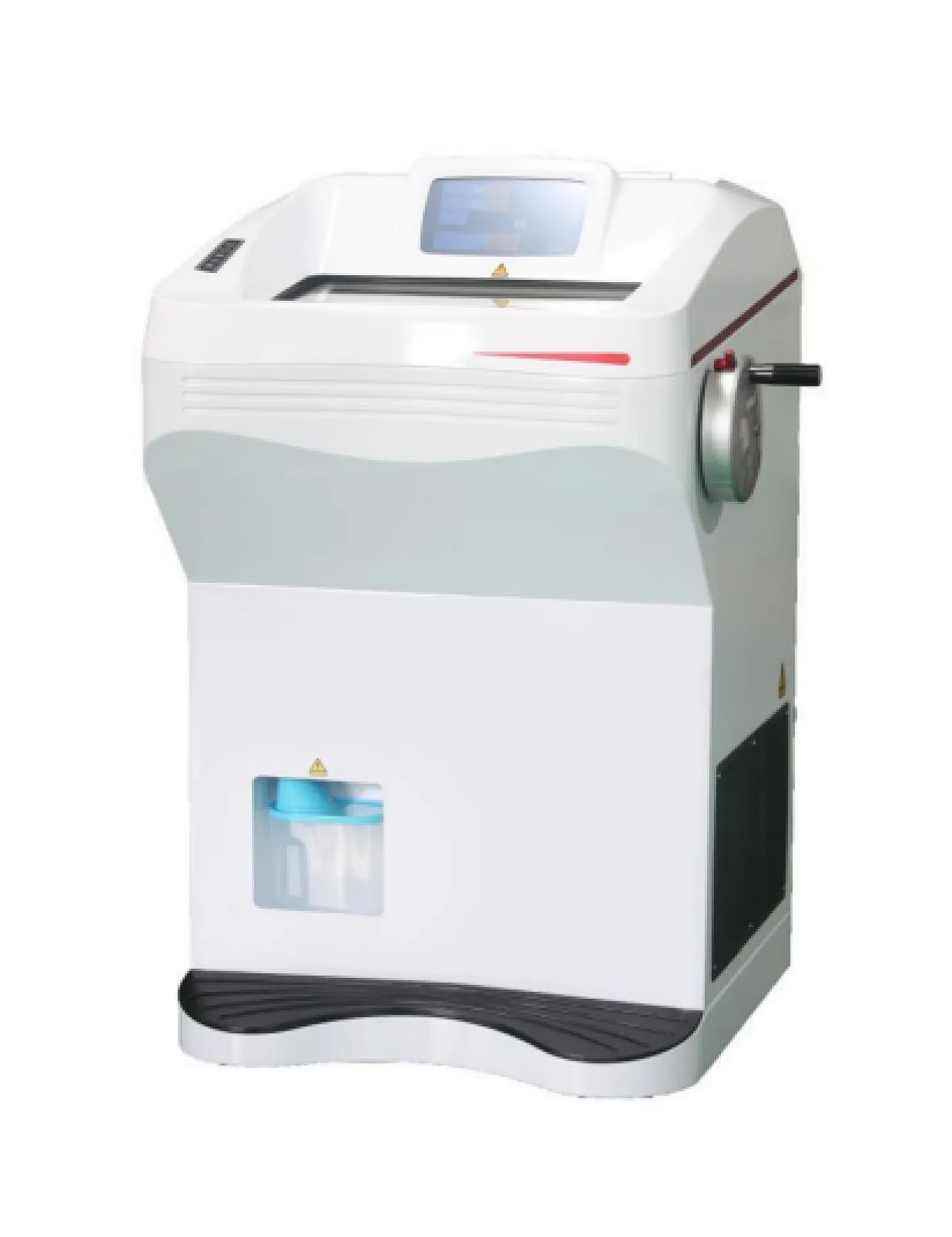

Newly Designed Cryostat To promote and support high quality tissue sectioning in pathology, dermatology, and histology labs, we have designed and created the RH4622 cryostat as a state-of-the-art freeze microtome. The RH4622 cryostat is a high precision microtome with dual compressors, UV light disinfection, LED touch screen control panel, and much more.
Features:
* Extra large freeze chamber has UV light sterilization, automatic defrost, and standby mode.
* LED touch screen control panel is large and easy to use. it show all information including thickness for section and trimming, retraction, temperature control, defrost control, time on / off and so on.
* Top of cryostat allows for easy storage and access to glass slides, stains, and tools.
* Smooth turning hand wheel with 360∘ locking mechanism.
* Double compressor system allows for fast freezing and robust lifespan of cryostat, and total 5 parts including chamber, blade holder, clamp, freezing shelf and smoothing board in freezing condition
* Waste collection for liquid condensate is safe and easily accessible.
* Specimen holder is easily adjustable and clamps to specimen disc for stability.
* Knife holder is fully adjustable with anti-rolling plate and blade guard. Anti-roll plate with knife guard
* One-Click to return specimen clamp to initial position automatically when clamp reach to limited position
* Molds shaped one-time, Germany accessory and high quality Teflon surface treatment
* Specimen retraction function, protects specimen from blade injury
* Trimming/Cutting button makes it easy to switch from trim and section mode
* Equip with counter to calculate total pieces and thickness.
* The low temperature refrigeration system with pro-environment refrigerant R404
* Temperature can drop to working condition in 40 minutes after switching on.
* Adopt to UVC sterilize for 35 minutes every time to optimize safety for cutting cryosections
* Peltier may be on or off manually.
* Heated, removable sliding window.
* Two defrost methods: definite time and manual, automatic defrost system built in, with cool air circulation that automatically starts to cool air circulating around the cutting specimen, knife, and anti-roll guide
* Fully encapsulated microtome for maintenance free reliability. The high-precision microtome is enclosed outside the cryostat chamber to protect it from thermal expansion and contraction and keep minimum service and maintenance.
* Self-explanatory symbols for all functions and displays, easy to learn and operate.
* Standby mode, after initializing, temperature in cryostat chamber can be controlled between -5℃ and -15℃ by computer automatically; when stop initializing, the temperature in freeze chamber will arrive to working temperature within 15 minutes
* Control panel with locking function to avoid wrong operation.
* With vacuum cleaner easy to clean the chamber
* Sensor self-diagnosis function, with an auto detected and alarm system for temperature sensor status
* Wide freezing shelf can put 36 specimens discs and including 8 stations with the Peltier fast-freeze mechanism (blue).
* Knife holder for both of low profile blade and high profile blade
Specifications:
* Item No.RH4622
* freeze chamber temperature rage：0℃～-50℃
* Blade holder and clamp temperature rage：0℃～-50℃
* Cooling down time to -50℃：40 min
* Freeze shelf routine temperature：0℃～-50℃
* Lowest temperature of Peltier unit on freeze shelf：-60℃
* Peltier working time: 15 minutes
* Maximum specimen size：55mm×80mm
* Specimen vertical stroke：65mm (70mm is optional)
* Specimen horizontal stroke：22mm
* Coarse feeding speed: 0.9mm/s; 0.45mm/s
* X/Y-axis:12°, Z-axis:360°, the specimen holder has 360-degree specimen orientation
* Section thickness range：1-100μm 0.5μm～100μm adjustable: 0.5μm～5μm, in 0.5μm increment;5μm～20μm, in 1μm increments; 20μm～50μm, in 2μm increments; 50μm～100μm, in 5μm increments
* Trimming thickness range：0μm～600μm 0μm～600μm adjustable: 0μm～50μm, in 5μm increments; 50μm～100μm, in 10μm increments; 100μm～600μm, in 50μm increments;
* Retraction range: 0μm～60μm adjustable; in 2μm increment
* Voltage and frequency：AC220V±10% 50Hz (Standard) Special requirement may customize by order.
* Power：500W
* Weight：150kg
* Dimensions(W×D×H)：700×760×1160mm
