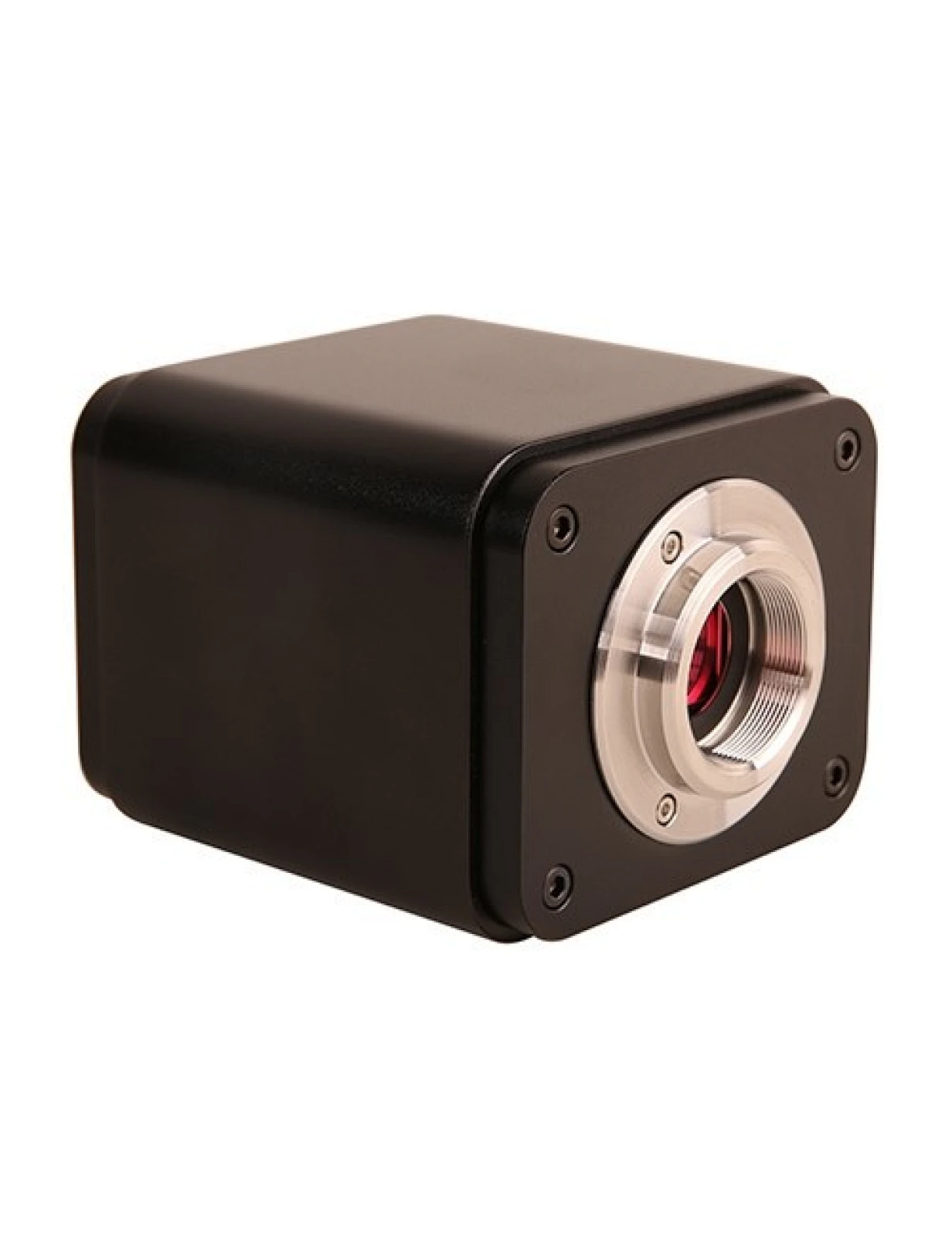

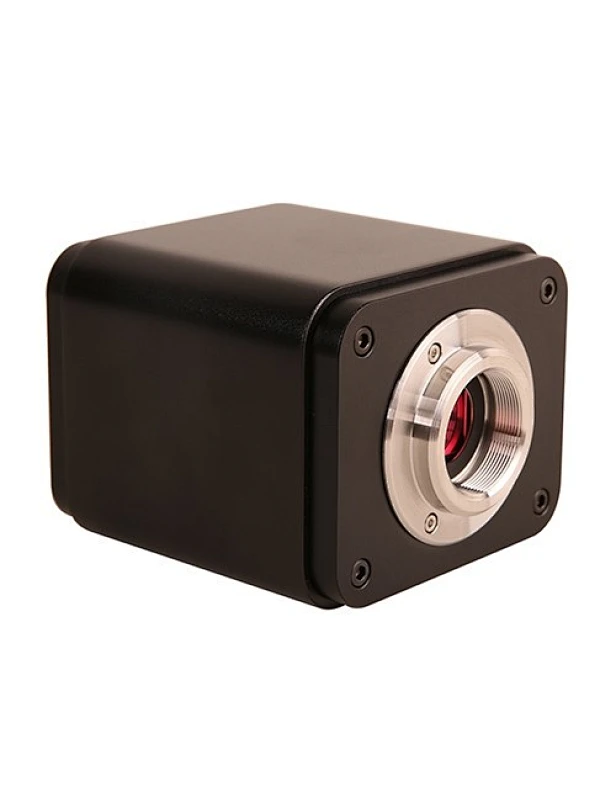

HDMI digital camera
BHC4-4K
This HDMI digital camera captures stunning images and videos in high definition, making it perfect for both amateur and professional photographers.
Quantity
HDMI digital camera
1. The Application of the BHC4-4K Series Camera
1. The Application of the BHC4-4K Series Camera

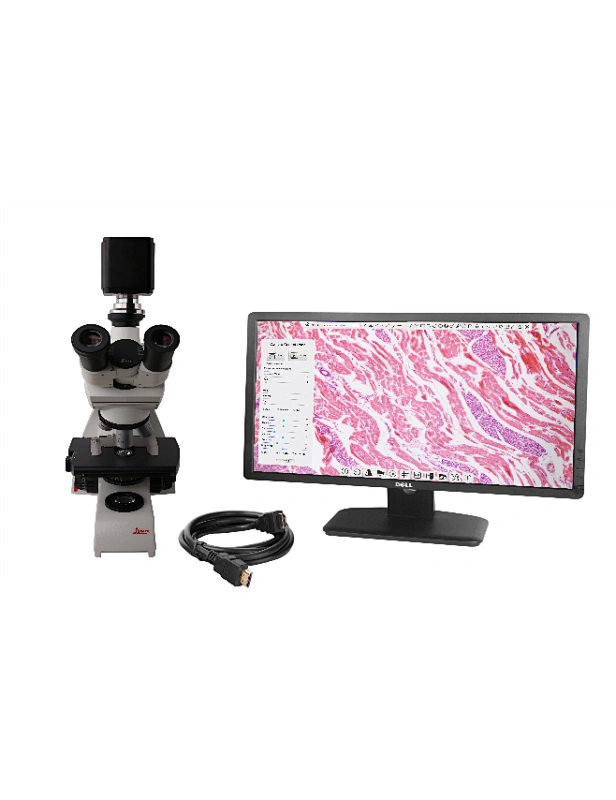

The BHC4-4K series camera is intended to be used for the acquisition of digital images from the stereo microscope and biological microscope. The basic characteristic is listed as below:
*Sony Exmor back illuminated CMOS sensor
*4K HDMI/USB multiple video outputs
*4K/1080P auto switching according to the display resolution
*SD card for the captured image and video storage
*Embedded XCamView for the control of the camera
*With strong ISP and other related processing functions
*ImageView software for PC
*ImageView software for MAC
2. BHC4-4K Series Camera’s Datasheet
*Sony Exmor back illuminated CMOS sensor
*4K HDMI/USB multiple video outputs
*4K/1080P auto switching according to the display resolution
*SD card for the captured image and video storage
*Embedded XCamView for the control of the camera
*With strong ISP and other related processing functions
*ImageView software for PC
*ImageView software for MAC
2. BHC4-4K Series Camera’s Datasheet
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure(ms) |
RM2542 BHC4-4K8MPA | Sony IMX334(C) 1/1.8"(7.68x4.32) | 2.0x2.0 | 505mv with 1/30s 0.1mv with 1/30s | 30@3840*2160(HDMI) 20@3840*2160(USB) | 1x1 | 0.04~1000 |
RM2543 BHC4-4K8MPB | Sony IMX485(C) 1/1.2"(11.14x6.26) | 2.9x2.9 | 2188mv with 1/30s 0.39mv with 1/30s | 30@3840*2160(HDMI) 20@3840*2160(USB) | 1x1 | 0.04~1000 |
3. Available Ports on the Back of the Camera Body
1 Available Ports on the Back Panel of the Camera Body
Video Output
Image Capture and Video Saving in SD Card
ISP Function
Image Operation Function
Other Functions
5.Sample Photos Captured with BHC4-4K Series Camera
Company Pictures
Certificates
Why Choose Us
Payment & Delivery
1 Available Ports on the Back Panel of the Camera Body
| Interface | Function Description |
| USB Mouse | Connect USB mouse for easy operation with embedded XCamViewsoftware; |
| USB Video | Connect PC or other host device to realize video image transmission; |
| HDMI | Comply with HDMI1.4 standard. 4K or 1080P format video output for standard monitor; |
| DC12V | Power adapter connection (12V/1A); |
| SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images storage; |
| LED | LED status indicator; |
| ON/OFF | Power switch; |
4. BHC4-4K Series Camera Function Description
Video Output
| Video Output Interface | Function Description |
| HDMI Interface | Comply with HDMI1.4standard; 30fps@4K or 30fps@1080P; |
| USB Video Interface | Connecting USB port of PC for video transfer; MJPEG format video; |
Image Capture and Video Saving in SD Card
| Function Name | Function Description |
| Video Saving | Video format:8M(3840*2160) H264/H265 encoded MP4 file; Video saving frame rate:30fps; |
| Image Capture | 8M (3840*2160) JPEG/TIFF image in SD card ; |
| Measurement Saving | Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode. |
ISP Function
| Function Name | Function Description |
| Exposure / Gain | Automatic/Manual Exposure |
| White Balance | Manual/Automatic/ROI Mode |
| Sharpening | Supported |
| 3D Denoise | Supported |
| Saturation Adjustment | Supported |
| Contrast Adjustment | Supported |
| Brightness Adjustment | Supported |
| Gamma Adjustment | Supported |
| 50HZ/60HZ Anti-flicker Function | Supported |
Image Operation Function
| Function Name | Function Description |
| Zoom In/Zoom Out | Up to 10X |
| Mirror/Flip | Supported |
| Freeze | Supported |
| Cross Line | Supported |
| Overlay | Supported |
| Embedded Files Browser | Supported |
| Video Playback | Supported |
| Measurement Function | Supported |
Other Functions
| Function Name | Function Description |
| Embedded RTC(Optional) | To support accurate time on board |
| Restore Factory Settings | Supported |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian |
5.Sample Photos Captured with BHC4-4K Series Camera
