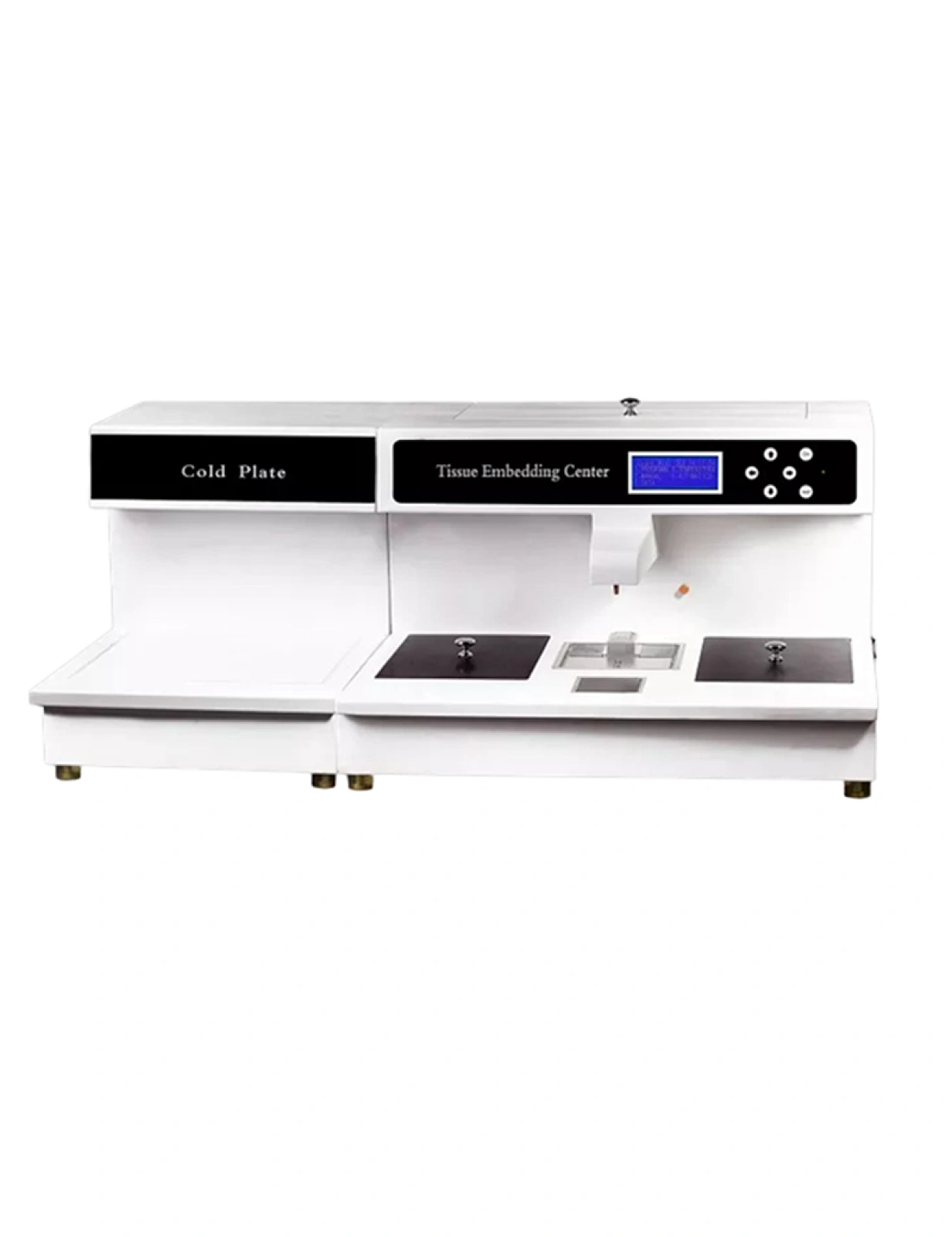

Tissue Embedding Center with Cold Plate
Features:
* Integrated design, fast heat up, high safety factor, long working life, good sealing properties and no wax dripping situation
* The newest high technology and Button Panel Control, new type of heating material
* The machine is made up of embedding system, cooling part. the design can be flexibly selected between embedding machine and cooling part.
* Memory function and Auto Recover feature, Automated control system make it possible for presetting the Embedding system switch on / off with setting time and temperature on schedule
* Special nano technical make it heat up quickly and equably.
* The LCD display can show the temperatures of the paraffin bath, thermostatic bath and paraffin nozzle. So the user can operator it easily.
* Low voltage lighting systems
* Small cold spot in working table.
* Large capacity paraffin bath can contain enough paraffin for use at one time.
* The heating function with multilevel security protection system.
* There are 3 heating holes for forceps in two side of the paraffin nozzle.
* Magnifying glass with lamp is optional accessory
* Collection drawer to collect paraffin from working table
Specifications:
* Item No.RH3206
* Capacity of the paraffin pan: 6000 ml.
* Temperature range of Paraffin pan: 0 ~99℃
* Temperature range of working table: 0 ~99℃
* Temperature range of left and right warming box: 0 ~99℃
* Freezing range temperature of cold plate: 0 ~ -20℃
* Freezing range temperature of small cold spot in working table : 0 ~ -10℃
* Control mode: manual touch plate or foot switch
* About 120pcs of molds or 140pcs cassettes for each hot reservoir
* Capacity of Cold plate: About 50-60pcs of Tissue mold or cassettes
* Environment temperature: 0℃~ 40℃
* Time control: Switch on and switch off time of the machine is set in 24 hours optionally.
* Nominal voltage: AC110V-220V±10%.
* Rated frequency:50Hz/60Hz
* Power consumption: (dispenser part)10A /1800W, (cold plate part)5A/ 130W
* Dimension: Embedding center (60x52x36.5cm), Cold plate (36x52x36.5cm)
* Gross /Net Weight: 110/65kg
