Introduction

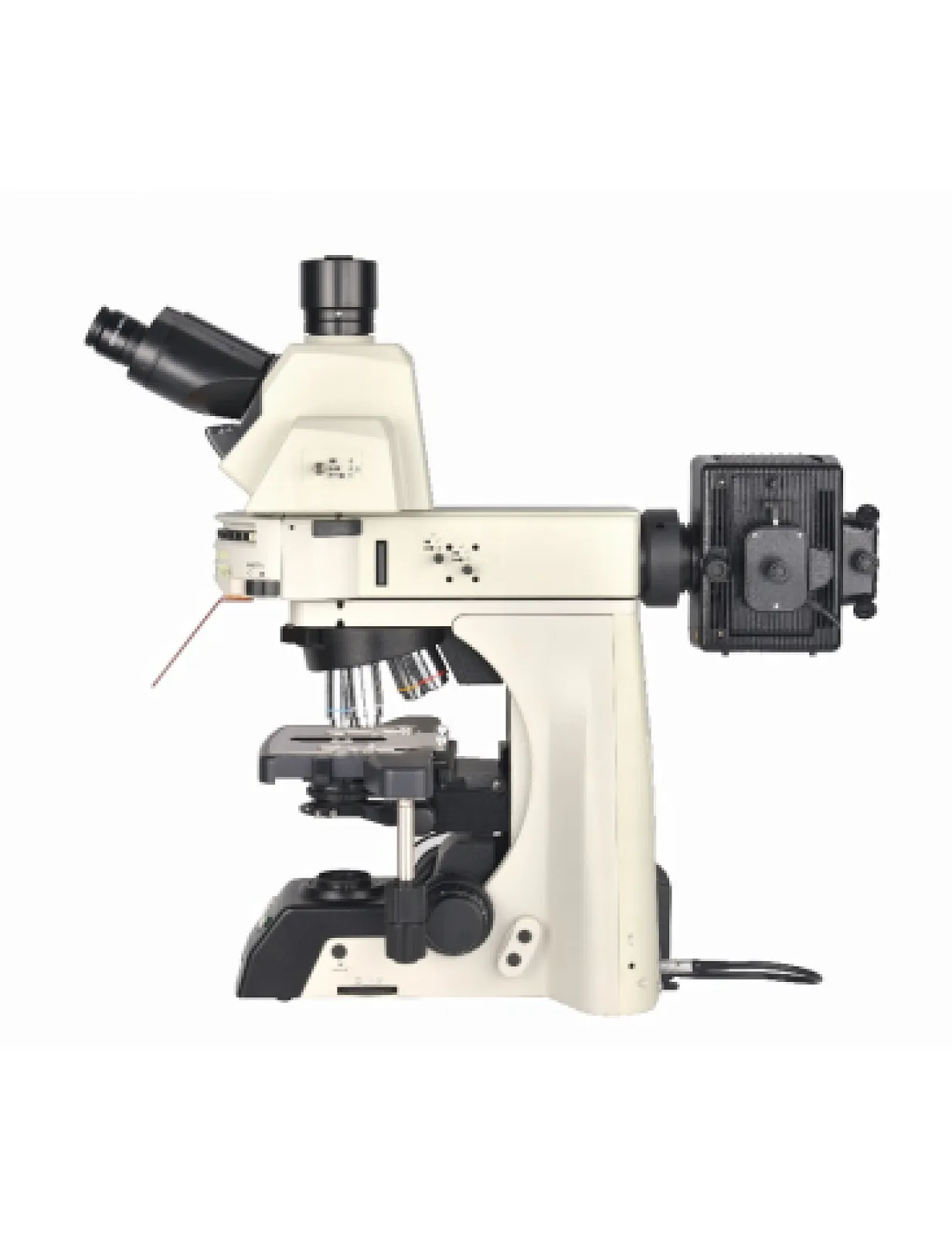

This biological fluorescent microscope has been designed to present a safe, comfortable and precision observation experience. B, G, U, V, R, FITC, DAPI, TRITC fluorescent filters are available. With perfectly performed structure, high-definition optical image and ergonomical operating system, BS-2081F realizes professional analysis and meets all the needs of research in biological, medical, life science and other fields.
Features
- Sapphire Glass Stage is optional. Mechanical stage with sapphire glass insert is optional, it is endurable, never could be scratched and allows users to clear the stage easily.
- Put Slide by One Hand. It is easy for users to put slides by one hand due to the special designed slide clip.
- Tilting Trinocular Head is optional. The eye tube can be adjusted from 0°-35°.Digital cameras or DSLR cameras can be connected to the trinocular tube. The beam splitter has 3-position (100:0, 20:80, 0:100).The splitter bar can be assembled on the either side according to user’s requirements.
- ECO Function.The transmitted light would be off automatically after 30 minutes from operators leave. It can not only save energy, but also keep the lamp life longer.
- Low Position X-Y Knobs.The height of the stage control knobs can be adjusted up or down by 18mm to ensure a comfortable hand position, the tension of X-Y control knob also can be adjusted.
Application
Specification
Item | Specification | RM1711 BS-2081F | RM1712 BS-2081F (LED) | |
Optical System | NIS60 Infinite Color Corrected Optical System | ● | ● | |
Viewing Head | Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece: Trinocular=100:0 or 20:80 or 0:100 | ● | ● | |
Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece: Trinocular=100:0 or 20:80 or 0:100 | ○ | ○ | ||
Seidentopf Binocular Head, 30° inclined, interpupillary distance: 47mm-78mm | ○ | ○ | ||
Eyepiece | Super wide field plan eyepiece SW10X/25mm, diopter adjustable | ● | ● | |
Super wide field plan eyepiece SW10X/22mm, diopter adjustable | ○ | ○ | ||
Extra wide field plan eyepiece EW12.5X/17.5mm, diopter adjustable | ○ | ○ | ||
Wide field plan eyepiece WF15X/16mm, diopter adjustable | ○ | ○ | ||
Wide field plan eyepiece WF20X/12mm, diopter adjustable | ○ | ○ | ||
Objective | N-PLN Plan Objective | N-PLN 2X/NA=0.06, WD=7.5mm | ○ | ○ |
N-PLN 4X/NA=0.10, WD=30mm | ● | ● | ||
N-PLN 10X/NA=0.25, WD=10.2mm | ● | ● | ||
N-PLN 20X/NA=0.40, WD=12mm | ● | ● | ||
N-PLN 40X/NA=0.65, WD=0.7mm | ● | ● | ||
N-PLN 100X(Oil)/NA=1.25, WD=0.2mm | ● | ● | ||
N-PLN 50X(Oil)/NA=0.95, WD=0.19mm | ○ | ○ | ||
N-PLN 60X/NA=0.80, WD=0.3mm | ○ | ○ | ||
N-PLN-I 100X (Oil, with Iris Diaphragm)/ NA=0.5-1.25, WD=0.2mm | ○ | ○ | ||
N-PLN PH Plan Phase Contrast Objective | N-PLN PH 10X/NA=0.25, WD=10.2mm | ○ | ○ | |
N-PLN PH 20X/NA=0.40, WD=12mm | ○ | ○ | ||
N-PLN PH 40X/NA=0.65, WD=0.7mm | ○ | ○ | ||
N-PLN PH 100X(Oil)/NA=1.25, WD=0.2mm | ○ | ○ | ||
N-PLFN Plan Semi-apochromatic Fluorescent Objective | N-PLFN 4X/NA=0.13, WD=17.2mm | ○ | ○ | |
N-PLFN 10X/NA=0.30, WD=16.0mm | ○ | ○ | ||
N-PLFN 20X/NA=0.50, WD=2.1mm | ○ | ○ | ||
N-PLFN 40X/NA=0.75, WD=1.5mm | ○ | ○ | ||
N-PLFN 100X(Oil)/NA=1.4, WD=0.16mm | ○ | ○ | ||
N-PLFN PH Plan Semi-apochromatic Fluorescent Phase Contrast Objective | N-PLFN PH 10X/NA=0.30, WD=15.8mm | ○ | ○ | |
N-PLFN PH 20X/NA=0.50, WD=2.7mm | ○ | ○ | ||
N-PLFN PH 40X/NA=0.75, WD=1.35mm | ○ | ○ | ||
N-PLFN PH 100X(Oil)/NA=1.40, WD=0.18mm | ○ | ○ | ||
N-PLPN Plan Apochromatic Objective | N-PLPN 10X/NA=0.45, WD=4.0mm | ○ | ○ | |
N-PLPN 20X/NA=0.75, WD=1.1mm | ○ | ○ | ||
N-PLPN 40X/NA=0.95, WD=0.21mm | ○ | ○ | ||
N-PLPN 60X(Oil)/NA=1.42, WD=0.25mm | ○ | ○ | ||
N-PLPN 100X(Oil)/NA=1.45, WD=0.13mm | ○ | ○ | ||
Nosepiece | Backward Sextuple Nosepiece (with DIC slot) | ● | ● | |
Backward Coded Sextuple Nosepiece (with DIC slot) | ○ | ○ | ||
Condenser | Swing-out type condenser N.A.0.9/0.25 | ● | ● | |
Turret Phase Contrast Condenser | ○ | ○ | ||
Dark-field Condenser (Dry), used for objectives lower than 100X | ○ | ○ | ||
Dark-field Condenser (Oil), used for 100X objective | ○ | ○ | ||
Transmitted Illumination | 3W S-LED lamp, center pre-set, intensity adjustable | ● | ● | |
3W S-LED lamp, center pre-set, intensity adjustable. LCD screen with illumination management system | ○ | ○ | ||
12V/100W halogen lamp, center pre-set, intensity adjustable | ○ | ○ | ||
Focusing | Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm | ● | ● | |
Stage | Double layers mechanical stage, size 190mmX152mm; moving range 78mmX54mm (double slide holder, Right or left handle); precision: 0.1mm, with Ultra-hard Glass Insert | ● | ● | |
Double layers mechanical stage, size 190mmX152mm; moving range 78mmX54mm (double slide holder, Right or left handle); precision: 0.1mm; with Sapphire Crystal Glass Insert | ○ | ○ | ||
DIC Kit | Polarizer for DIC Kit | ○ | ○ | |
DIC insert plate(10X/20X), can be inserted into the DIC slot on nosepiece | ○ | ○ | ||
DIC insert plate(40X/100X) can be inserted into the DIC slot on nosepiece | ○ | ○ | ||
DIC Turret Condenser (10X, 20X/40X, 100X Warrior Prism inside) | ○ | ○ | ||
Reflected Fluorescence Illuminator (with mercury lamp) | Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot; with fluorescence B, G filters | ● | ○ | |
100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable. | ● | ○ | ||
Digital power controller, wide voltage 100-240VAC | ● | ○ | ||
ND6/ND25 Filter | ● | ○ | ||
U, V, R, FITC, DAPI, TRITC, Auramine, mCherry, FL-BG fluorescent filters | ○ | ○ | ||
Reflected Fluorescent Attachment (with LED lamps) | LED Reflected Fluorescent Attachment, Turret with 6-position for filter block cubes, including B, G fluorescent filters and B, G, U, R LED lamps (the LED lamps can be used for B, G, U, R, FITC, DAPI, TRITC fluorescent filters), there are 4 positions for the LED lamps | ○ | ● | |
U, R, FITC, DAPI, TRITC fluorescent filters | ○ | ○ | ||
Filter for Transmitted Illumination | Green Filter 45mm | ○ | ○ | |
Blue Filter 45mm | ○ | ○ | ||
Yellow Filter 45mm | ○ | ○ | ||
Red Filter 45mm | ○ | ○ | ||
ND6 Filter | ○ | ○ | ||
ND25 Filter | ○ | ○ | ||
Other Accessories | 0.5X C-mount Adapter | ○ | ○ | |
1X C-mount Adapter | ○ | ○ | ||
Dust Cover | ● | ● | ||
Power Cord | ● | ● | ||
Cedar Oil 5ml | ● | ● | ||
Simple Polarizing kit | ○ | ○ | ||
Calibration slide 0.01mm | ○ | ○ | ||
Multi Viewing Attachment for 2/3/5/7/10 person | ○ | ○ | ||
Note: ● Standard Outfit, ○ Optional
