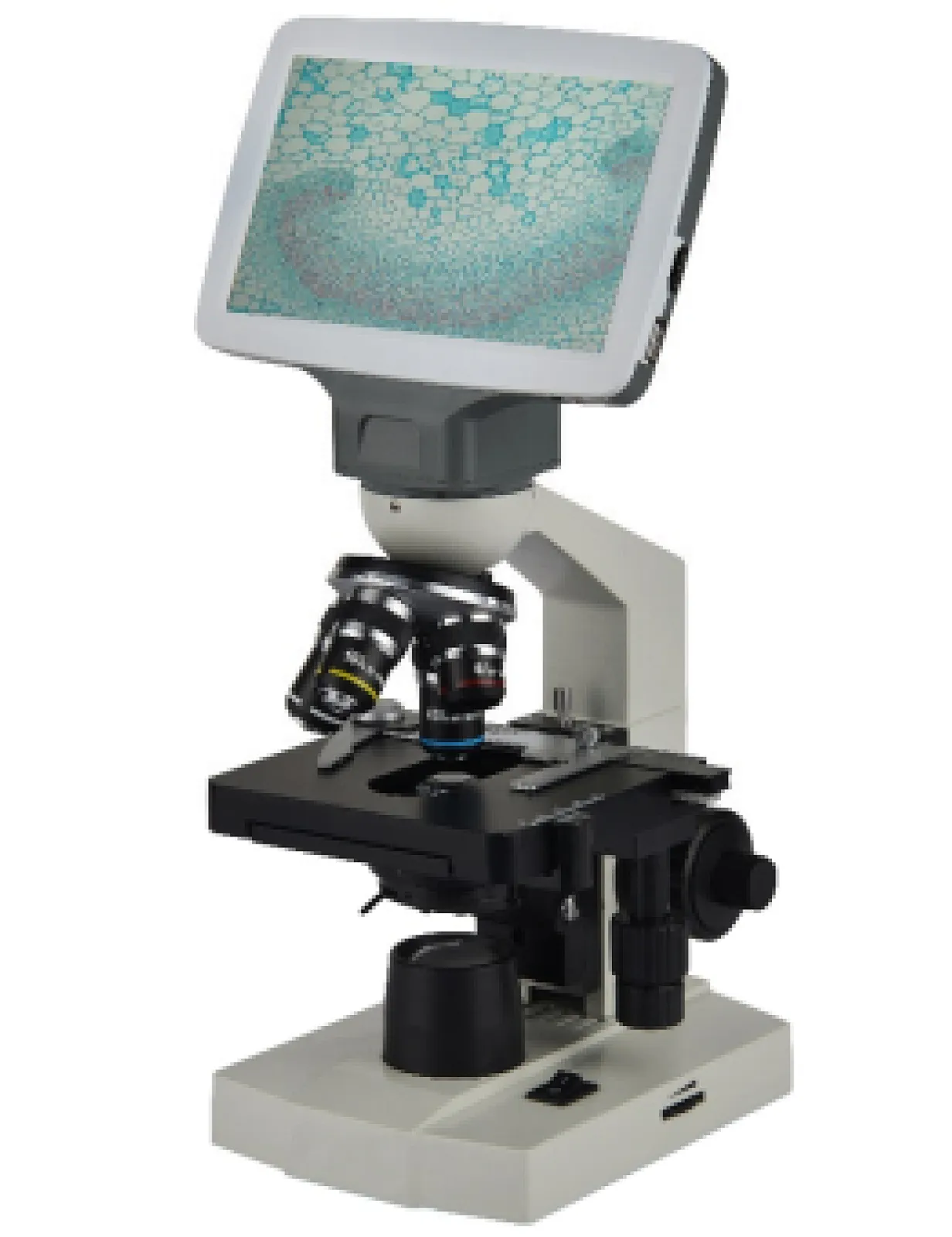

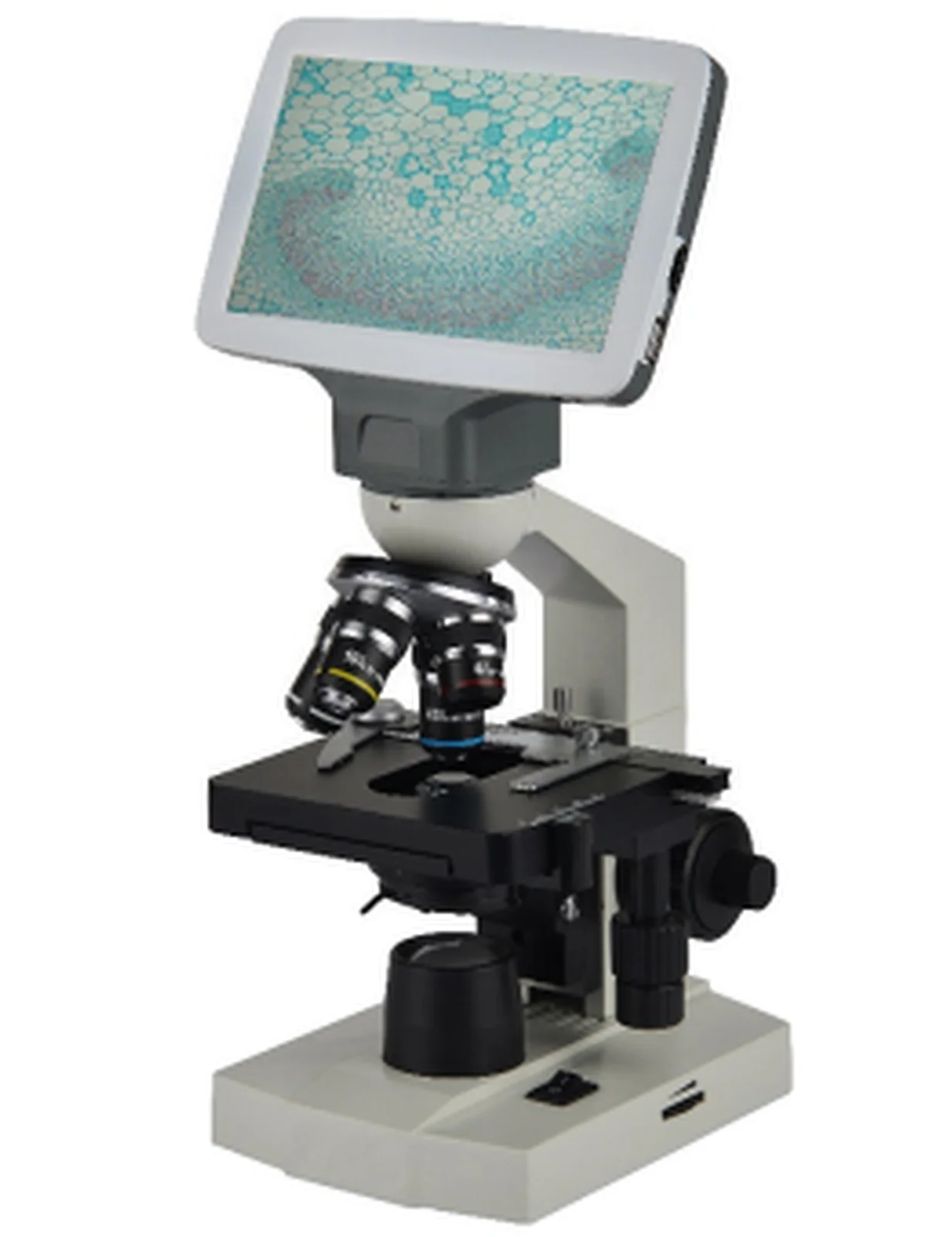

Basic Student LCD Digital Biological Microscope
Introduction
This LCD digital biological microscopes is based on BS-2010E, the microscope has integrated an optical microscope, 7-inch LCD screen and 5.0MP digital camera for image and video capture and data transmission. With high quality optics, the microscope can ensure you get high definition images. It is perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.
Features
1. 7-inch IPS LCD screen with wide visual angle, resolution 1024×600.
2. Built-in 5.0MP CMOS camera, output 1920×1080 HD Video.
3. 1*USB2.0 interface for mouse, no shaking. 1* HDMI interface is convenient for sharing videos to TV or projector for speech. 1* SD card slot, images and videos could be saved in SD card.
Applications
BLM-210 LCD digital biological microscope can be used for educational applications in elementary and middle schools. They also can be used as hobby for biological applications and small items identification.
Specification
Item | Specification | RM1910 BLM-210 |
Viewing Head | 7-inch IPS LCD screen with wide visual angle, resolution 1024×600, Built-in 5.0MP CMOS camera, output 1920×1080 HD Video. 1*USB2.0 interface for mouse, 1* HDMI interface, 1* SD card slot. | ● |
Built-in Camera | Resolution: 5.0MP, 2592×1944 | ● |
Image resolution: 2592×1944 | ● | |
Video resolution: 1920×1080 | ● | |
Pixel Size: 2.75×2.75μm | ● | |
Nosepiece | Quadruple Nosepiece | ● |
Objective | Achromatic Objective 4×(195), 10×(195), 40×(195), 100×(195) | ● |
Achromatic Objective 20×(195) | ○ | |
Achromatic Objective 60×(195) | ○ | |
Stage | Double Layers Mechanical Stage 110×120mm/ 60×30mm | ● |
Focusing | Coaxial Coarse and Fine Adjustment, Moving Range 10mm, with stage height limiting screw | ● |
Condenser | Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser | ● |
Illumination | Transmitted LED Illumination, Brightness Adjustable | ● |
Mirror | ○ | |
Spare Parts | Dust Cover | ● |
Power Supply | AC100-220V power adapter, microscope input voltage DC5V | ● |
Package | Styrofoam & Carton, Dimension 35×28×45 cm, 6kg | ● |
Note: ● Standard Outfit, ○ Optional
