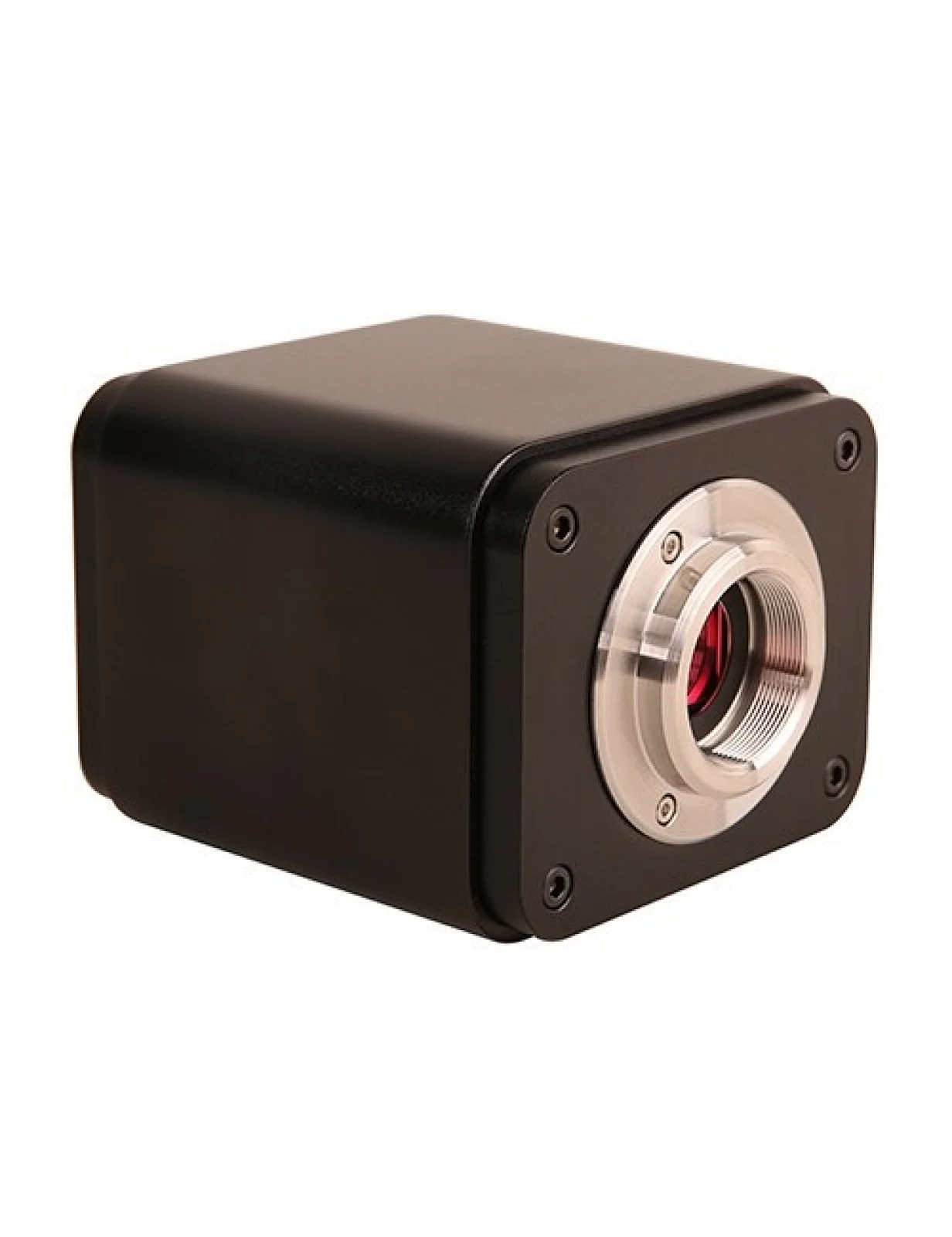

BHC4-1080P Series C-mount HDMI+USB Output CMOS Camera
BHC4-1080P Series Camera’s Basic Characteristic BHC4-1080P series camera is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony IMX385 or 415 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer. For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI dsiplayer, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital. For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView. The included Windows software ImageView offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software ImageView which can capture video and still images, and includes limited processing features.
TheBHC4-1080P series camera’s basic characteristic is as follows: *All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor; *Simultaneous HDMI & USB output; *Built-in mouse control; *Built-in image capture & video record to SD card; *Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control; *Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions; *Built-in image & video browsing, display & play; *Ultra-Fine color engine with perfect color reproduction capability(USB2.0); *Support standard UVC for Windows/Linux/Mac(USB); *With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB); *With Lite version software to control the camera and capture video or still images, which includes limited processing features; *CNC precision machining shell.
Application The possible applications of BHC4-1080P series camera are as follows: *Scientific research, education (teaching, demonstration and academic exchanges); *Digital laboratory, medical research; *Industrial visual (PCB examination, IC quality control); *Medical treatment (pathological observation); *Food (microbial colony observation and counting); *Aerospace, military (high sophisticated weapons).
BHC4-1080P series camera Datasheet
Sensor & Size(mm)
G Sensitivity Dark Signal
Sony IMX385(C) 1/2"(7.2x4.05)
1175mv with 1/30s 0.15mv with 1/30s
Sony IMX415(C) 1/2.8"(5.57x3.13)
300mv with 1/30s 0.13mv with 1/30s
Connect USB mouse for easy operation with embedded XCamView software;
Connect PC or other host device to realize video image transmission;
Comply with HDMI1.4 standard. 1080P format video output for standard displayer;
Power adapter connection (12V/1A);
Comply with SDIO3.0 standard and SD card could be inserted for video and images storage;
LED status indicator;
Video Output Interface
Comply with HDMI1.4 standard; 60fps@1080P;
USB Video Interface
Connecting USB port of PC for video transfer ; MJPEG format video;
Video format: 1920*1080 H264/H265 encoded MP4 file; Video saving frame rate: 60fps(BHC4-1080P2MPA); 30fps(BHC4-1080P8MPB)
2M (1920*2160, BHC4-1080P2MPA) JPEG/TIFF image in SD card ; 8M (3840*2160, BHC4-1080P8MPB) JPEG/TIFF image in SD card ;
Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode.
Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function
To support accurate time on board
Restore Factory Settings
Restore camera parameters to its factory status
Multiple Language Support
English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian
