LCD Digital Biological Microscope with Integrated Camera
Basic Economical LCD Digital Biological Microscope

Basic Economical LCD Digital Biological Microscope

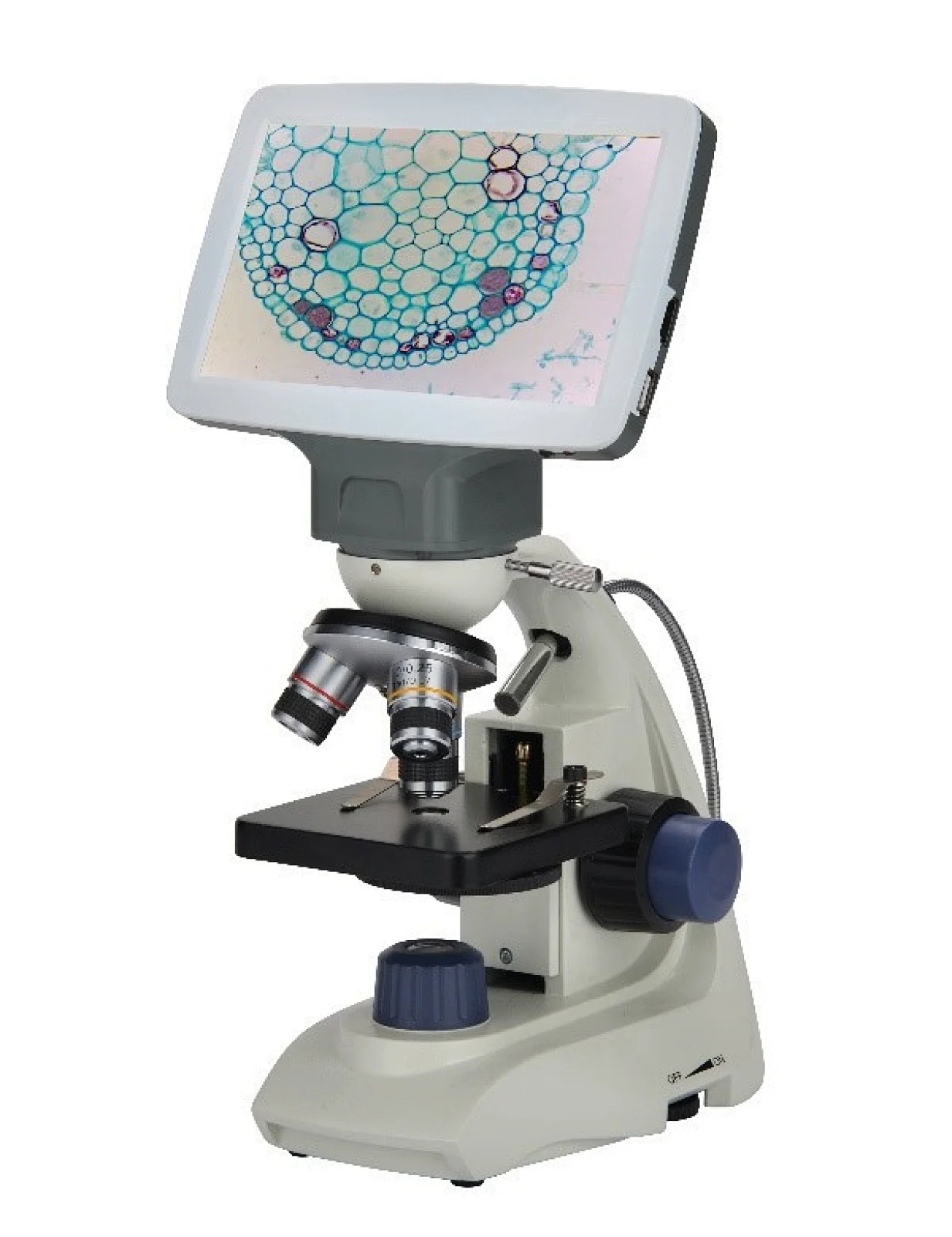

BLM-205 LCD digital biological microscopes is based on BS-2005 series, the microscope has integrated an optical microscope, 7-inch LCD screen and 5.0MP digital camera for image and video capture and data transmission. With high quality optics, the microscope can ensure you get high definition images. It is perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.


1. 7-inch IPS LCD screen with wide visual angle, resolution 1024×600.
2. Built-in 5.0MP CMOS camera, output 1920×1080 HD Video.
3. 1*USB2.0 interface for mouse, no shaking. 1* HDMI interface is convenient for sharing videos to TV or projector for speech. 1* SD card slot, images and videos could be saved in SD card.
4. Battery compartment comes with the microscope, 3pcs AA battery can be used as the power supply, easy for out door work.


BLM-205 LCD digital biological microscope can be used for educational applications in elementary and middle schools. They also can be used as hobby for biological applications and small items identification.





Viewing Head7-inch IPS LCD screen with wide visual angle, resolution 1024×600, Built-in 5.0MP CMOS camera, output 1920×1080 HD Video. 1*USB2.0 interface for mouse, 1* HDMI interface, 1* SD card slot.
Built-in CameraResolution: 5.0MP, 2592×1944
Image resolution: 2592×1944
Video resolution: 1920×1080
Pixel Size: 2.75×2.75μm
NosepieceTriple Nosepiece
ObjectiveAchromatic Objective 4×(185)
Achromatic Objective 10×(185)
Achromatic Objective 40×(185)
StagePlain Stage with Slide Clips 95×95mm
Plain Stage with Mechanical ruler 95×95mm/60×30mm
FocusingCoaxial Coarse and Fine Adjustment
CondenserSingle Lens NA 0.65 with Disc Diaphragm
IlluminationTransmitted LED Illumination, Brightness Adjustable; Top LED light
Spare PartsDust Cover
Power SupplyAC100-220V power adapter, microscope input voltage DC5V
Battery compartment (can use 3pcs AA batteries as the power supply)
PackageStyrofoam & Carton, Dimension 28×25×40 cm, 3kg
Note: ● Standard Outfit, ○ Optional
