Basic Student Biological Microscope
BS-2010
1

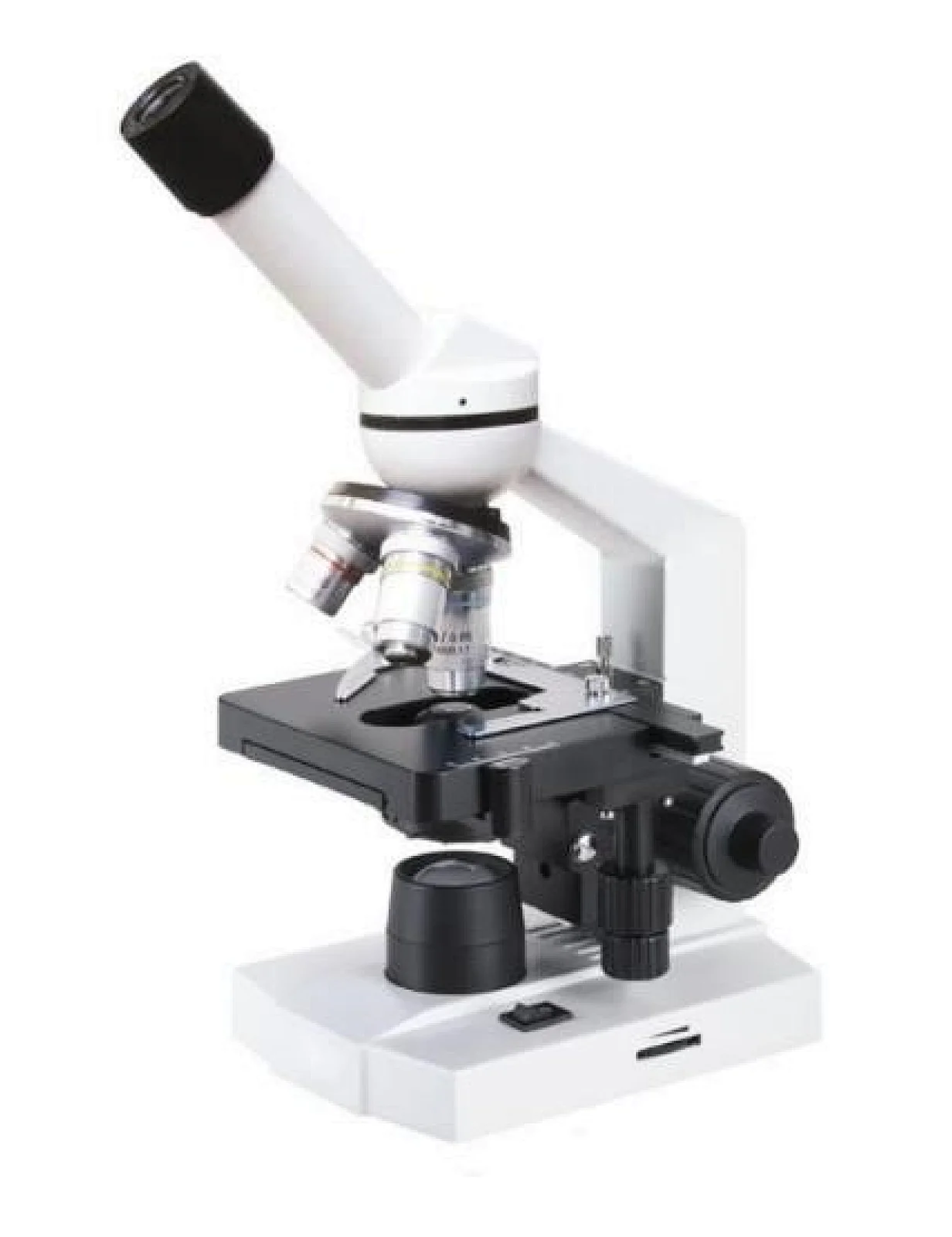

BS-2010 series biological microscopes are more comfortable and reliable operation with modern design. These microscopes are economical microscope with all basic features for educational use in elementary and middle school.
Quantity
Basic Student Biological Microscope
Introduction
BS-2010 series biological microscopes are more comfortable and reliable operation with modern design. These microscopes are economic microscope with all basic features for educational use in elementary and middle school.
2. Affordable price with reliable performance, long working life.
3. Smart and occupy small space.
Note: ● Standard Outfit, ○ Optional
Features
1. More comfortable and reliable operation with modern design.2. Affordable price with reliable performance, long working life.
3. Smart and occupy small space.
Applications
These microscopes are economical microscope with all basic features for educational use in elementary and middle schools.Specifications
| Item | Specification | RM1210 BS-2010D | RM1211 BS-2010E |
| Viewing Head | Monocular, Inclined at 45°, 360° Rotatable | ● | |
| Sliding Binocular Head, Inclined at 45°, 360° Rotatable, 55-75mm | ● | ||
| Eyepiece | WF10×/18mm | ● | ● |
| WF5×/20mm, WF16×/11mm, WF25×/8mm | ○ | ○ | |
| WF10×/18mm with Pointer | ○ | ○ | |
| Nosepiece | Triple Nosepiece | ● | |
| Quadruple Nosepiece | ● | ||
| Objective | Achromatic Objective 4×, 10×, 40×(S) | ● | ● |
| Achromatic Objective 20×, 60× | ○ | ○ | |
| Achromatic Objective 100× | ○ | ● | |
| Stage | Plain Stage with Slide Clips 110×120mm | ||
| Plain Stage with Attachable Mechanical ruler 110×120mm/ 60×30mm | |||
| Double Layers Mechanical Stage 110×120mm/ 70×20mm | ● | ● | |
| Focusing | Coaxial Coarse and Fine Adjustment, Moving Range 10mm | ● | ● |
| Condenser | Single Lens NA 0.65 with Iris Diaphragm | ||
| Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Spiral Adjustment for Condenser | |||
| Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser | ● | ● | |
| Illumination | 1W LED Illumination, Brightness Adjustable | ● | ● |
| Mirror | ○ | ○ | |
| Spare Parts | Dust Cover | ● | ● |
| Package | Styrofoam & Carton, Dimension 28×20×40 cm, 4kg | ● | ● |
| Wooden Case & Carton, Aluminum Case & Carton | ○ | ○ | |
| Power Supply | AC100-220V power adapter, microscope input voltage 5V | ● | ● |
