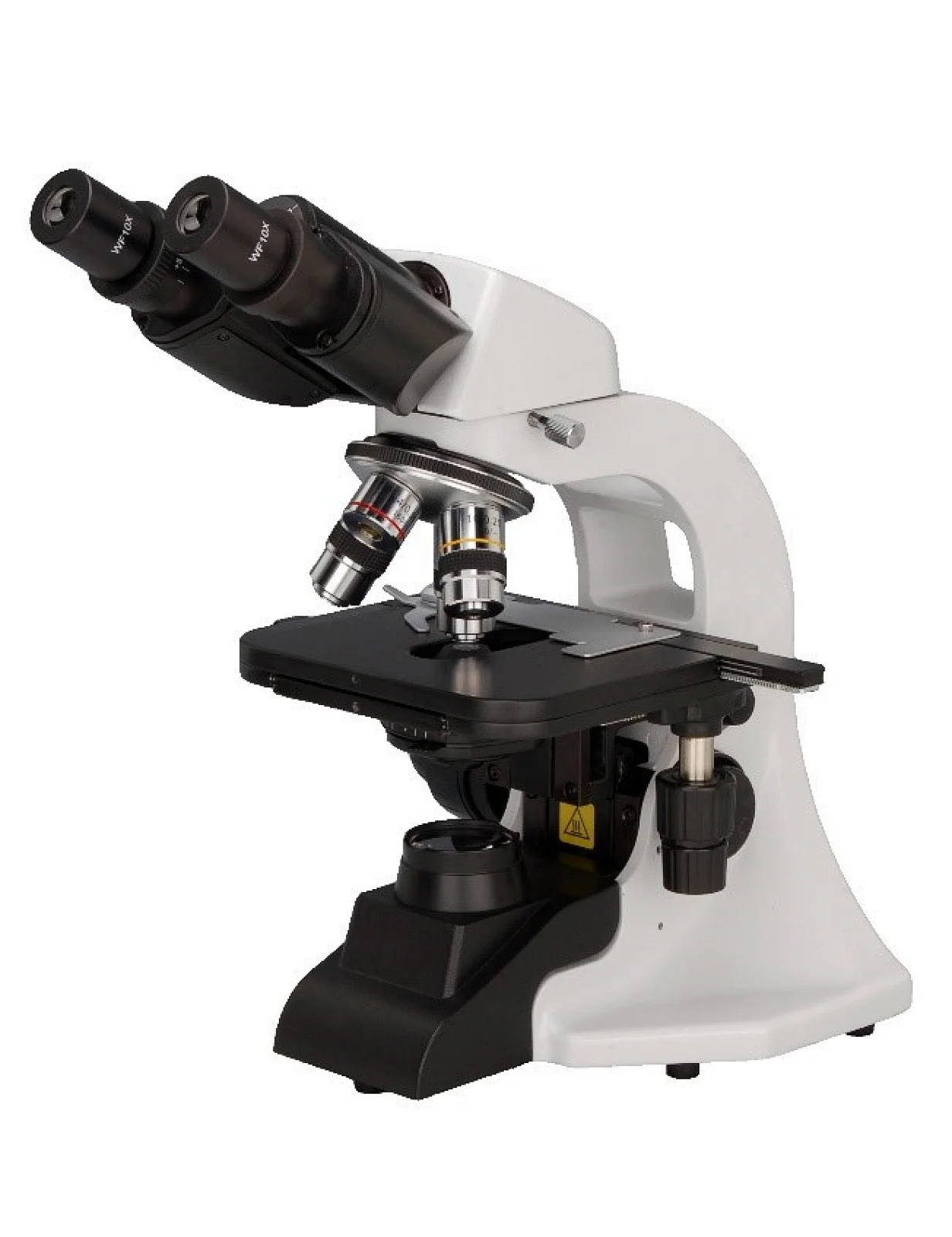

Economical Infinite Optical System Biological Microscope
BS-2023
1
Quantity
Economical Infinite Optical System Biological Microscope
Introduction
BS-2023 series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.
2. New machining facility and advanced alignment technology.
3. Comfortable operation with updated and ergonomic design.
4. LED light illumination, save energy and long working life.
5. Compact and flexible, ideally suited for desktop, laboratory worktable.
6. Eyepoint height and interpupillary distance can be adjusted to fit for observation.
Note: ● Standard Outfit, ○ Optional
Feature
1. Infinite optical system.2. New machining facility and advanced alignment technology.
3. Comfortable operation with updated and ergonomic design.
4. LED light illumination, save energy and long working life.
5. Compact and flexible, ideally suited for desktop, laboratory worktable.
6. Eyepoint height and interpupillary distance can be adjusted to fit for observation.
Application
BS-2023 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.Specification
| Item | Specification | RM1223 BS-2023B | RM1224 BS-2023T |
| Optical System | Infinite Optical System | ● | ● |
| Viewing Head | Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm, | ● | |
| Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm | ● | ||
| Eyepiece | WF10×/18mm | ● | ● |
| Objective | Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×(Oil) | ● | ● |
| Infinite Plan Achromatic Objective 20×, 60× | ○ | ○ | |
| Nosepiece | Quadruple Nosepiece | ● | ● |
| Stage | Double Layer Mechanical Stage 132×142mm/ 75×40mm | ● | ● |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm | ● | ● |
| Condenser | Abbe NA 1.25 with Iris Diaphragm | ● | ● |
| Illumination | 1W S-LED illumination, Brightness Adjustable | ● | ● |
| 12V/ 20W Halogen Lamp, Brightness Adjustable | ○ | ○ | |
| Kohler illumination | ○ | ○ | |
| Optional Accessories | Phase Contrast Kit | ○ | ○ |
| Dark Field Condenser | ○ | ○ | |
| Polarization Attachment | ○ | ○ | |
| Rechargeable battery | ○ | ○ | |
| Photo adapter for Nikon or Canon DSLR camera | ○ | ○ | |
| Video adapter: 1X or 0.5X C-mount adapter | ○ | ○ | |
| Package | 1pc/carton, 32cm*26cm*44cm, 6kg | ● | ● |
