BS-2030 Biological Microscope Compound microscope Binocular and Trinocular Microscope

Model NO.
BS-2030
Quantity:

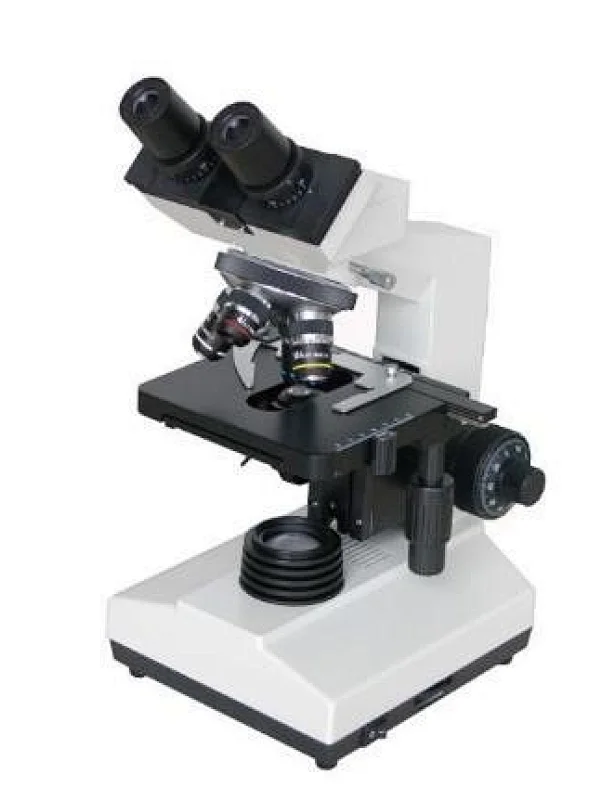

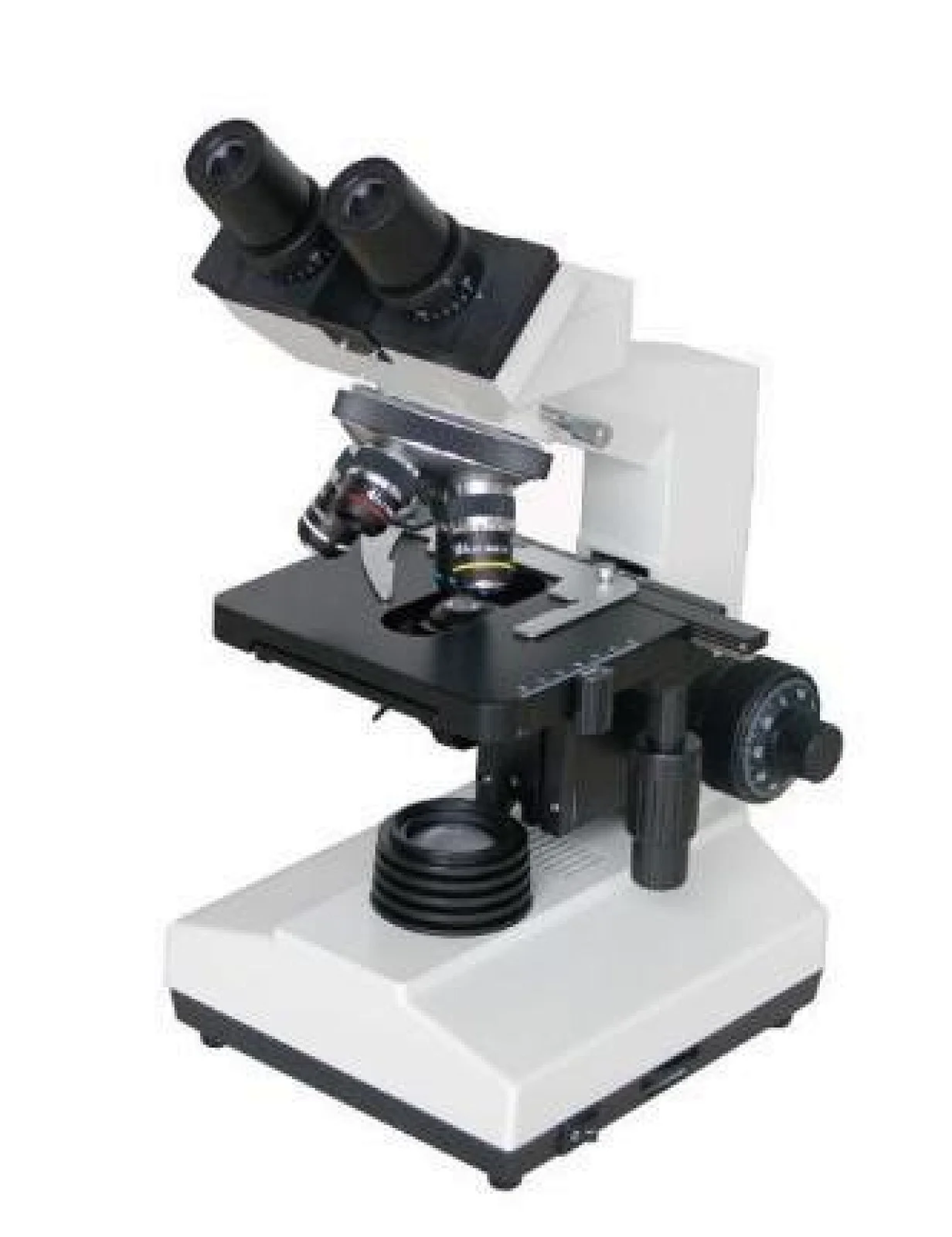

BS-2030 Biological Microscope Compound microscope Binocular and Trinocular Microscope
Introduction

With precision machining equipment and advanced alignment technology, BS-2030 series microscopes are classical biological microscopes. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Rechargeable battery(only for LED illumination) is optional for outdoors operation or places that power supply is not stable.

Feature

1. New machining facility and advanced alignment technology.
2. Comfortable operation with updated and ergonomic design;
3. Compact and flexible, ideally suited for desktop, laboratory worktable;
4. Interpupillary distance can be adjusted to fit for observation;
5. Support Windows Vista / Win 7 / Win8 / Win 10 / Mac Operation System. The software can preview, take photos and video, do image processing and measurement;
6. Support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish etc.).

Application

This binocular microscope is an ideal instrument in biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Specification

ItemSpecificationBS-2030BBS-2030T
Viewing HeadMonocular Head Inclined at 45°, 360° Rotatable
Sliding Binocular Head Inclined at 45°, 360° Rotatable; interpupillary distance 55-75mm.
Sliding Trinocular Head, inclined at 45 º and 360 º Rotatable, interpupillary distance 55-75mm
Seidentopf Binocular Head Inclined at 45°, 360° Rotatable; interpupillary distance 48-75mm.
Sliding Binocular Head with 1.3MP digital camera, Inclined at 45°, 360° Rotatable; interpupillary distance 55-75mm.
Anti-mould.
EyepieceWide Field Eyepiece WF10×/ 18mm
Wide Field Eyepiece WF16×/ 11mm
NosepieceQuadruple Nosepiece
Quintuple Nosepiece
ObjectiveAchromatic Objective 4×, 10×, 40×, 100×
Achromatic Objective 20×, 60×
Semi-Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×
Total magnificationsWith 10x eyepiece: 40×, 100×, 400×, 1000×
With 16x eyepiece: 64×, 160×, 640×, 1600×
StageDouble Layer Mechanical Stage 140×140mm/ 75×50mm
Left hand operation Double Layer Mechanical Stage 140×140mm/ 75×50mm
FocusCoaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
CondenserAbbe NA 1.25 with Iris Diaphragm & Filter
Illumination1W S-LED Illumination, Brightness Adjustable
6V/20W Halogen light, Brightness Adjustable
Plan-concave Mirror
Body / EnergyFirmAluminum Body and built in power supply 110-240V
Supplied withDust cover, immersion oil and user manual
Polarization SetSimple Polarization Set
Phase Contrast KitSimple phase contrast kit
Sliding phase contrast kit
Turret phase contrast kit
Dark Field AttachmentDark Field Attachment (Dry) NA0.9
Dark Field Attachment (Oil) NA1.25-1.36
Fluorescent AttachmentYX-2B Fluorescent Attachment
BatteryRechargeable battery (only for LED illumination)
Package1pc/carton, 33cm×28cm×44cm×, 7kg
Note: ●Standard Outfit, ○ Optional
