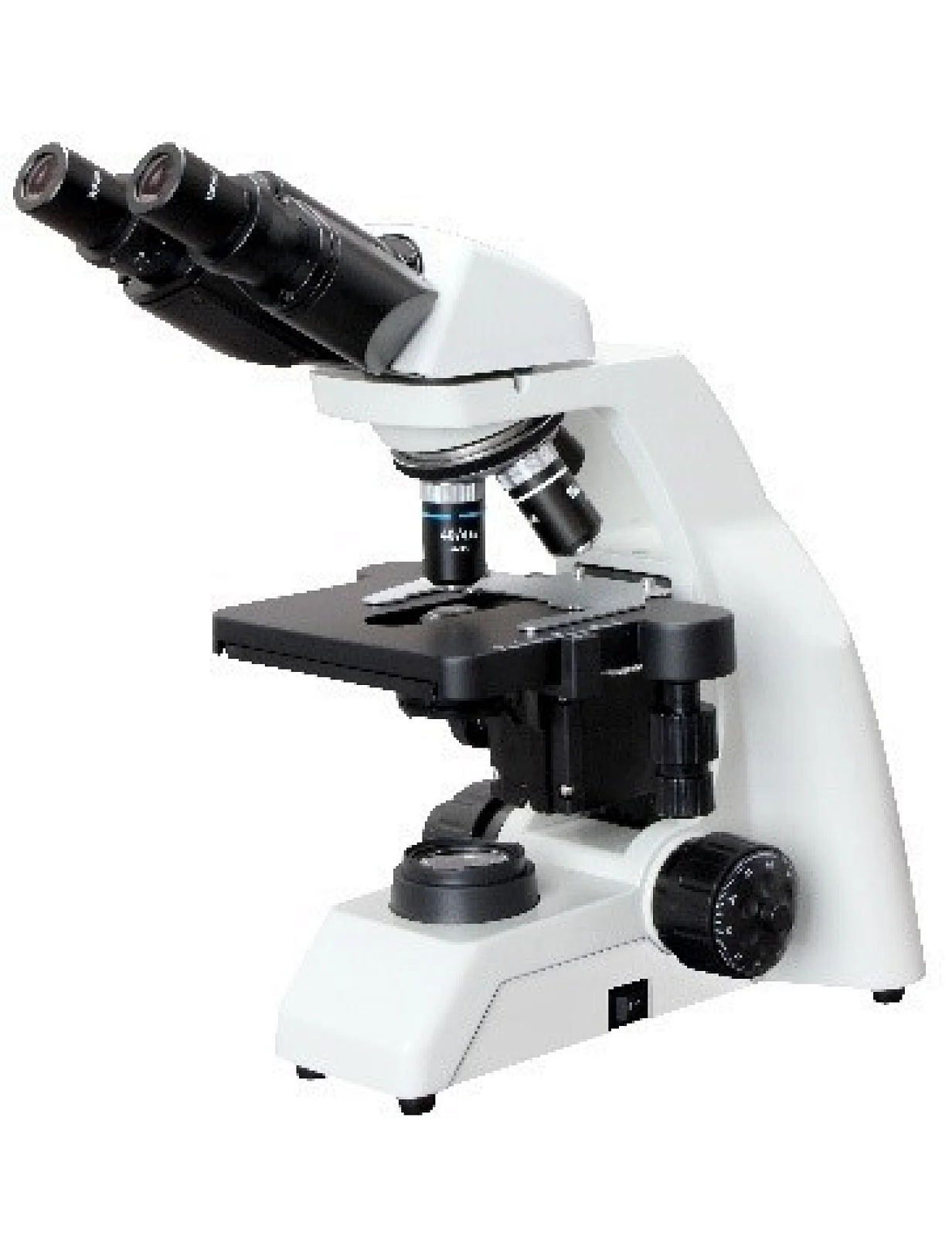

BS-2052 Biological Microscope with ECO function, Infinite Microscope System,Hospital Grade Microscope
BS-2052
Quantity
BS-2052 Biological Microscope with ECO function, Infinite Microscope System,Hospital Grade Microscope
Introduction
BS-2052 series microscopes are classical biological microscopes with ingenious stand, high definition optical system, sharp image and comfortable operation, which make your work much enjoyable. Feature
1. High contrast and sharp image with high quality optical system.2. Low environment requirement with Anti-mould technology.
3. Comfortable operation with low position coarse and fine adjustment knobs.
4. ECO function is optional, automatically turn off after 15 mins of no use.
5. With cord rest on the back, making the working table clean and tidy.
Application
BS-2052 series microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.Specification
| Item | Specification | BS-2052B (Plan, ECO) | BS-2052BT (Plan, ECO) |
| Optical System | Finite Optical System | ○ | ○ |
| Infinite Optical System | ● | ● | |
| Eyepiece | WF10×/18mm | ○ | ○ |
| WF10×/20mm | ● | ● | |
| Viewing Head | Monocular Head, inclined at 30° | ||
| Seidentopf Binocular Head, inclined at 30°, Interpupillary 47-78mm | ● | ○ | |
| Seidentopf Trinocular Head, inclined at 30°, Interpupillary 47-78mm | ○ | ● | |
| Digital Binocular Head with built-in camera, Inclined at 30°, Interpupillary Distance 47-78mm, 5.0MP, Support Wifi | ○ | ○ | |
| Digital Binocular Head with Tablet camera, Inclined at 30°, Interpupillary Distance 47-78mm, 5.0MP, 8” LCD, Android OS | ○ | ○ | |
| Objective | Finite Achromatic Objectives 4×, 10×, 40×, 100× | ||
| Finite Achromatic Objectives 20×, 60× | |||
| Finite Semi-Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100× | |||
| Finite Plan Achromatic Objectives 4×, 10×, 20×, 40×, 60×, 100× | |||
| Infinite Semi-Plan Achromatic Objectives 4×, 10×, 40×, 100× | ○ | ○ | |
| Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100× | ● | ● | |
| Infinite Plan Fluorescent Objective 4×, 10×, 20×, 40×, 100× | ○ | ○ | |
| Nosepiece | Backward Quadruple Nosepiece | ● | ● |
| Backward Quintuple Nosepiece | ○ | ○ | |
| Stage | Double Layers Mechanical Stage 140mm×140mm, Moving Range 75mm×50mm | ||
| Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm | ● | ● | |
| Condenser | Abbe Condenser NA1.25 | ● | ● |
| Dark Field Condenser (Dry / Oil) | ○ | ○ | |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | ● | ● |
| Illumination | S-LED Illumination, Brightness Adjustable | ● | ● |
| S-LED Illumination with Rechargeable Battery, Brightness Adjustable | ○ | ○ | |
| 6V/20W Halogen Lamp, Brightness Adjustable | ○ | ○ | |
| Kohler Illumination | ○ | ○ | |
| ECO Function, automatically turn off after 15 mins of no use | ● | ● | |
| Plane-concave Mirror | ○ | ○ | |
| Optional accessories | Phase Contrast Kit | ○ | ○ |
| Polarizing Set | ○ | ○ | |
| FL-LED Epi-fluorescent Attachment | ○ | ○ | |
| Package | 1pc/carton, 36*26*46mm, gross weight: 8kg | ● | ● |
