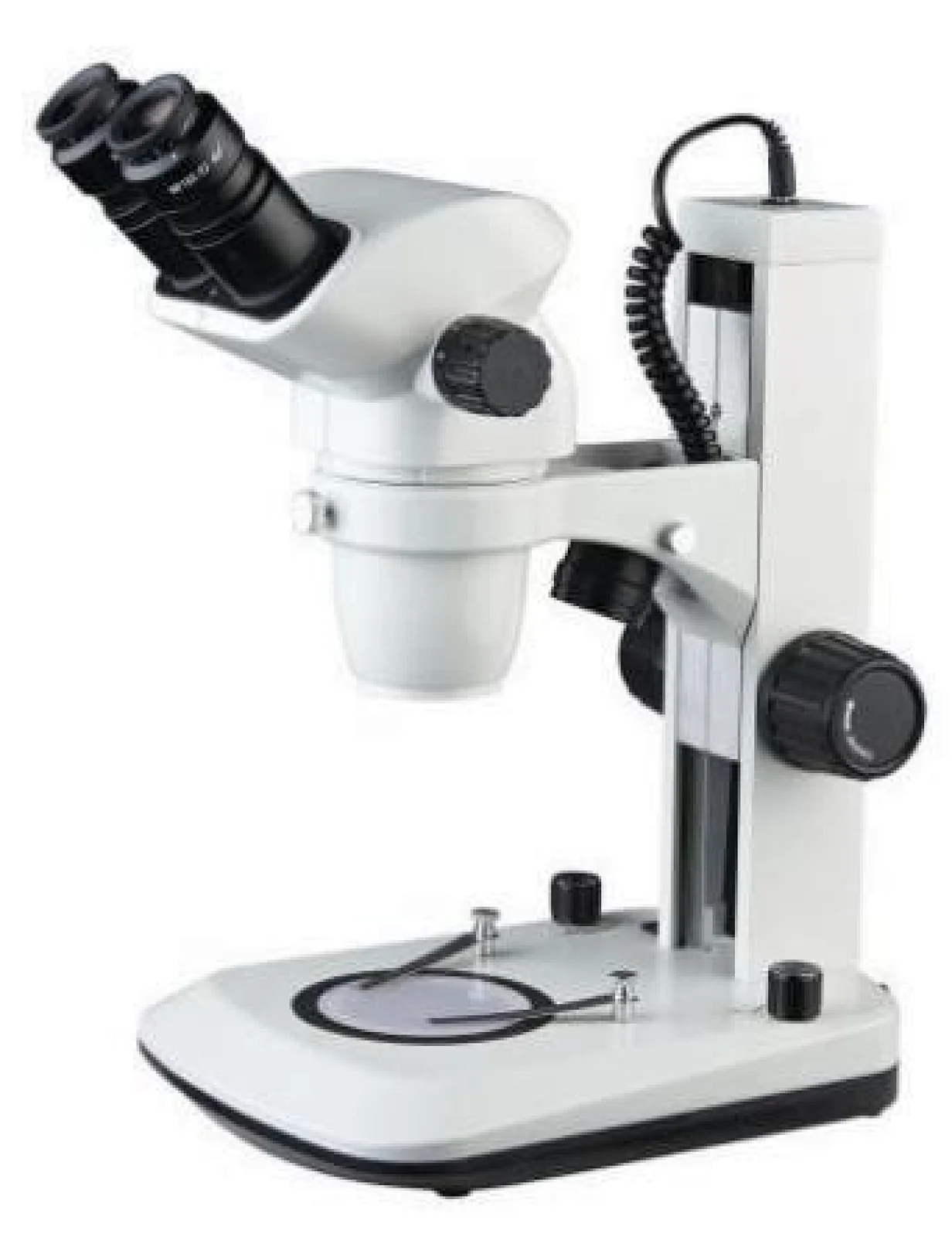

BS-3030 Zoom Stereo Microscope Dissecting Microscope for Electronics Inspection

Model NO.
BS-3030
Quantity:

BS-3030 Zoom Stereo Microscope Dissecting Microscope for Electronics Inspection

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3030 series Zoom Stereo Microscopes offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. Various stand, Cold light source and ring light are optional for these microscopes.


Feature

1. High quality and excellent cost performance.
2. Ergonomic design, sharp image display, wide viewing field and easy to operate.
3. Providing a wide viewing field of Φ22mm with the zoom ratio of 1:6.7, zoom range: 0.67×-4.5×.
4. Transmitted & Reflected 3W LED Illumination are available for BS-3030B and BS-3030BT.
5. Ideal instrument in academic, medical and industrial field.



Application

BS-3030 series stereo microscopes are of great value in a variety of applications such as school education, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.






Specification

ItemSpecificationBS-3030BBS-3030BT
Optical systemGreenough Optical System
Viewing HeadBinocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces
Trinocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces
EyepieceWF10×/Φ22mm
WF15×/Φ16 mm
WF20×/Φ12 mm
WF25×/Φ9 mm
WF30×/Φ8 mm
WF10×Φ22mm Eyepiece with cross line(Eyepiece micrometer)
ObjectiveZoom objective0.67×-4.5×
Auxiliary objective0.3×, W.D. 287mm
0.5×, W.D. 177mm
0.7×, W.D. 113mm
1.5×, W.D. 47mm
2×, W.D. 26mm
Zoom Ratio1:6.7
Magnification6.7×-45×
Working Distance105mm
FocusingCoarse focus knob with tension adjustable, moving range: 106mm. Focusing arm diameter: 76mm
Column Height300mm
500mm (used with 0.3× and 0.5× auxiliary objective)
Microscope Base Size205×275×22mm
205×275×40mm
IlluminationReflected illumination: 5V 3W LED
Transmitted illumination: 5V 3W LED
AttachmentPhoto Adapter (For Nikon, Canon, Olympus, Sony DSLR Cameras)
0.5× C-mount adapter (adjustable)
1× C-mount adapter
Package1pc/carton, 51cm*37cm*31cm, Net weight: 5.5kg, Gross weight: 6.5kg
Note: ● Standard Outfit, ○ Optional
