BS-3035 Zoom Stereo Microscope 3D Microscopy Image

Model NO.
BS-3035
Quantity:

BS-3035 Zoom Stereo Microscope 3D Microscopy Image

Introduction

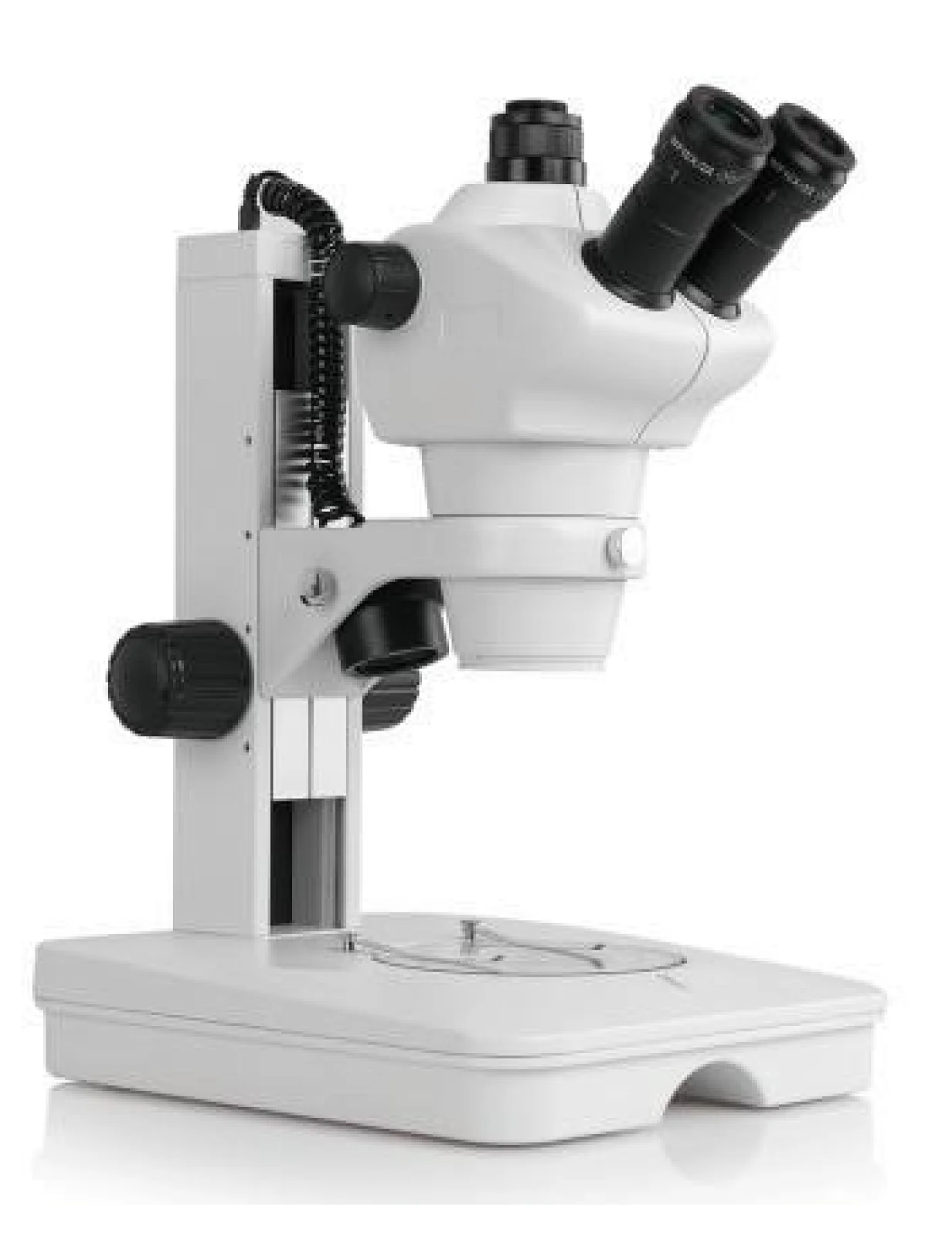

BS-3035 series Zoom Stereo Microscope offer sharp 3 D images with very competitive price. Optional auxiliary objectives, light source, stands and other accessories can fulfill different requirements.


Feature

1. Well-coated optical components, providing sharp and high contrast images and ensure large depth of field.
2. High quality optical system with zoom magnification 8×-50×, zoom ratio 1:6.3.
3. Various eyepieces, objectives and other accessories can meet different requirements.



Application

BS-3035 series stereo zoom microscope is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.








Specification

ItemSpecificationBS-3035B4BS-3035T4
Viewing HeadBinocular Head, Inclined at 45°, Interpupillary Distance 52-75mm
Trinocular Head, Inclined at 45°, Interpupillary Distance 52-75mm, 30:70 light distribution
EyepieceExtra wide field eyepiece EW10×/22mm
WF15×/16mm
WF20×/12.5mm
Zoom Objective0.8×-5×
Zoom Ratio6.3:1
Working Distance115mm
Auxiliary objective2×, WD 45mm
0.5×, WD 210mm
Stage PlateFrosted Glass Plate, Diameter 100mm
White&Black round plate, Diameter 100mm
Focusing UnitCoarse Focus Knob with tension adjustable, Moving range 100mm
IlluminationIncident Illumination 100V-240V/ LED
Transmitted Illumination 100V-240V/ LED
AttachmentPhoto Adapter (For Nikon, Canon, Olympus, Sony DSLR Cameras)
0.5X C-mount Adapter
Package1pc/carton, 36.5cm*31cm*52cm, 8.5kg
Note: ● Standard Outfit, ○ Optional
