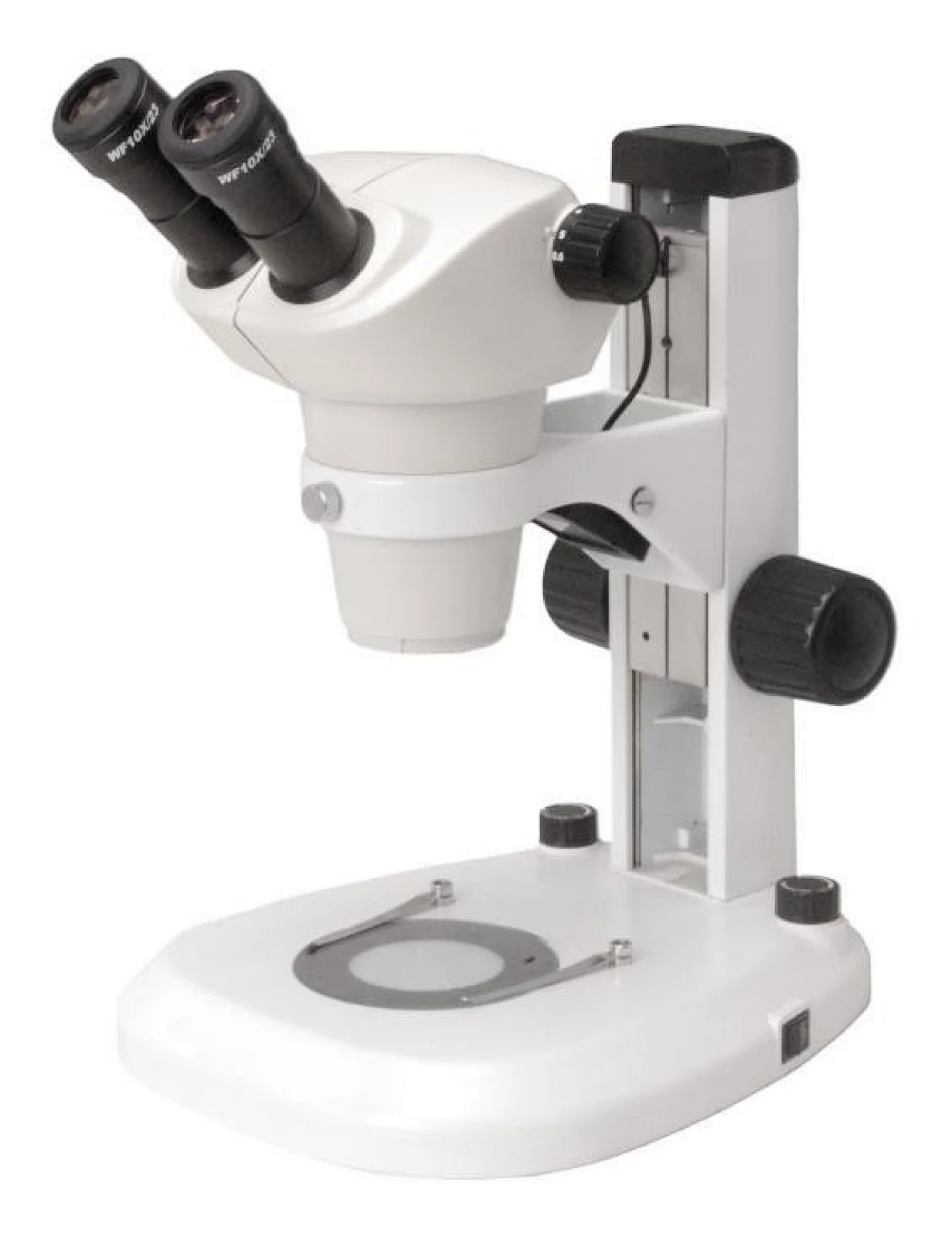

BS-3044 Binocular Zoom Stereo Microscope Dissecting Microscope

Model NO.
BS-3044
Quantity:

BS-3044 Binocular Zoom Stereo Microscope Dissecting Microscope

Introduction

BS-3044A/B Binocular Zoom Stereo Microscope offer upright, un-reversed 3 D images that remain in focus throughout the zoom range. They have zoom ratio of 1:8.3. Optional eyepieces and auxiliary objectives can be used to expand magnification range and working distances.


Feature

1. High zoom ratio of 1:8.3, zoom range of 0.6×-5×, large field of view up to Φ76mm.
2. High quality optical system, providing sharp and high contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
3. With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 60000 hours.
4. With complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.



Application

BS-3044A/B Binocular stereo zoom microscope can be used for circuit board repairing and inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.


Specification

ItemSpecificationBS-3044ABS-3044B
Viewing HeadBinocular Viewing Head, Inclined at 45°, Interpupillary Distance 55-75mm
EyepieceExtra wide field eyepiece WF10×/Φ23mm
WF15×/Φ16mm
WF20×/Φ12mm
WF30×/Φ9mm
Zoom Objective0.6×-5×
Zoom Ratio8.3:1
Working Distance115mm
Auxiliary objective0.5×, WD: 220mm
0.7×, WD: 125mm
2×,  WD: 45mm
Stage PlateGlass Insert Plate, Diameter 100mm
Glass Insert Plate, Diameter 125mm
White&Black round plate, Diameter 100mm
White&Black round plate, Diameter 125mm
Focusing UnitCoarse Focus Knob with tension adjustable, Moving range 105mm
IlluminationIncident Illumination 100V-240V/ LED
Transmitted Illumination 100V-240V/ LED
Video Adapter30mm adapter ring for 23.2mm eyepiece adapter
0.45×/0.5× C-mount adapter
Photo AdapterPhoto Adapter for Nikon or Canon DSLR camera
