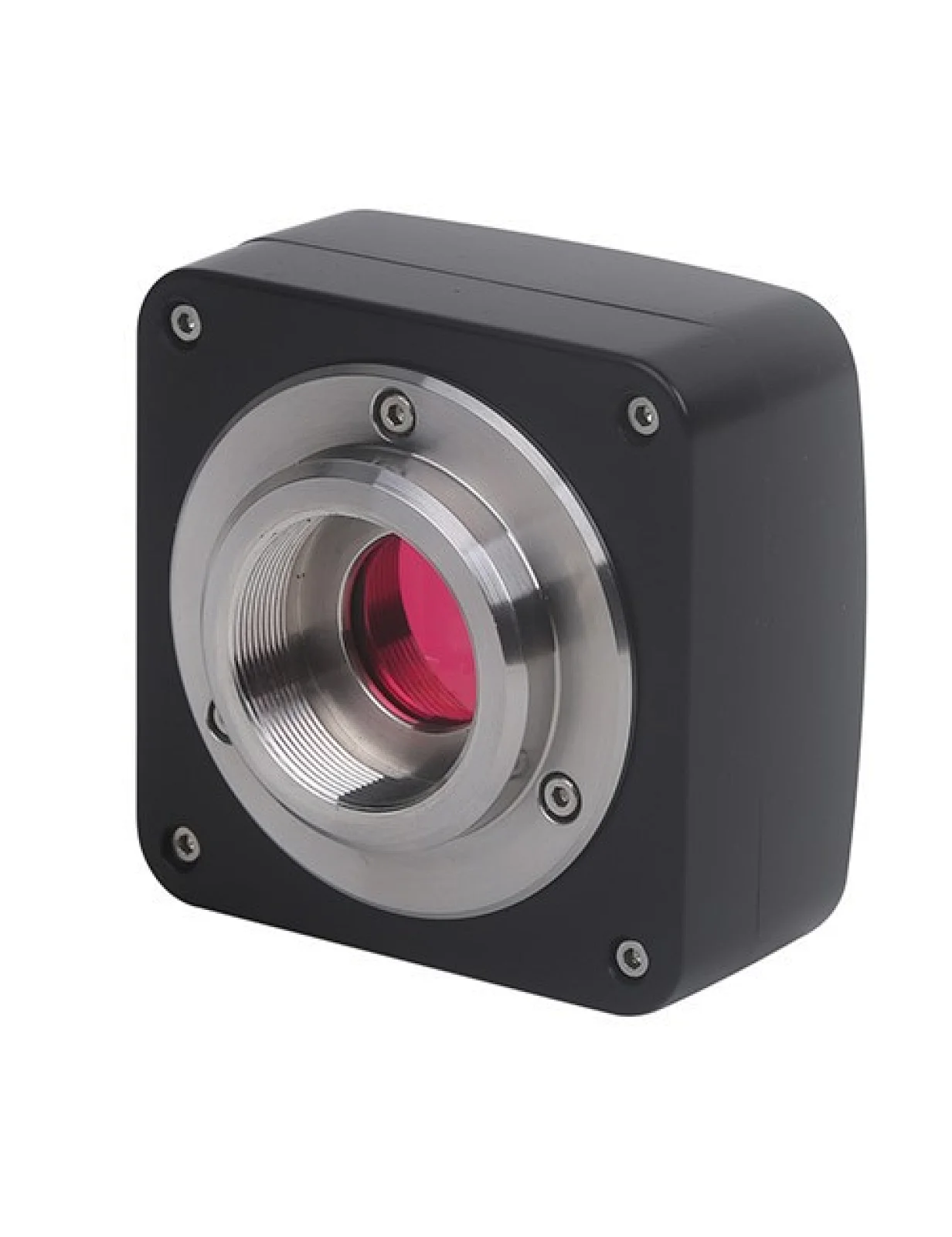

BUC1D Series C-mount USB2.0 CMOS Camera
BUC1D Series C-mount USB2.0 CMOS Camera
BUC1D Series C-mount USB2.0 CMOS Camera

BUC1D Series C-mount USB2.0 CMOS Camera

Model NO.
BUC1D
Quantity:
Introduction
BUC1D series cameras adopt ultra-high performance CMOS sensor as the image-capture device. USB2.0 is used as the data transfer interface.

BUC1D series cameras’ hardware resolutions ranges from 2.1MP to 12MP and come with the zinc aluminum alloy compact housing. BUC1D come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The BUC1D can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
Feature
1. Standard C-Mount camera with Sony or OnSemi CMOS sensor;
2. With hardware resolution among 2.10MP to 12MP;
3. USB2.0 interface ensuring high speed data transmission;
4. Integrated with large capacity memory chip ensures data synchronous transmission, low latency, high frame rate and stability;
5. Compatible with Microsoft USB Video Class protocol and support the third-party software development;
6. Built in Ultra-fine hardware ISP engine ensures high color restoration;
(1) Support automatic/manual exposure switching, accurate exposure time control, and real-time adjustment of exposure target area;
(2) Support automatic/manual/ROI white balance;
(3) Support color adjustment/color mode selection/image flipping;
(4) Support histogram adjust/flat field correction/dark field correction/video ROI;

7. High performance MJPEG compression algorithm, combined with the unique decoding method of image restoration algorithm ensure highest frame rate of USB2.0 camera in the industry. The FPS for 5MP and 8MP can be up to 30FPS; the FPS for 12MP can be up to 15FPS;
8. Comply with CE and FCC agreements;
9. CNC aluminum alloy housing;
10. With advanced video & image processing application ImageView;
11. Providing Windows/Linux/Mac OS multiple platforms SDK;
12. Very competitive pricing.
Specification
Order CodeSensor & Size(mm)Pixel(μm)GResponsivity
Dynamic range
SNRmax
FPS/ResolutionBinningExposure
BUC1D-1200C12M/IMX577(C)
1/2.3“ (5.95x4.71)
1.55x1.55250LSB
70dB
43dB
20@3840x3040
20@1920x1520
20@960x760
1x1
1x1
1x1
0.1-2000 ms
BUC1D-830C8.3M/IMX274(C)
1/2.5“ (6.22x3.50)
1.62x1.62236mV
70dB
43dB
30@3840x2160
30@1920x1080
30@1280x720

30@960x540
1x1
1x1
1x1
0.1-2000 ms
BUC1D-510AC5.1M/AR0521(C)
1/2.5“ (5.70x4.28)
2.2x2.218.8ke-/lus
73dB
40dB
30@2592x1944
30@1280x960
30@640x480
1x1
1x1
1x1
0.1-1000 ms
BUC1D-510BC5.1M/IMX335(C)
1/2.8“ (5.18x3.89)
2.0x2.0505mV
70dB
43dB
25@2592x1944
25@1280x960
25@640x480
1x1
1x1
1x1
0.1-2000 ms
BUC1D-310C3.1M/Aptina(C)
1/2.5“ (5.73x4.3)
2.8x2.818.8ke-/lus
73dB
40dB
30@2048x1536
30@1024x768
1x1
1x1
0.1-1000 ms
BUC1D-210C2.1M/IMX307(C)
1/2.8“ (5.73x4.3)
2.9x2.91300mV
73dB
43dB
38@1920x1080
38@1024x768
1x1
1x1
0.1-2000 ms
C: Color; M: Monochrome;

Other Specification for BUC1D Camera
Spectral Range380-650nm (with IR-cut Filter)
White BalanceAuto/Manual/ROI White Balance/Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color TechniqueUltra-fine hardware ISP engine /NA for Monochromatic Sensor
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System Still Picture and Movie
Cooling System* Natural
Operating Environment
Operating Temperature (in Centidegree)-10~ 50
Storage Temperature (in Centidegree)-20~ 60
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 5V over PC USB Port
Software Environment
Operating System Microsoft®Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory:2GB or More
USB Port:USB2.0 High-speed Port
Display:17” or Larger
CD-ROM
Dimension of BUC1D
The BUC1D body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
