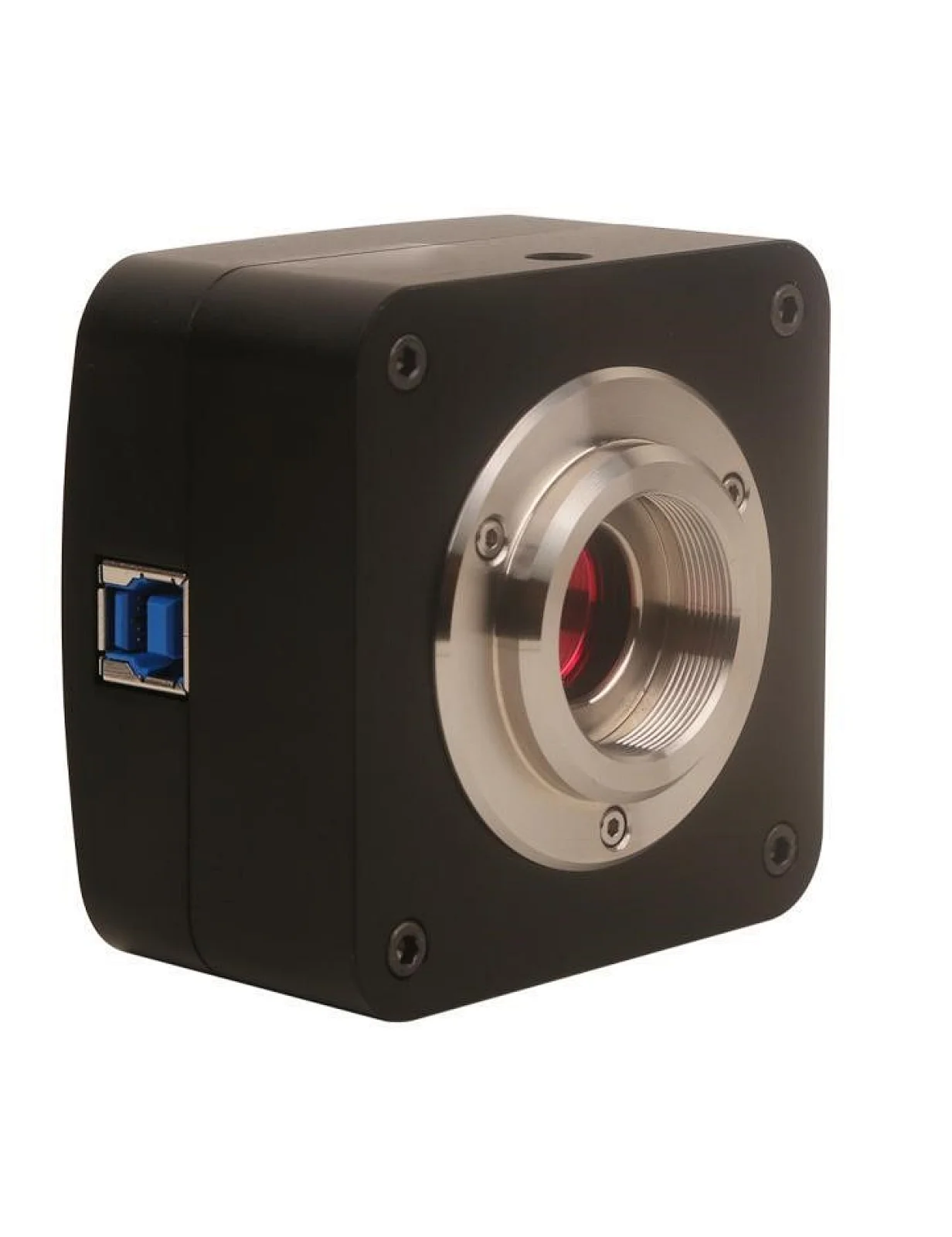

BUC5F Series C-mount USB3.0 CMOS Camera with SONY CMOS Sensor High Resolution Camera
BUC5F
Quantity
BUC5F Series C-mount USB3.0 CMOS Camera with SONY CMOS Sensor High Resolution Camera
BUC5F series USB3.0 digital cameras adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.
BUC5F series cameras hardware resolutions range from 1.5MP to 21MP and come with the integrated CNC aluminum alloy compact housing.
BUC5F series cameras integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit out. This will move the heavy burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.
BUC5F series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The BUC5F series cameras can be widely used in bright field, dark field, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.
FeatureThe basic characteristic of BUC5F series cameras are as follows:
1. SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
2. Real-time 8/12bit depth switch(depending on sensor);
3. Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates (Up to 17 frames for 21MP Resolution);
4. Super high sensitivity up to 2350mV(IMX385);
5. Ultra low noise and low power dissipation by using column-parallel A/D conversion;
6. With hardware resolution among 1.5M to 21M;
7. Rolling Shutter or Global Shutter;
8. Standard C-Mount camera;
9. CNC aluminum alloy housing;
10. With advanced video & image processing application ImageView;
11. Providing Windows/Linux/Mac OS multiple platforms SDK;
12. Native C/C++, C#/VB.Net, DirectShow, Twain, LabView.
Specification
Note: C: Color; M: Monochrome; GS: Global Shutter
Dimension
The BUC5F body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhouse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Company Pictures
Certificates
Why Choose Us
Payment & Delivery
BUC5F series USB3.0 digital cameras adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.
BUC5F series cameras hardware resolutions range from 1.5MP to 21MP and come with the integrated CNC aluminum alloy compact housing.
BUC5F series cameras integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit out. This will move the heavy burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.
BUC5F series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The BUC5F series cameras can be widely used in bright field, dark field, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.
FeatureThe basic characteristic of BUC5F series cameras are as follows:
1. SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
2. Real-time 8/12bit depth switch(depending on sensor);
3. Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates (Up to 17 frames for 21MP Resolution);
4. Super high sensitivity up to 2350mV(IMX385);
5. Ultra low noise and low power dissipation by using column-parallel A/D conversion;
6. With hardware resolution among 1.5M to 21M;
7. Rolling Shutter or Global Shutter;
8. Standard C-Mount camera;
9. CNC aluminum alloy housing;
10. With advanced video & image processing application ImageView;
11. Providing Windows/Linux/Mac OS multiple platforms SDK;
12. Native C/C++, C#/VB.Net, DirectShow, Twain, LabView.
Specification
| Order Code | Sensor & Size(mm) | Pixel Size(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
| BUC5F-2000C | 20M/IMX183(C) 1”(13.06x8.76) | 2.4 x2.4 | 462mv with 1/30s 0.21mv with 1/30s | 15@5440x3648 50@2736x1824 60@1824x1216 | 1x1 2x2 3x3 | 0.1ms~15s |
| BUC5F-1800C | 18M/SONY Special(C) 1/2.2” (5.86x4.46) | 1.2 x1.2 | 130mv with 1/30s 0.1mv with 1/30s | 17@4880x3720 40@2448x1836 50@1728x1296 | 1x1 2x2 3x3 | 0.1ms~15s |
| BUC5F-1200C | 12M/IMX226(C) 1/1.7“(7.40x5.55) | 1.85x1.85 | 280mv with 1/30s 0.1mv with 1/30s | 25@4000x3000 50@2048x1080 | 1x1 2x2 | 0.1ms~15s |
| BUC5F-830C | 8.3M/IMX274(C) 1/2.5”(6.22x3.50) | 1.62x1.62 | 236mv with 1/30s 0.1mv with 1/30s | 32@3840x2160 65@1920x1080 | 1x1 2x2 | 0.244ms~15s |
| BUC5F-830BC | 8.3M/IMX334(C) 1/1.8”(7.68x4.32) | 2.0x2.0 | 505mv with 1/30s 0.1mv with 1/30s | 35@3840x2160 60@1920x1080 | 1x1 2x2 | 0.02ms~15s |
| BUC5F-830CC | 8.3M/IMX485(C) 1/1.2”(11.14x6.26) | 2.9x2.9 | 2188mv with 1/30s 0.15mv with 1/30s | 45@3840x2160 70@1920x1080 | 1x1 2x2 | 0.02ms~15s |
| BUC5F-500C | 5.0M/IMX264(C,GS) 2/3” (8.45x7.07) | 3.45x3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 35@2448x2048 50@1224x1024 | 1x1 1x1 | 0.1ms~15s |
| BUC5F-310C | 3.1M/IMX123(C) 1/2.8“ (5.12x3.84) | 2.5x2.5 | 600mv with 1/30s 0.15mv with 1/30s | 50@2048x1536 50@1920x1080 | 1x1 1x1 | 0.1ms~15s |
| BUC5F-310BC | 3.1M/IMX265(C,GS) 1/1.8“ (7.07x5.30) | 3.45x3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 53@2048x1536 85@1024x768 | 1x1 1x1 | 0.1ms~15s |
| Other Specification for BUC5F Series Cameras | |
| Spectral Range | 380-650nm (with IR-cut Filter) |
| White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Technique | Ultra-fineTM HISPVP /NA for Monochromatic Sensor |
| Capture/Control API | Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| Operating Environment | |
| Operating Temperature (in Centigrade) | -10~ 50 |
| Storage Temperature (in Centigrade) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| Software Environment | |
| Operating System | Microsoft®Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB Port: USB3.0 High-speed Port | |
| Display: 17” or Larger | |
| CD-ROM | |
Dimension
The BUC5F body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhouse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
