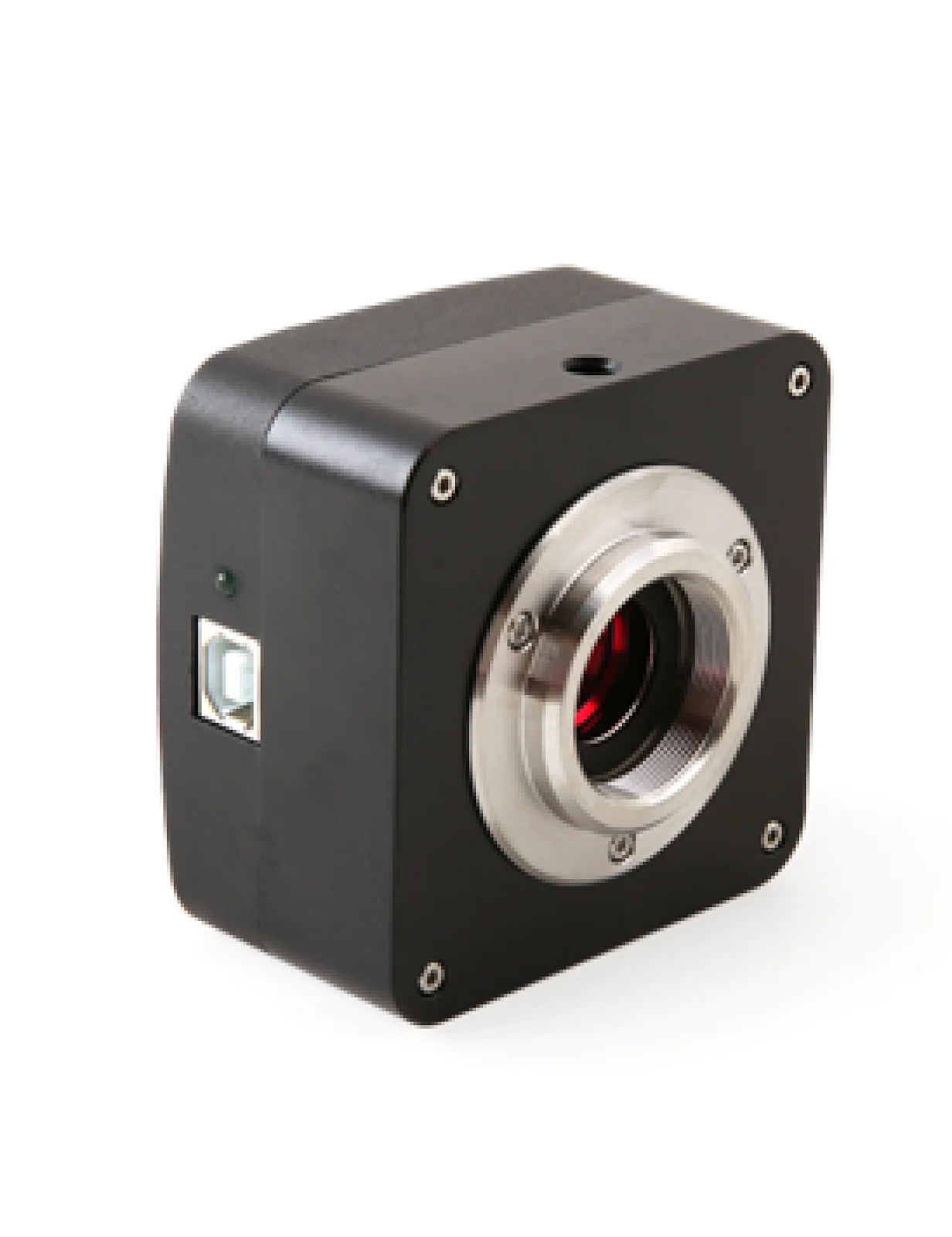

BWC Series C-mount WiFi CMOS Camera
BWC Series C-mount WiFi CMOS Camera
BWC Series C-mount WiFi CMOS Camera

BWC Series C-mount WiFi CMOS Camera

Model NO.
BWC-1080,BWC-720
Quantity:
Introduction
BWC series cameras are WiFi cameras and they adopt ultra-high performance CMOS sensor as the image capture device. WiFi is used as the data transfer interface.
When a BWC camera is attached to the eyepiece or trinocular head of a microscope and started, it will generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously.
The camera includes ImageView image software for quantifying, measuring and annotating images and for using with an interactive white board. It also works with the free, downloadable ImageView app for viewing, capturing, and editing images.
Features
The basic characteristic of BWC cameras are as follows:
1. C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch;
2. Scientific research grade camera with Aptina CMOS sensor;
3. Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers and tablets with iOS, Android and Windows operating systems;
4. Streams images to several devices simultaneously;
5. Integrated zinc aluminum alloy housing;
6. Ultra-FineTM color engine with perfect color reproduction capability;
7. With advanced video & image processing application ImageView (only support simple video viewing capturing for IOS/ android system);
8. Custom programmable with SDK provided(Windows/Linux/OS).

Specification
Order CodeSensor Size(mm)Pixel(μm)GResponsivity
Dynamic range
SNRmax
FPS/ResolutionBinningExposure(ms)
BWC-10801080P/IMX222(C)
1/2.8“ (5.38x3.02)
2.8x2.8510mV with 1/30s
0.15mv with 1/30s
25@1920x10801x10.059ms~1941ms
BWC-720720P/MT9P001(C)
1/2.5“ (5.63x3.17))
2.2x2.21.0 V/lux-sec
61dB
43dB
10@1280x7202x2Auto Exposure
C: Color; M: Monochrome;

Other Specification for BWC Camera
Spectral Range380-650nm (with IR-cut Filter)
White BalanceWhole Area White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color TechniqueUltra-FineTM Color Engine/NA for Monochromatic Sensor
Capture/Control APINative C/C++, C#/VB.NET, DirectShow, Twain and Labview
Recording SystemStill Picture and Movie
Cooling SystemNatural
Maximum Connected Devices<=3
Operating Environment
Operating Temperature(in Centigrade)-10~ 50
Storage Temperature(in Centigrade)-20~ 60
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyUSB Charger, Not Recommend PC USB Port
Software Environment
Operating System Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
IOS IPAD or IPhone, Android PAD and Phone
PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory:2GB or More
WiFi Adapter with DHCP Enabled
Display:17” or Larger
CD-ROM
PADIPAD or PAD with Android System
Mobile Phone IPhone or Smart Phone with Android System
