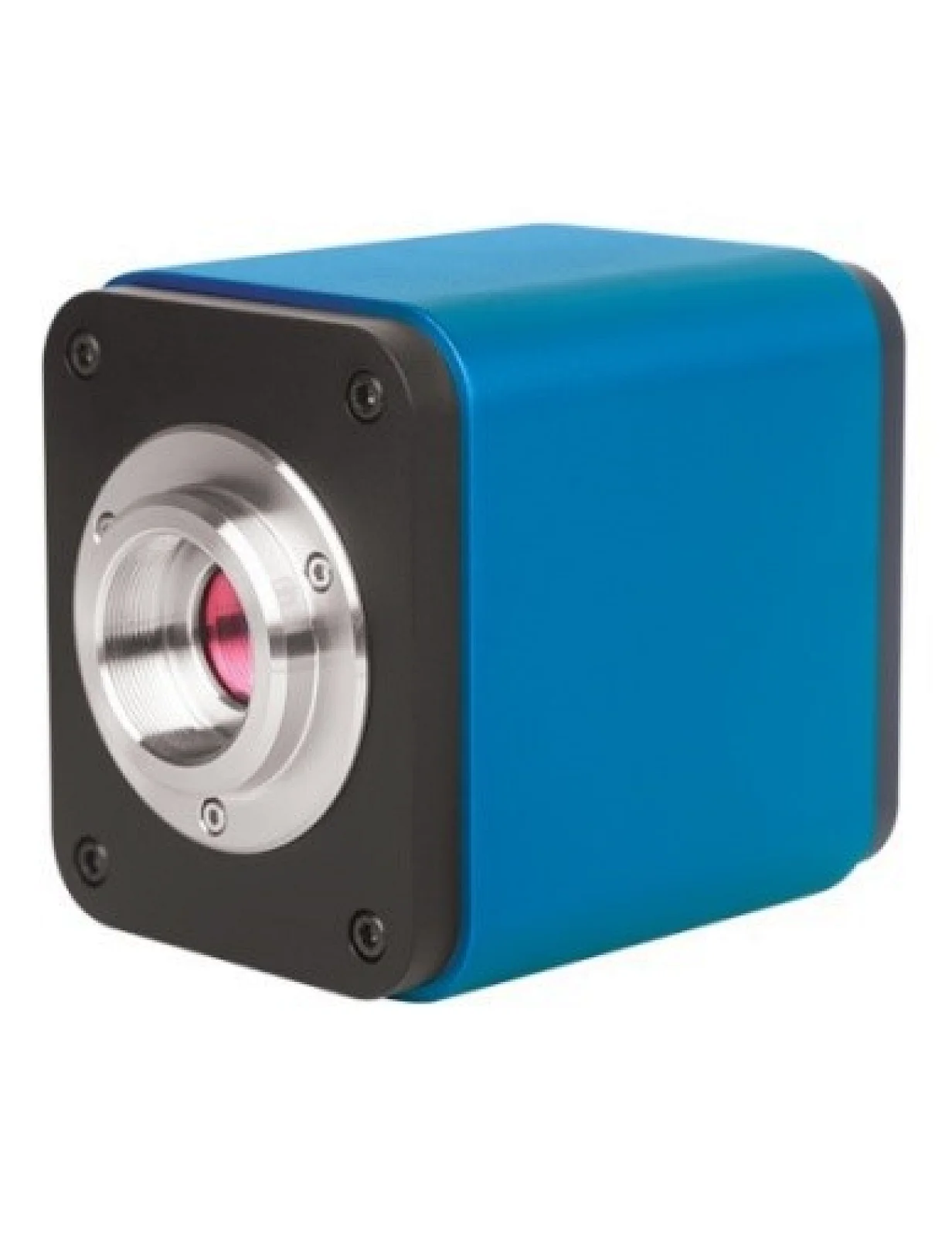

BWHC Series C-mount WIFI+HDMI CMOS Camera with Sony High Sensitivity CMOS Sensor
Introduction
BWHC series cameras are multiple interfaces (HDMI+WIFI+SD card) CMOS cameras and they adopt ultra-high performance Sony CMOS sensor as the image capture device. HDMI+WIFI are used as the data transfer interface to HDMI display or computer.
For HDMI out, The XCamView software will be loaded and a camera control panel and toolbar are displayed on the HDMI screen, in this case, the USB mouse can be used to control the camera, browse and compare the captured image, play back the video.
For WIFI out, unplug the mouse and plug in the USB WIFI adapter, connect the computer WIFI to the camera, then the video stream can be transferred to computer with the advanced software ImageView. With ImageView, you can control the camera, process the image as other USB series camera.
Features
The BWHC cameras’ basic characteristic is as follows:
1. All in 1( HDMI+WIFI) C-mount camera with Sony high sensitivity CMOS sensor;
2. For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XCamView.;
3. 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
4. For HDMI application, 5.04M resolution image(2592*1944BWHC-1080B) or 2.0M resolution image(1920*1080BWHC-1080D/E) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
5. With the USB WIFI adapter, the BWHC-1080B/D/E can be used as WIFI camera, the ImageView/ImageLite advanced image processing software is used to view the video and capture image, support plug and play application;
6. Ultra-Fine color engine with perfect color reproduction capability(WIFI);
7. With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB).
Application
BWHC-1080B/D can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
The possible application of BWHC-1080B/D/E is as follows:
1. Scientific research, education (teaching, demonstration and academic exchanges);
2. Digital laboratory, medical research;
3. Industrial visual (PCB examination, IC quality control);
4. Medical treatment (pathological observation);
5. Food (microbial colony observation and counting);
6. Aerospace, military (high sophisticated weapons).
Specification
C: Color; M: Monochrome; GS: Global Shutter
Company Pictures
Certificates
Why Choose Us
Payment & Delivery
Introduction
BWHC series cameras are multiple interfaces (HDMI+WIFI+SD card) CMOS cameras and they adopt ultra-high performance Sony CMOS sensor as the image capture device. HDMI+WIFI are used as the data transfer interface to HDMI display or computer.
For HDMI out, The XCamView software will be loaded and a camera control panel and toolbar are displayed on the HDMI screen, in this case, the USB mouse can be used to control the camera, browse and compare the captured image, play back the video.
For WIFI out, unplug the mouse and plug in the USB WIFI adapter, connect the computer WIFI to the camera, then the video stream can be transferred to computer with the advanced software ImageView. With ImageView, you can control the camera, process the image as other USB series camera.
Features
The BWHC cameras’ basic characteristic is as follows:
1. All in 1( HDMI+WIFI) C-mount camera with Sony high sensitivity CMOS sensor;
2. For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XCamView.;
3. 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
4. For HDMI application, 5.04M resolution image(2592*1944BWHC-1080B) or 2.0M resolution image(1920*1080BWHC-1080D/E) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
5. With the USB WIFI adapter, the BWHC-1080B/D/E can be used as WIFI camera, the ImageView/ImageLite advanced image processing software is used to view the video and capture image, support plug and play application;
6. Ultra-Fine color engine with perfect color reproduction capability(WIFI);
7. With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB).
Application
BWHC-1080B/D can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
The possible application of BWHC-1080B/D/E is as follows:
1. Scientific research, education (teaching, demonstration and academic exchanges);
2. Digital laboratory, medical research;
3. Industrial visual (PCB examination, IC quality control);
4. Medical treatment (pathological observation);
5. Food (microbial colony observation and counting);
6. Aerospace, military (high sophisticated weapons).
Specification
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
| BWHC-1080B | 1080P/5M/Sony IMX178(C) 1/1.8"(6.22x4.67) | 2.4x2.4 | 425mv with 1/30s 0.15mv with 1/30s | 30@1920*1080(HDMI) 25@1920*1080(WiFi) | 1x1 | 0.03ms~918ms |
| BWHC-1080D | 1080P/2M/Sony IMX185(C) 1/1.9"(7.20x4.05) | 3.75x3.75 | 1120mv with 1/30s 0.15mv with 1/30s | 30@1920*1080(HDMI) 25@1920*1080(WiFi) | 1x1 | 0.06ms~918ms |
| BWHC-1080E | Sony IMX249(C,GS) 1/1.2"(11.25x6.33) | 5.86*5.86 | 1016mv with 1/30s 0.15mv with 1/30s | 30@1920*1080(HDMI) 25@1920*1080(WiFi) | 1x1 | 0.043ms~1000ms |
| Interface & Button Functions | |||
| USB | USB Mouse/USB WIFI Adapter | ||
| HDMI | HDMI Out | ||
| DC12V | 12V Power in | ||
| SD | SD Card Slot | ||
| ON/OFF | Power On/off Switch | ||
| LED | Power Indicator | ||
| Other Specification for HDMI Out | |||
| UI Operation | With USB Mouse to Operate on the embedded XCamView | ||
| Image Capture | JPEG Format with 5M Resolution (2592*1944) in SD Card(8G)(BWHC-1080B) JPEG Format with 2M Resolution in SD Card(8G)(BWHC-1080D/E) | ||
| Video Record | ASF Format 1080P 30fps in SD Card(8G) | ||
| Camera Control Panel | IncludingExposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | ||
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information | ||
| Other Specification for WIFI Out | |||
| UI Operation | ImageView or ImageLite on Windows/Linux/OSX/Android Platform | ||
| WIFI Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) | ||
| Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) | ||
| White Balance | Auto White Balance | ||
| Color Technique | Ultra-FineTM Color Engine(WIFI) | ||
| Capture/Control API | Standard SDK for Windows/Linux/Mac(WIFI) | ||
| Recording System | Still Picture or Movie (WIFI) | ||
| Software Environment (for USB2.0 Connection) | |||
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit) OSx(Mac OS X) Linux | ||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||
| Memory:4GB or More | |||
| USB Port:USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer) | |||
| Display:19” or Larger | |||
| CD-ROM | |||
| Operating Environment | |||
| Operating Temperature(in Centigrade) | -10~ 50 | ||
| Storage Temperature (in Centigrade) | -20~ 60 | ||
| Operating Humidity | 30~80%RH | ||
| Storage Humidity | 10~60%RH | ||
| Power Supply | DC 12V/1A Adapter | ||
