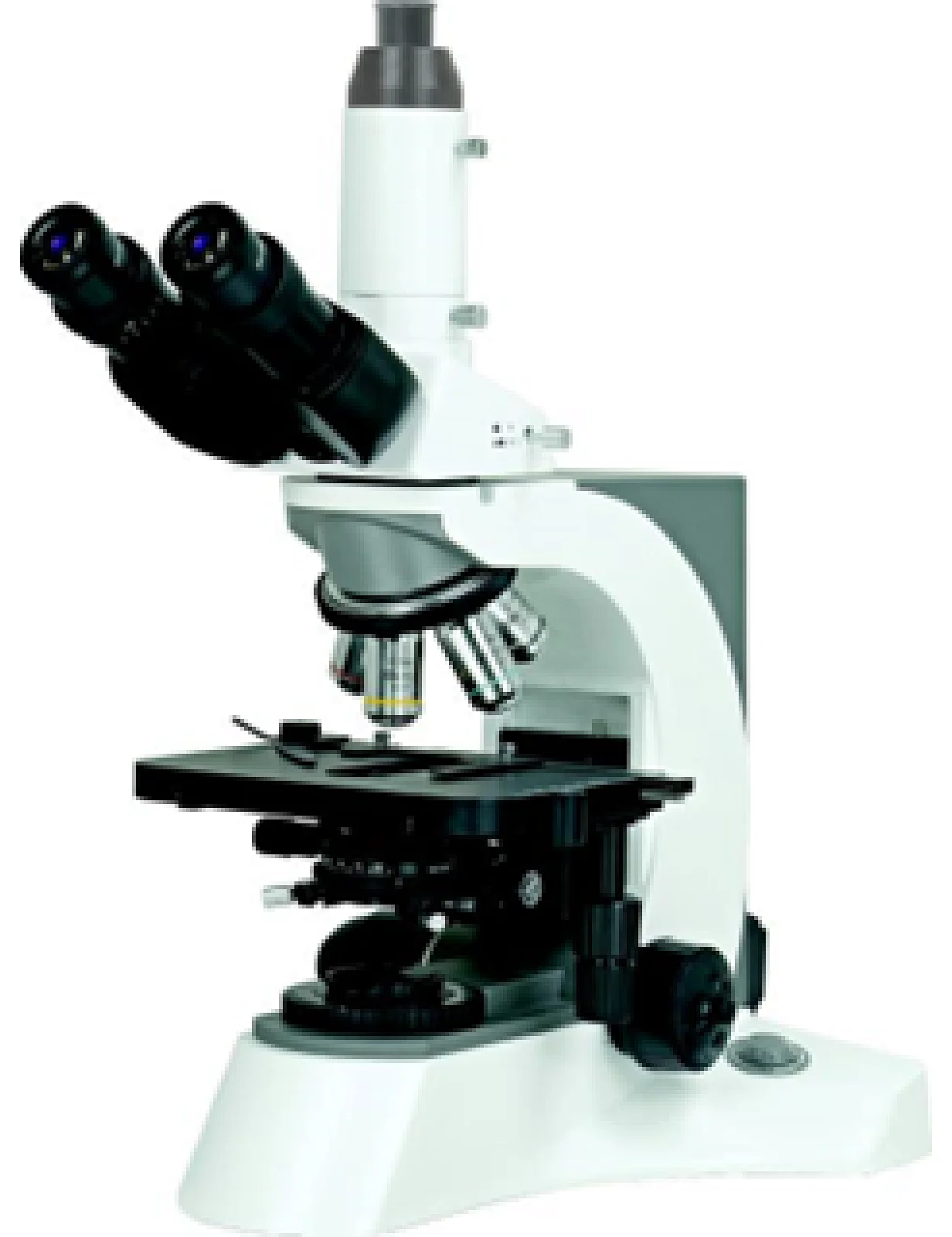

Classic Laboratory Research Biological Microscope
Introduction
This Laboratory Biological Microscope is a high level microscope which is specially designed for laboratory research. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this laboratory biological microscope makes your laboratory works enjoyable.
Feature
1. With Infinite Optical System, Kohler Illumination, providing excellent optical quality and making Image perfect.
2. With low and forward position of coarse and fine coaxial focus system, focusing knobs and brightness adjustable knob within reaching location, stable integral structure, and reasonable ergonomic design, making operators feel more comfortable and effective.
Application
This microscope is an ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
Specification
Item | Specification | RM1280 BS-2080 | |
Optical System | Infinite Optical System | ● | |
Viewing Head | Siedentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | ● | |
5°-35° Tiltable Binocular/ Trinocular Head | ○ | ||
Eyepiece | Extra Wide Field Eyepiece EW10×/ 22mm, Eyepiece Tube Diameter 30mm | ● | |
Nosepiece | Backward Quintuple Nosepiece | ● | |
Backward Sextuple Nosepiece | ○ | ||
Objective | Infinite Plan Achromatic Objective | 2×/0.05, W.D.=18.3mm | ○ |
4×/0.10, W.D.=17.3mm | ● | ||
10×/0.25, W.D.=10mm | ● | ||
20×/0.40, W.D.=5.1mm | ○ | ||
40×/0.65(S), W.D.=0.54mm | ● | ||
60×/0.8(S), W.D.=0.14mm | ○ | ||
100×/1.25(S, Oil), W.D.=0.13mm | ● | ||
Infinite Plan Fluorescent Objective | 4×/0.13, W.D.=16.3mm | ○ | |
10×/0.30, W.D.=12.4mm | ○ | ||
20×/0.50, W.D.=1.5mm | ○ | ||
40×/0.75(S), W.D.=0.35mm | ○ | ||
100×/1.3(S, Oil), W.D.=0.13mm | ○ | ||
Condenser | Swing-out Condenser NA 0.9/ 0.25 | ● | |
Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm | ● | |
Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm | ● | |
Illumination | External Illumination, Aspherical Collector with Kohler Illumination, Halogen Lamp 6V/30W, Brightness Adjustable | ● | |
External Illumination, Aspherical Collector with Kohler Illumination, Halogen Lamp 24V/100W, Brightness Adjustable | ○ | ||
3W LED Illumination, Brightness Adjustable | ○ | ||
5W LED Illumination, Brightness Adjustable | ○ | ||
Video Adapter | C-Mount 1× | ○ | |
C-Mount 0.5× | ○ | ||
Filter | Blue Filter | ● | |
Green Filter | ● | ||
Dark Field Attachment | Dark-field Condenser(Dry) | ○ | |
Dark-field Condenser(Oil) | ○ | ||
Accessories | Photo Attachment for Nikon or Canon DSLR cameras | ○ | |
Polarization Attachment | ○ | ||
Turret Phase Contrast Kit | ○ | ||
FL-800 Epi-fluorescent Attachment | ○ | ||
FL-LED Epi-fluorescent Attachment | ○ | ||
Temperature Control Stage | ○ | ||
Package | 1carton/set, 43.5cm*39.5cm*59cm, 14kg | ● | |
Note: ● Standard Outfit, ○ Optional
