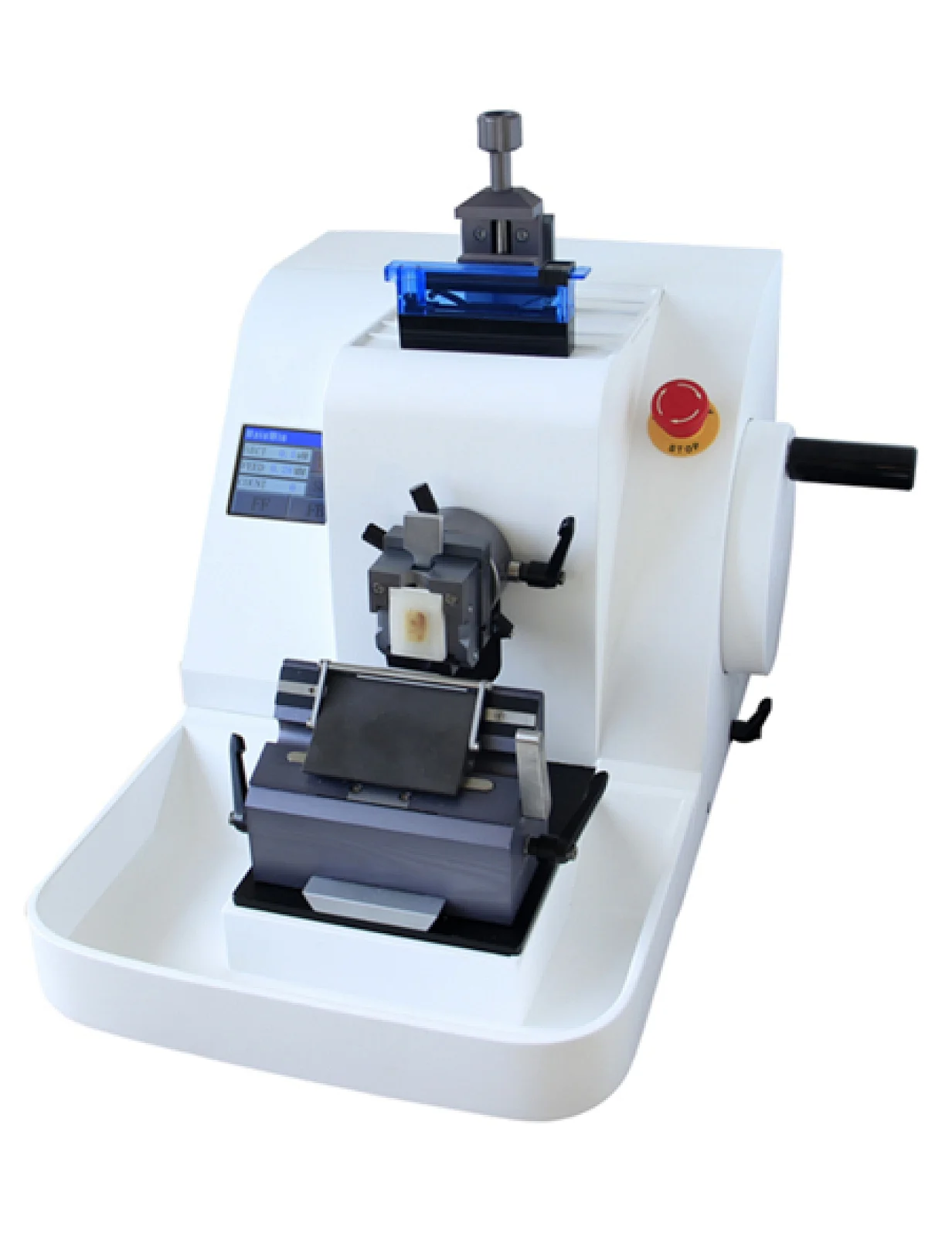

Featured Histopathology Semi Automatic Rotary Microtome

This model is one of our most popular models, adopts the international advanced design concept, more in line with ergonomic design, and the parts are mainly imported: stepper motor feeding system; high precision cross ball guide; circulating ball screw and other precision parts make the slicing precision higher.


* Touch Screen Panel

* Adopted Germany stepper motor ensure section more precisely, more reliable and quiet.

* The touch screen panel shows section and trimming thickness, section counter, distance stroke of Clamp, easy to do adjustment of Trimming or Section thickness in the touch screen panel

* Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer.

* The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible * Optional Blade carrier which can use Steel Knife or Blade Holder

* Universal cassette clamp and standard specimen clamp

* The waste tray can be disassembled easily

* Sample orientation:8°along the X-Y-axis, rotate 360°

* Safety alarm system, overload protection function, sleep mode protection

* The special blade carrier can use high profile blade or low profile blade

* Blade carrier have angle adjustment

* Protection guard

* System of balance of hand wheel force: a special system to adjust the balancing force during the section, making the rotation easier and smoother


* Item No.RH4336

* Section thickness range: 0.5- 100μ m

Setting values:

From 0.5-2μm in 0.5μm –increments

From 2-10μm in 1μm –increments

Form 10-20μm in 2μm -increments

Form 20-50μm in 5μm -increments

Form 50-100μm in 10μm -increments

* Trimming section thickness range:5-500μ m

From 5-10μm in 10μm –increments

From 10-100μm in 10μm –increments

Form 100-200μm in 20μm -increments

Form 200-500μm in 50μm -increments

* Horizontal specimen stroke:20 mm (28mm is optional)

* Specimen feed speed 1250/s (click) ,2000μm/s (keep pressing)

* Vertical specimen stroke: 60mm (70mm optional)

* Specimen retraction :12μ m

* Precision error: ± 5%

* Maximum section size: 50 × 45mm

* Dimension: 520 x 450 x 300mm

* Net weight: 30kg

* Power Supply: AC110V-220V 50Hz/60Hz
