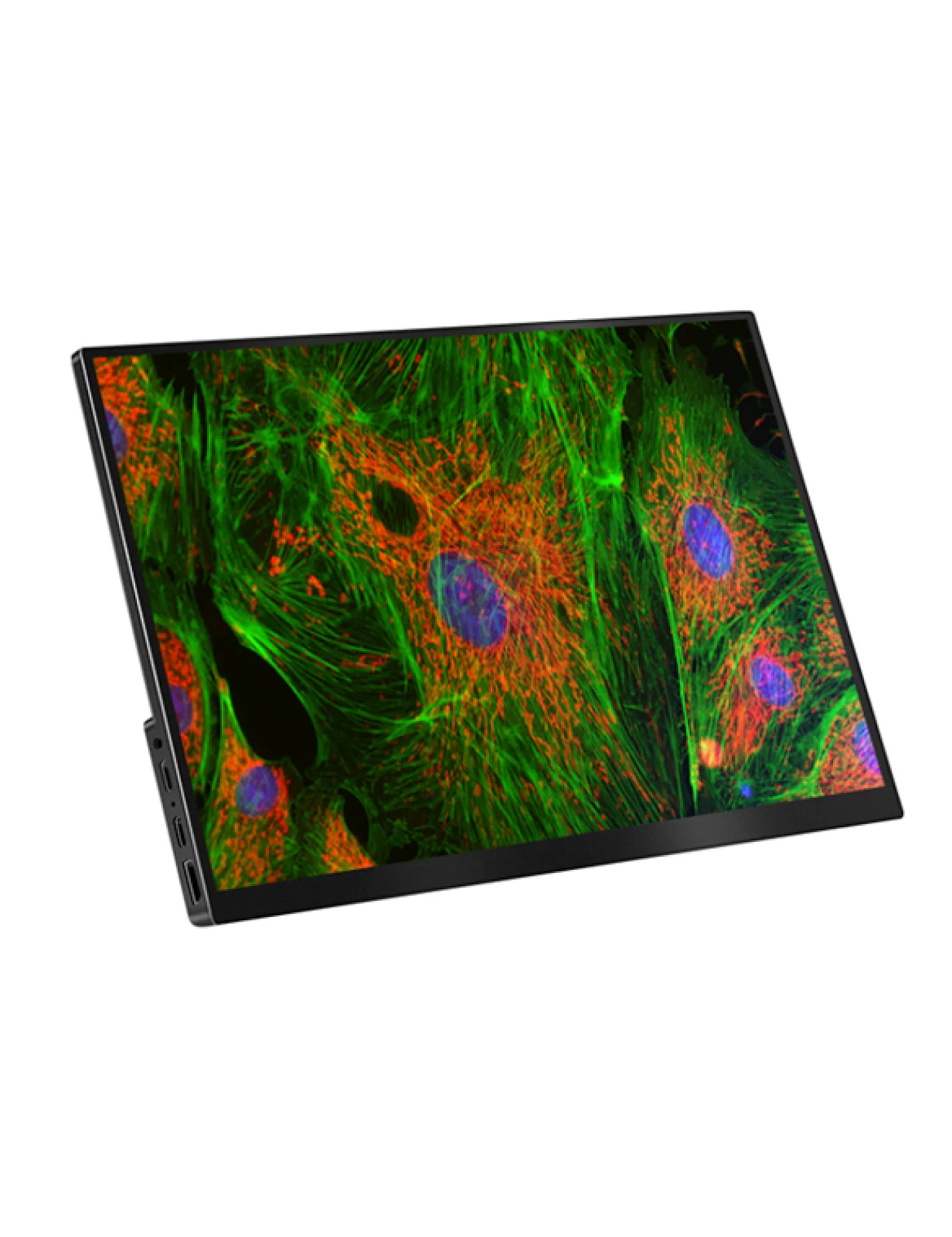

HD1080LCD HDMI LCD Displayer High Definition Display
HD1080LCD HDMI LCD Displayer High Definition Display

HD1080LCD is designed for BWHC and BHC4 series HDMI cameras and can be used for high definition display. It adopts Panasonic IPS LCD panel(Super TFT) to guarantee the wide view angle and high contrast. Together with BWHC and BHC4 series cameras, it could make the imaging & display solution simple, flexible and intuitive. Outstanding performance of HD1080LCD helps BWHC and BHC4 series HDMI cameras reach fast frame rate and excellent color.

The HD1080LCD’s basic characteristic is as follows
1. HDMI monitor;
2. Panasonic IPS LCD panel;
3. True 1080P;
4. High contrast ratio up to 1000:1;
5. LED backlight with 50000 hours long life time;
6. 11.6 inch active area.

Order CodeActive Area(Inch)Video FomatResolutionContrastColor(Million)View Angle
HD1080LCD11.6HDMI1080P1000:116.7IPS Full View
Basic Performance
LCD Panel Panasonic IPS LCD Screen(Super TFT)
Input Video FormatHDMI
Native Resolution1920 x 1080
Display Type16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD
Typical Contrast Ratio1000:1
Colors16.7 Million
Viewing Angle(L/R/U/D)IPS Full Vew
Active Display Area258mm(W) × 145mm(H)
Pixel Pitch0.134(W) X 0.134(H) mm
Brightness350 cd/sq.m ;400cdsq.m / Optional
BacklightLED Backlight, 50000 hours
Outline Parameter
Dimension281(L)*179(H)*15.6(W) mm
Operating Environment
Operating Temperature-15 Degree~55 Degree
Humidity Non CondensingOperating:10%-90%, Storage:5%-90%
Synchronization Range30-80 KHz Horizontal, 55-75 Hz Vertical
Power SupplyAC110V-220V /DC12V(1A )
Power ConsumptionMax 12W

Dimension of HD1080LCD

HD1080LCD + BWHC Camera with Leica Nikon Olympus Zeiss Microscopes
