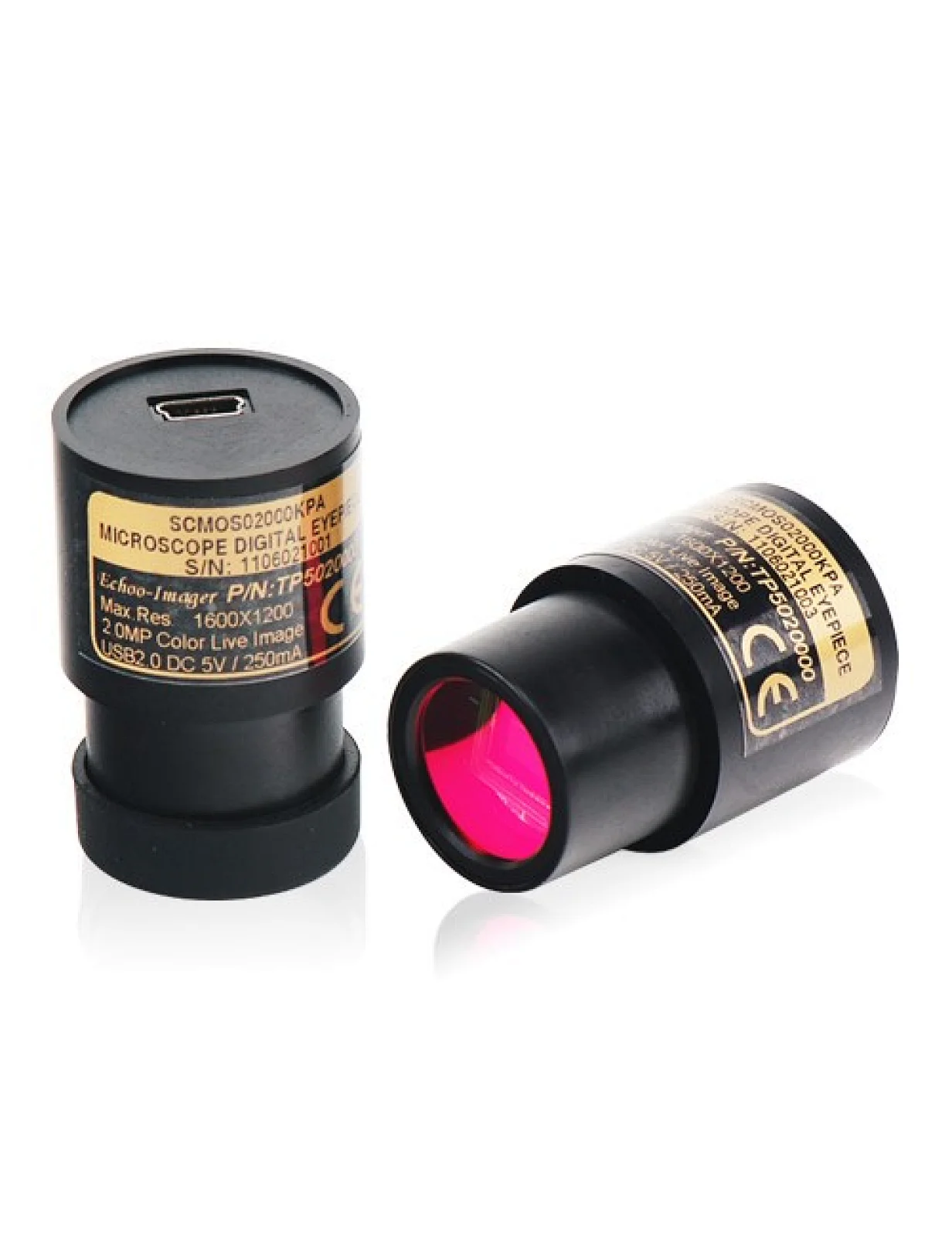

MDE2 Series USB2.0 CMOS Eyepiece Camera Economy Microscope Camera

Model NO.
MDE2
Quantity:
MDE2 Series USB2.0 CMOS Eyepiece Camera Economy Microscope Camera
Introduction

 MDE2 series are economic version with simple and compact structure CMOS eyepiece cameras(digital eyepiece). USB2.0 is used as the data transfer interface.
The MDE2 series come with high-speed USB2.0 interface and high frame rate video display, which keep the screen smooth without interruption;
Also the MDE2 comes with advanced video & image processing application ImageView;
The MDE2 can be widely used to transfer the monocular or binocular student microscopes to digital microscope.
With 23.2 to 30mm or 23.2 to 30.75 convert ring, the MDE2 camera can also change the stereo microscope to digital stereo microscope.
Feature
1. Microscope eyepiece camera with 23.2 diameter and compact size;
2. Easy to extend to C or CS- Mount camera with high quality lens(optional);
3. High-quality camera with Aptina CMOS sensor;
4. Auto white balance and auto-exposure; Brightness, contrast, chroma and saturation can be adjusted;
5. High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
6. With advanced video & image processing application ImageView;
7. Providing Windows/Linux/Mac OS multiple platforms SDK;
8. Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
Specification
Order CodeSensor & Size(mm)Pixel(μm)GResponsivity
Dynamic range
SNRmax
FPS/ResolutionBinningExposure
MDE2-500C5.0M/Aptina(C)
1/2.5“ (5.70x4.28)
2.2x2.2NA2@2592x1944
3@2048x1536
5@1600x1200
7.5@1280x1024
N/AAuto
MDE2-300C3.0M/Aptina(C)
1/2.7“ (4.506x3.379)
2.2x2.2NA3@2048x1536
5@1600x1200
7.5@1280x1024
N/AAuto
MDE2-200C2.0M/Aptina(C)
1/3.2“ (4.48x3.36)
2.8x2.8NA5@1600x1200
7.5@1280x1024
20@800x600

22@640x480
N/AAuto
MDE2-200BC2.0M/OV2710(C)
1/2.7”(5.76x3.24)
3x33.3V/ Lux-sec
69dB
39dB
25@1920x1080
30@1280x1024
30@1280x720
N/AAuto
MDE2-130C1.3M/Aptina(C)
1/3“ (4.60x3.70)
3.6x3.6NA7.5@1280x1024
12.5@1024x768
12.5@800x600
N/AAuto
MDE2-92C0.92M/BG0703(C)
1/2.7” (5.80x3.28)
4.5x4.55.8V/Lux-sec
65dB
43dB
25@1280x720
25@640x480
N/AAuto
MDE2-35C0.35M/Aptina(C)
1/4“ (3.58x2.69)
5.6x5.6NA30@640x480N/AAuto
C: Color; M: Monochrome;

Other Specification for MDE2 Camera
Spectral Range380-650nm (with IR-cut Filter)
White BalanceAuto White Balance
Color TechniqueN/A
Capture/Control API Native C/C++, C#/VB.NET, DirectShow, Twain and Labview
Recording System Still Picture and Movie
Cooling System* Natural
Operating Environment
Operating Temperature(in Centigrade)-10~ 50
Storage Temperature(in Centigrade)-20~ 60
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 5V over PC USB Port
Software Environment
Operating System Microsoft®Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB Port: USB2.0 High-speed Port
Display: 17” or Larger
CD-ROM

Dimension
The MDE2’s body is made of aluminum alloy blackening, ocular housing: Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other camera solutions.
