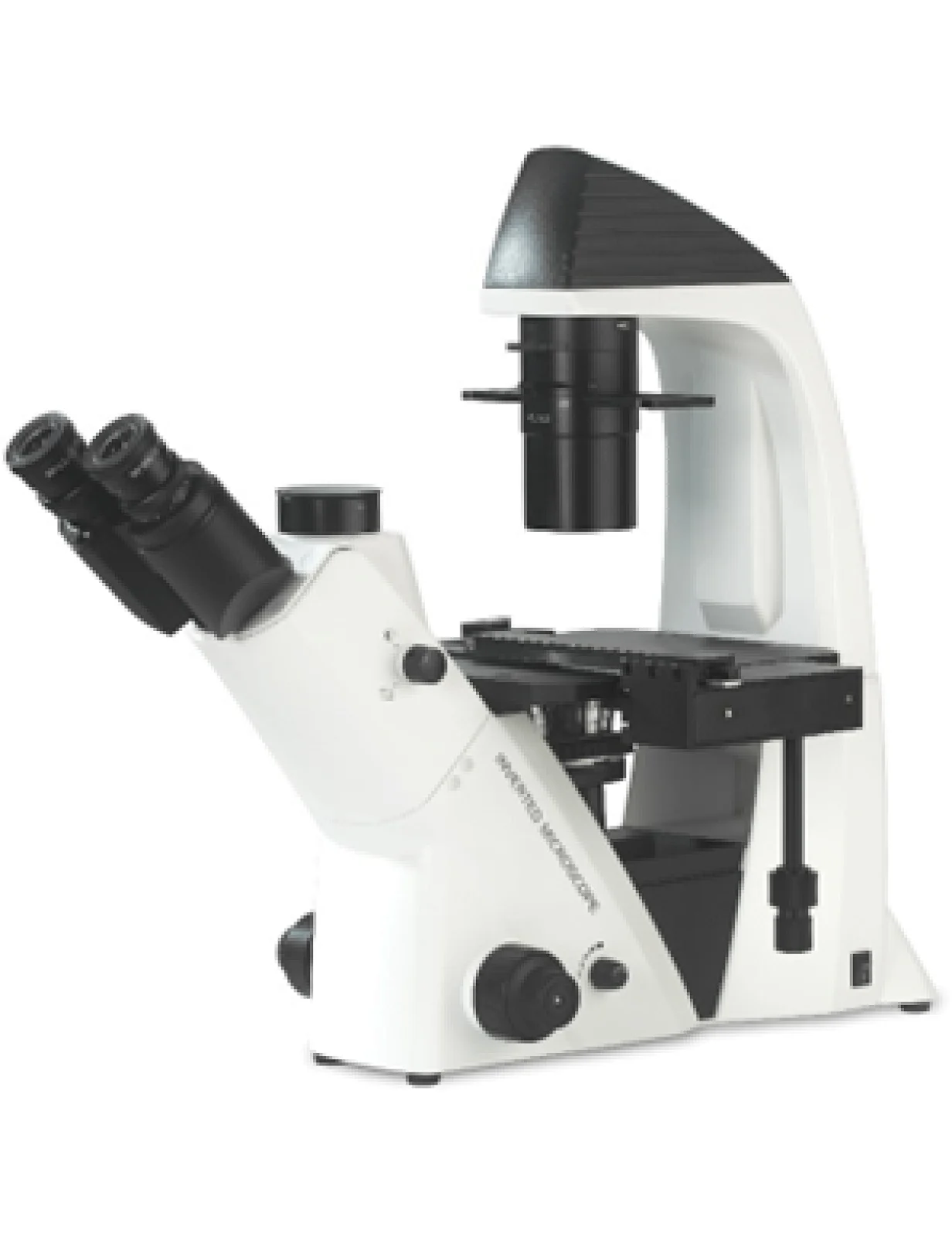

Professional Inverted Biological Microscope
New Design Professional Inverted Biological Microscope
BS-2093A
High-quality inverted microscope for advanced biological research with multiple accessories.
Quantity
New Design Professional Inverted Biological Microscope

Introduction

This Inverted Biological Microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features. This inverted biological microscope makes your work enjoyable. Digital cameras can be added to the trinocular head to take photos, videos and make measurement.

Feature

1. Excellent infinite optical system, Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.

2. More objectives can be installed on the large diameter quintuple nosepiece, easier to change objective.

3. Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece).

4. Long working distance condenser N.A. 0.30, Working distance: 72mm(with condenser), Working distance: 195mm (without condenser), available for extra high culture dishes.

5. Large size stage, convenient for research. Size: 210mm(X) × 240 (Y)mm, Moving range: 128mm (X) × 80 (Y)mm.

Mechanical stage available for 96 holes plate.

6. Culture Dish Holder

7. Knob of X-Y mechanical stage can be changed by left or right.

8. Infinite plan 4X phase contrast objective is available.

Application

This Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Specification

Item

Specification

RM1292

BS-2093A

Optical System

Infinite Optical System

Viewing Head

Seidentopf Trinocular Head, Inclined at 45°, Interpupillary Distance 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece), Eyepiece Tube Diameter 30mm

Eyepiece

Wide Field Eyepiece WF10×/ 22mm

Wide Field Eyepiece WF15×/ 16mm

Wide Field Eyepiece WF20×/ 12mm

Objective

Long Working Distance Infinite Plan Achromatic Objective

4×/0.11, W.D.=12.1mm

10×/0.25, W.D.=8.3mm

20×/0.40, W.D.=7.2mm

40×/0.60, W.D.=3.4mm

Long Working Distance Infinite Plan Achromatic Phase Contrast Objective

4×/0.10, W.D.=9.2mm

10×/0.25, W.D.=8.3mm

20×/0.40, W.D.=7.2mm

40×/0.60, W.D.=3.4mm

Nosepiece

Backward Quintuple Nosepiece

Condenser

Long Working Distance Condenser, N.A. 0.3, Working Distance 72mm (with condenser), 195mm (without condenser)

Centering Telescope

Centering Telescope (Φ30mm)

Phase Annulus

10×, 20×, 40× Phase Annulus Plate

4× Phase Annulus Plate

Stage

Plain Stage 210(X)×240mm(Y), round slide plate: Φ110mm

Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang: 128mm×80mm

Petri Dish Holder Φ65mm

Petri Dish Holder Φ54mm

Petri Dish Holder Φ35mm

Blood cell counter Holder

Focusing

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 10mm

Koehler Illumination

6V/30W Halogen Lamp, Brightness Adjustable, input voltage: 100V-240V

5W LED Lamp, Brightness Adjustable, input voltage: 100V-240V

Filter

Blue Filter, Diameter 32mm

Green Filter, Diameter 32mm

Amber/Grey Filter, Diameter 32mm

C-mount

0.5× C-mount Adapter (focus adjustable)

0.75× C-mount Adapter (focus adjustable)

1× C-mount Adapter (focus adjustable)

Epi-Fluorescent Attachment

Epi-fluorescence attachment with 100W mercury lamp and B, G fluorescent filters, field diaphragm, center adjustable.

Epi-fluorescence attachment with 5W LED lamp and B, G fluorescent filters, field diaphragm, center adjustable.

V, UV fluorescent filters

Packing

1carton/set, Size: 66×59×33cm, GW: 18kgs, NW: 14kgs

2cartons/set, carton 1 Size: 52×47×49cm, GW: 18kgs, NW: 14kgs; carton 2 Size: 52×47×24cm, GW: 6kgs, NW: 4kgs

1carton/set, Size: 52×47×49cm, GW: 23kgs, NW: 18kgs

Note: ● Standard Outfit, ○ Optional
