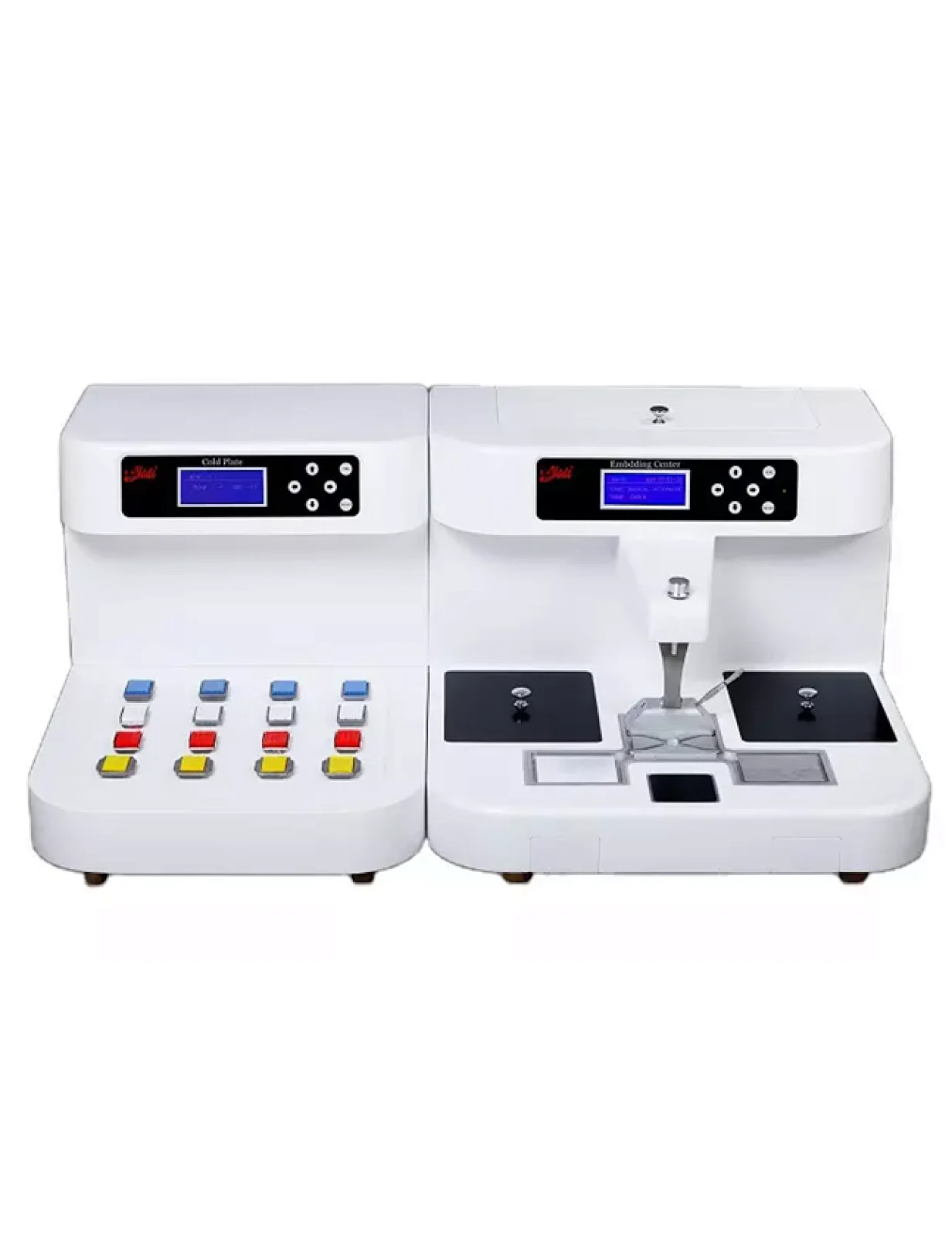

The Newest High Technology Tissue Embedding Center


* Integrated design, fast heat up, high safety factor, long working life, good sealing properties and no wax dripping situation

* The newest high technology and Button Panel Control, new type of heating material

* The machine is made up of embedding system, cooling part. the design can be flexibly selected between embedding machine and cooling part.

* Memory function and Auto Recover feature, Automated control system make it possible for presetting the Embedding system or Cold plate switch on / off with setting time and temperature on schedule

* Special nano technical make it heat up quickly and equably.

* The LCD display can show the temperatures of the paraffin bath, thermostatic bath and paraffin nozzle. So the user can operator it easily.

* Low voltage lighting systems and Adjustable wax flow speed

* Small cold spot in working table.

* Large capacity paraffin bath can contain enough paraffin for use at one time.

* The heating function with multilevel security protection system.

* There are 3 heating holes for forceps in two side of the paraffin nozzle.

* Magnifying glass with lamp is optional accessory

* Collection drawer to collect paraffin from working table


* Item No.RH3210

* Capacity of the paraffin pan: 6000 ml.

* Temperature range of Paraffin pan: 0 ~99

* Temperature range of working table: 0 ~99

* Temperature range of left and right warming box: 0 ~99

* Freezing temperature range of cold plate: 0 ~ -20

* Freezing temperature range of small cold spot in working table : 0 ~ -10

* Control mode: manual touch plate or foot switch

* About 120pcs of molds or 140pcs cassettes for each hot reservoir

* Capacity of Cold plate: About 50-80pcs of Tissue mold or cassettes

* Environment temperature: 0~ 40

* Time control: Switch on and switch off time of the machine is set in 24 hours optionally.

* Nominal voltage: AC110V-220V±10%.

* Rated frequency:50Hz/60Hz

* Power consumption: (dispenser part)10A /1800W, (cold plate part)5A/ 130W

* Dimension: Embedding center (60x66x42cm), Cold plate (47x66x42cm)

* Gross /Net Weight: 50/25kg (for Cold plate) 115/60kg (for YD-6K)
